TrueRC – 1.2-1.3 GHz Gatling

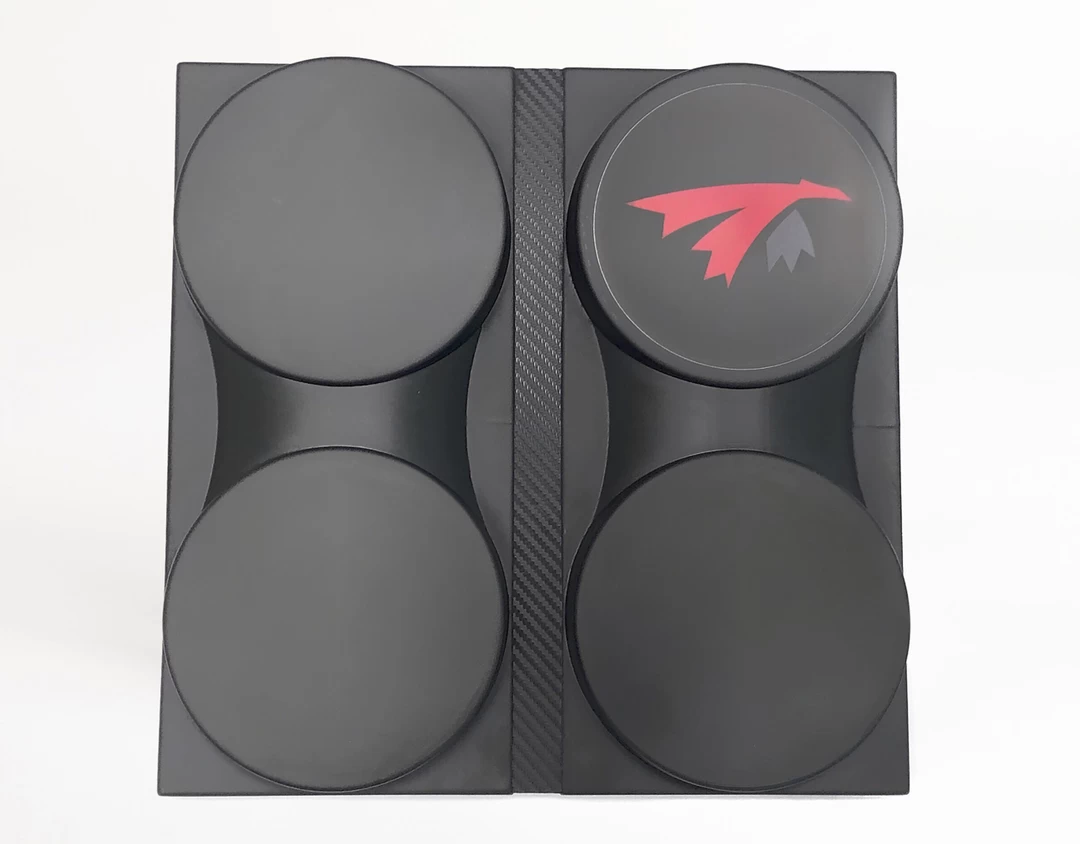

The new Gatling 1.3 use our latest redesign of the crosshair antenna. Smaller footprint, lighter weight and same great performance as the original. A 1/4-20 mounting point in the back, make it super easy to attach to your ground station.

Specifications

• Frequency: 1.200-1.360GHz
• Gain: 16 dBic
• Polarization: RHCP
• Radiation efficiency : 98%
• Beam-width*: 66deg
• Beam-width @-3dB**: 32deg.
• Connector: SMA male
• Dimension: 360mm x 360mm x 40mm
• Mounting: Standard 1/4-20 thread
• Weight: 650g

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
