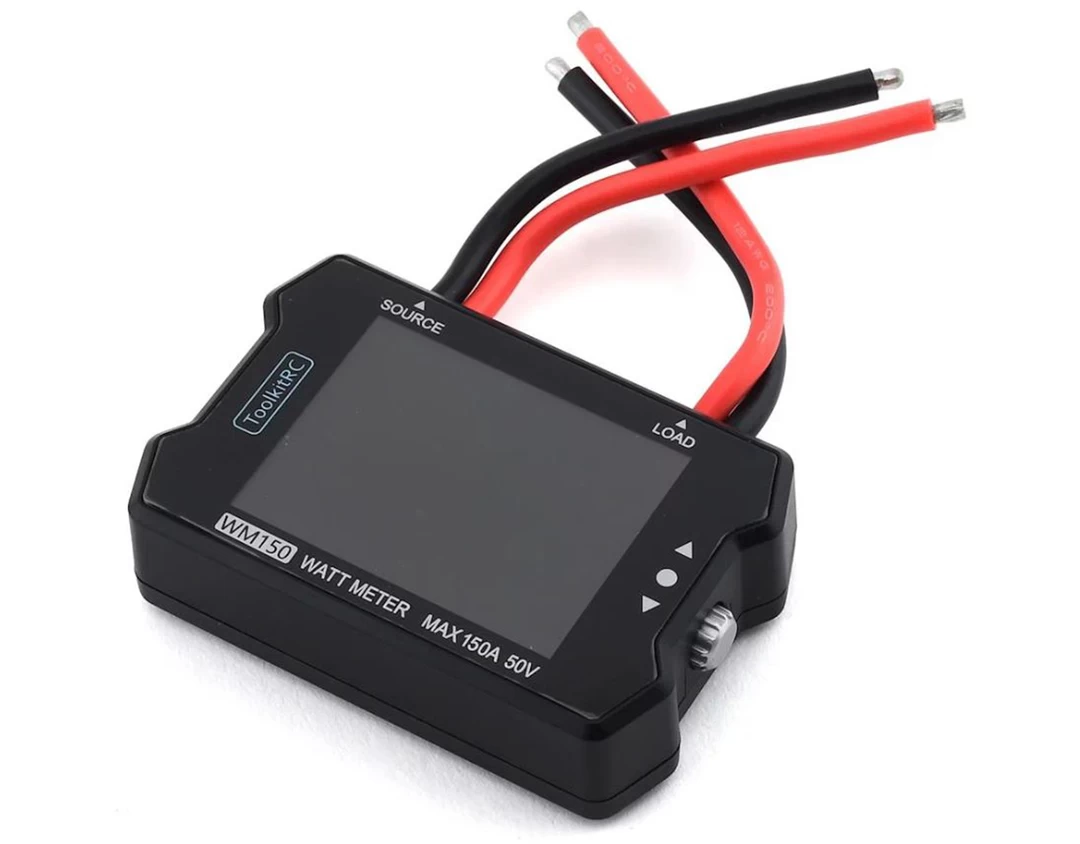

ToolKitRC WM150 Watt Meter – 150A

The WM150 Power & Watt Meter from Toolkit RC is an incredible elegant and powerful modern design on standard power meters used in the R/C world. Featuring a full color 2.4 inch screen, and critical data statistics, the WM150 will surely be your new favorite tool to ensure you’re getting the most out of your electric set up.

Features

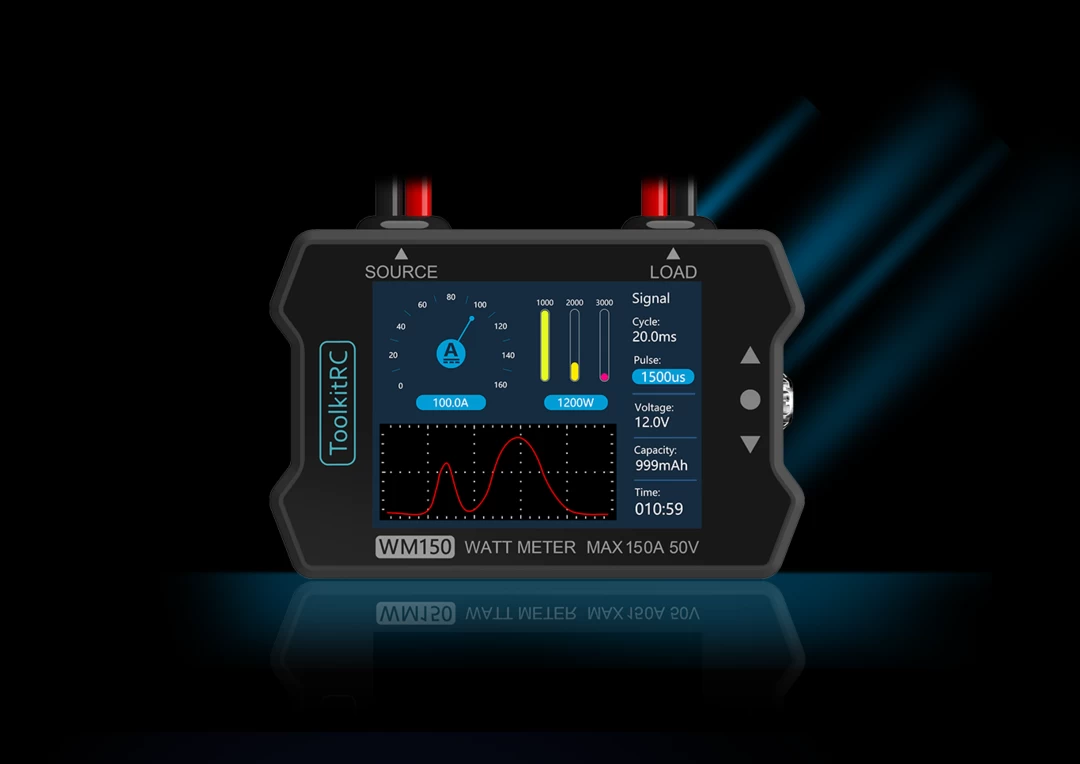

• 2.4 Inch Color Display
• Adjustable PWM via Knob control
• Support for up to 50V input
• 150A Maximum Current rating
• Firmware upgradeable

Specifications

• Input Voltage: 1-50V @ 150A Maxinum Amperage
• Input USB: 5.0V @ 1A Firmware Upgradeable
• Signal Port: 1000-2000uS @ 50Hz
• LCD Display: 2.4 inch 320×240 resolution
• Dimensions: 80x54x23mm
• Weight: 82g

Note: The PWM output range of the WM150 is 1000us-2000us. For unsupported ESCs, please note that if the throttle range is not correct, the throttle signal will not be recognized.
