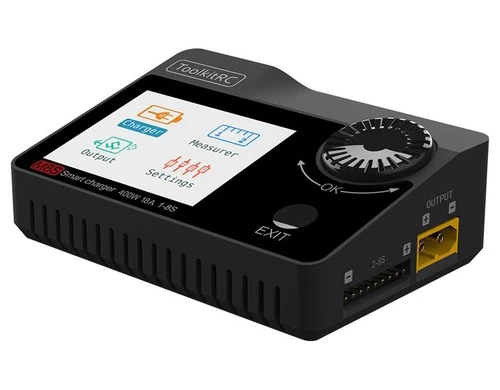

ToolKitRC M8S 400W 18A 1-8s Battery Charger

The ToolKitRC M8S is a powerful, yet compact charger. It has many extra functions besides charging such as servo testing, RC control testing, and a cell checker!

Features

• 2.4″ Color Screen
• Battery Charger
• Cell Checker
• Servo Tester
• PWM,PPM.SBUS Input/output Receiver & Flight control tester
• Viable AMp/volt DC Power supply (Required external DC input)

Specification

• Input: 7-30V @MAX18A
• Battery Type: LiPo LiHV LiFe Lion @ 1-8S NiMh @1-20S Pb @1-12S
• Bal Current: 800mA @2-8S
• Accuracy: ±0.01V
• Charging Power: 0.1-18A @ 400W
• Discharging Power: 0.1-18A @ 400W
• Recycle Mode: 0.1-5A @ 20W Normal Mode
• USB: 2.1A @ 5.0V upgrade
• Size: 98mm*68mm*35mm
• Weight: 170g

Measuring

• PWM 880us-2200us @20-400Hz
• PPM 880us-2200us*8Ch @20-50hz
• SBUS 880us-2200us*16ch @20-100Hz
• Voltage 1.0V-5.0V @1-8S
• IR 1-100mR @1-8S

Output

• PWM 500us-2500us @20-1000Hz
• PPM 880us-2200us*8ch @50hz
• SBUS 880us-2200us*16ch @74Hz
• Power 1-18A @ 1-30V Mode: CC+CV
• Display:LCD TFT 2.4 inch 320*240 resolution

Recommended

• RMRC 400w 12v Power Supply
• XT60 Charging Squid
• Note: We have been notified about a compatibility issue with the 24V 400w power supply. We recommend the 12v 400w with the M8S.
