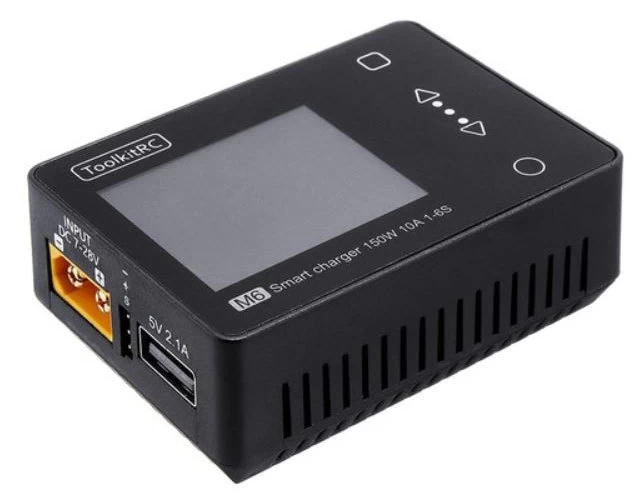

ToolKitRC M6 V2 150W 10A 1-6s Micro Battery Charger – Black

The ToolKitRC M6 V2 is the world’s smallest 150w color screen charger! With a 150w and 10A charge capability at its heart, the M6 also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control. It is super useful on your bench, perfect for your flying bag, and small enough to fit into your pocket!

Features

• Battery Charger
• Cell Checker
• Servo Tester
• PWM,PPM.SBUS Input/output & Receiver tester
• Viable AMP/volt DC Power supply (Required external DC input)

Specifications

• Lithium battery cut-off voltage can be set (TVC function)
• Measure battery voltage, internal resistance, balance
• Measure PWM / PPM / xBUS signal values, Accuracy 1ms
• Output PWM / PPM / xBUS standard signal, Accuracy 1ms
• Customizable 1-28V constant voltage, 1-10A constant current
• Multi-language optional
• USB [email protected] Output，for Mobile devices
• Udisk firmware upgrade (Slave device)

Charger

• Input voltage: 7.0-28V  @MAX 12A
• Type of battery
  • Lipo  LiHV  LiFe Lion @1-6S
  • NiMh @1-16S   Pb @1-10S
• Charge power: 150W @MAX 10A
• Discharge power
  • 150W  @MAX 10A Recycle mode
  • 8W @ 2A Normal mode
• USB: 2.1A @5.0V  or  Upgrade
• Dimensions: 68*49*26 mm
• Weight: 80g
• LCD: 1.8inch TFT RGB, 160*128 Pixel
• User Manual
• Firmware (Bottom of page)

Includes

• 1x ToolkitRC M6 150w 10A Multi-function Pocket Charger

Recommended

• RMRC 12V 8A Power Supply
• RMRC Squid Charge Harness
