The Cube Purple Set

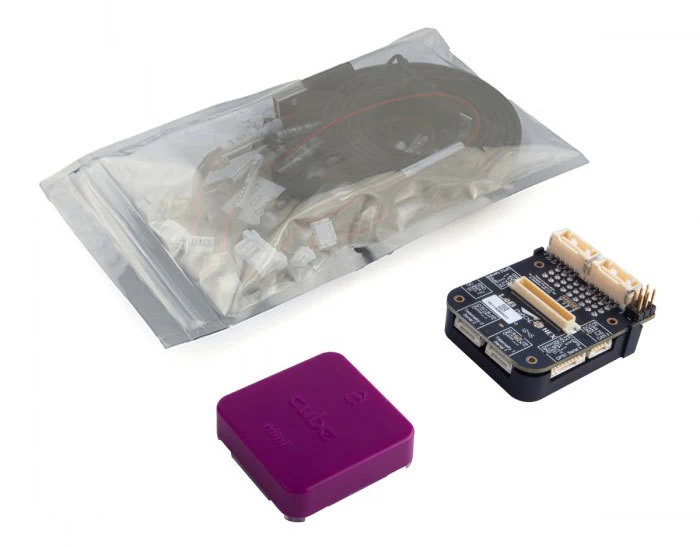

The Cube Purple Set includes a Purple Cube, a Mini Carrier Board, and a Mini Carrier Board Cable Set.

This is a compact flight controller from Hex Technology, makers of the popular Pixhawk 2.1 Cube.

INSIDE THE PURPLE CUBE

An STM32F427 Rev 3 Flight management unit. (where the flight controller lives.)
An STM32F100 I/O processor with pass through capabilities for failsafe. (deals with the Receiver and outputs )

IMU’s
1 Fixed 10 Axis IMU on the main Main board. (MPU9250 3 axis Accell, 3 axis gyro, and 3 axis mag, MS5611 Barometer)

Mini Carrier Board has the standardized DF17 connector which allows user to connect it to every version of the Cube flight controller. With smaller size and almost the same capability with Pixhawk 2.1 standard carrier board, it can better fit-in to those applications which have size limits. Also, it can be equipped with the Cube Mini to better fulfill the requests from customers. Functionality of Carrier Board:
Dual power input (for redundant power, automatic switch to another power when one fails)
Power distribution (limit the current at each connector, avoiding overloading when one device draws too large current)
Voltage protection (over or under voltage protection, the circuit will be shut down if the voltage exceeds the limit)

Set Includes:

• PixHawk 2.1 Cube Purple Mini Flight Controller
• Mini Carrier Board for Pixhawk 2 Cube
• PixHawk 2.1 Mini Carrier Board Cable Set

(Items packaged separately)
