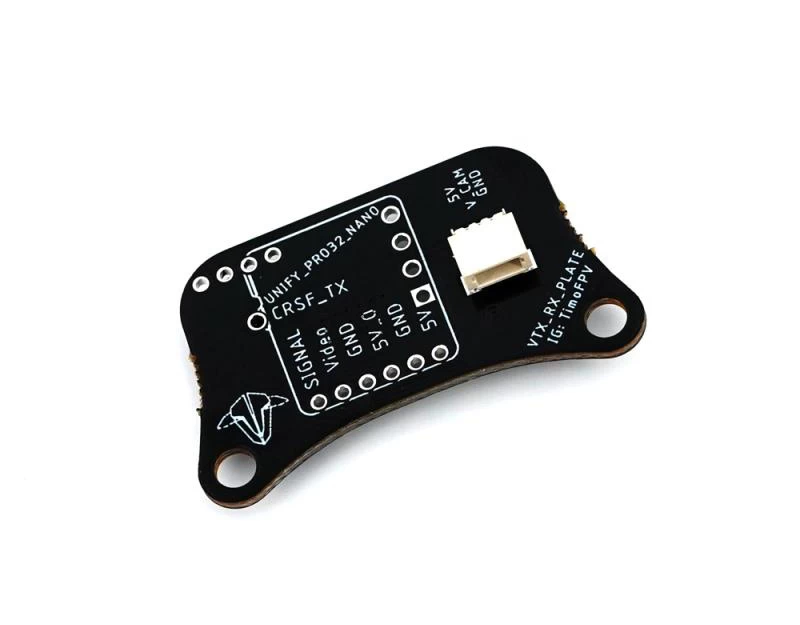

TBS VTX Rx Plate

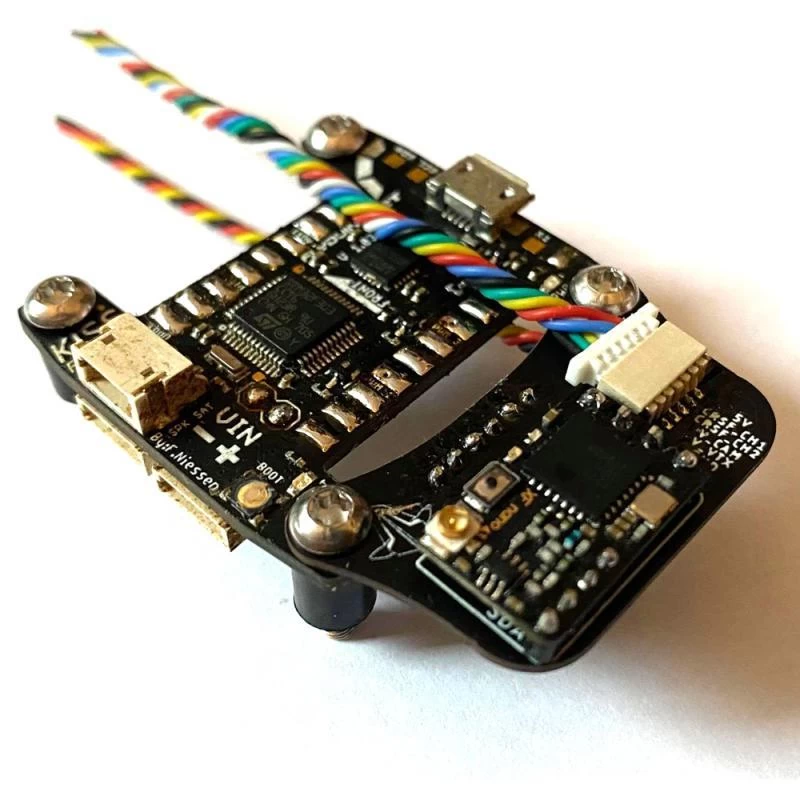

The TBS VTX RX Plate is designed to be mounted on the stack standoffs with a 30x30mm mounting pattern. It comes with plugs and cables for easy building and maintenance.

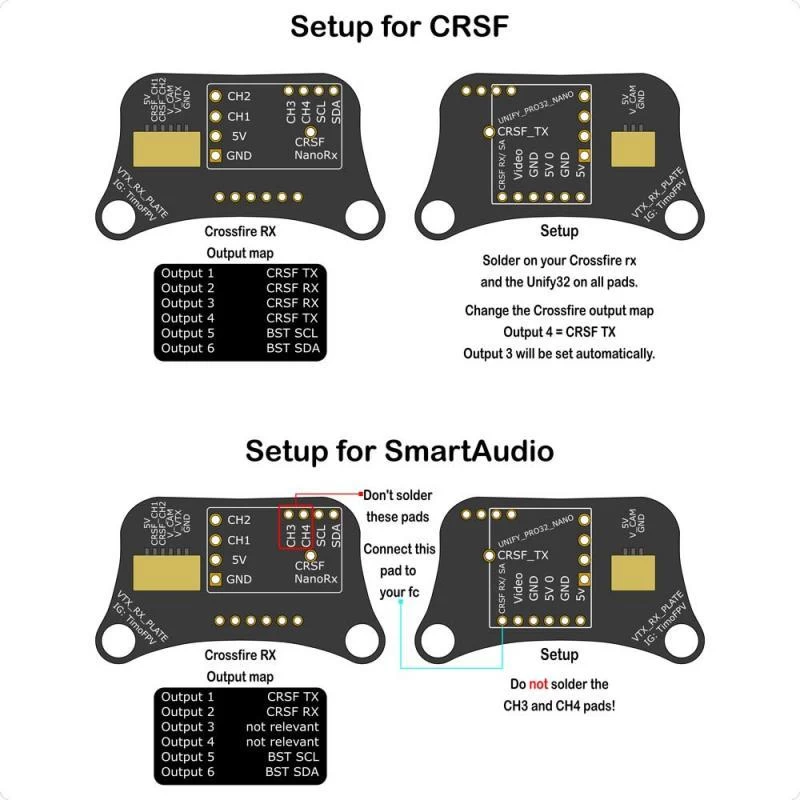

*CRSF TX / RX between the VTX and RX are internally wired if you connect all the pins.

Designed by TimoFPV

SPECIFICATION

• Weight: 1.7g
• Mounting Holes: M3
• Mounting Holes Distance: 30mm
• Compatibility: TBS Unify Pro32 Nano, TBS Crossfire Nano RX

INCLUDES

• 1 x Mounting Plate
• 3 x Pin Headers
• 1 x 3pins plug with silicone wires
• 1 x 6 pins plug with silicone wires
