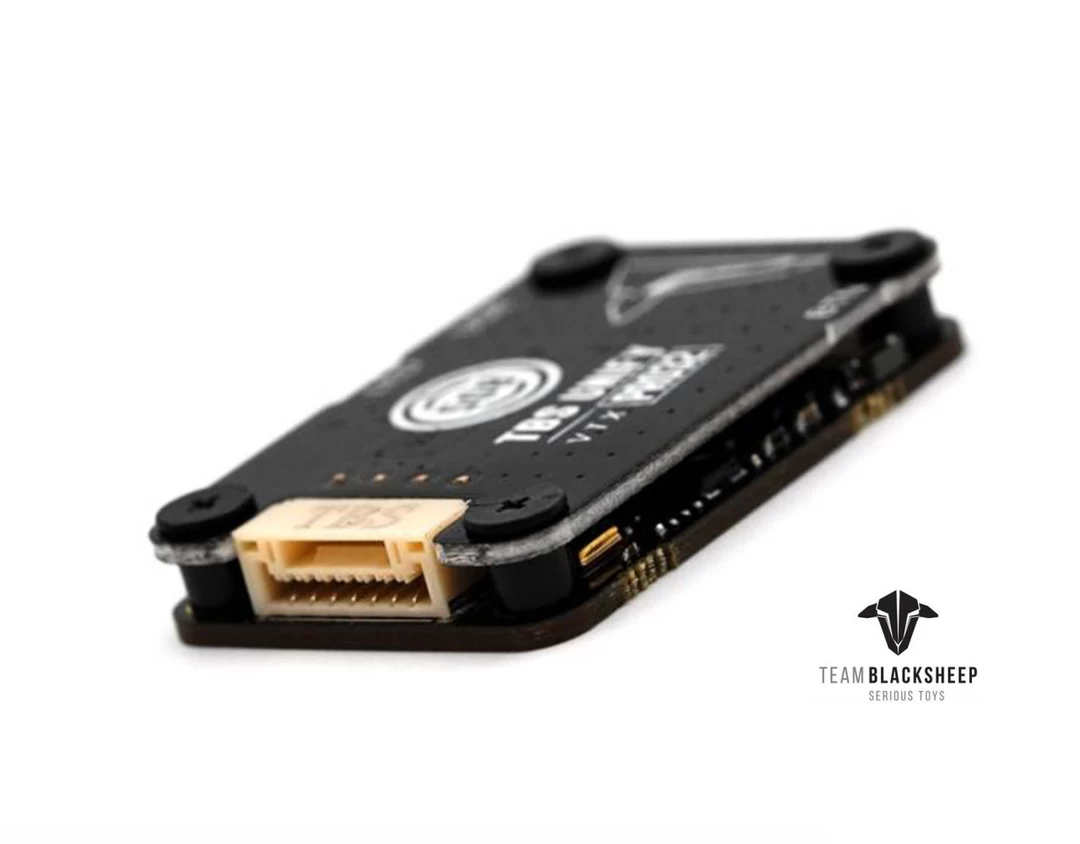

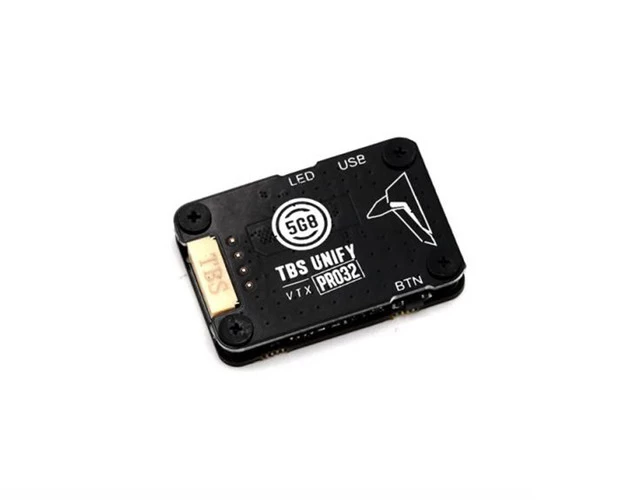

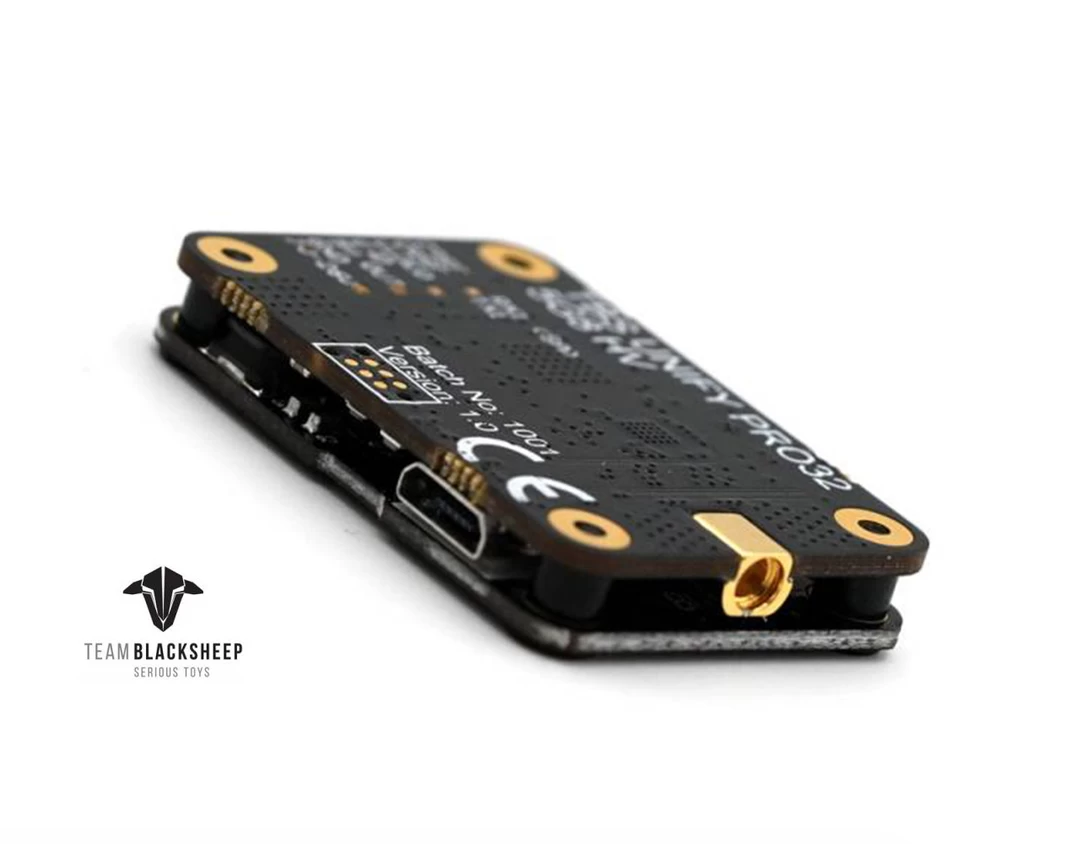

TBS Unify Pro32 HV 5.8GHz MMCX Video Transmitter

The go to in video transmitters the TBS Unify Pro just got a major upgrade! Welcome the Team BlackSheep Unify Pro32 HV VTX! The Unify Pro32 HV is designed to be future proof with the ability for over the air updates. Double layer design allows for better cooling and durability keeping your VTX safe in hard crashes. MMCX antenna for an extra secure connection between VTX and antenna. Extended output power for super clean video during those longer distance flights. Get yours today!

Features

• Smart Audio 2.1 & Crossfire
• Double-decker design for insane cooling and durability
• 1000mW output power
• Ultra-clean transmission (up to 16 pilots at once!)
• PitMode – power up your quad during a race. Now with team-race capability!
• Easy OSD, FC and RC channel changes, with fallback button menu
• Robust RF amplifier allows powering up without antenna for hours!
• Clean powerup and video switching
• CE certified

Specifications

• Dimensions: 37 x 25 x 5.8mm
• Antenna Connector: MMCX
• Video Format: NTSC/PAL
• Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 30dBm+ (1000mW+)
• Operating Voltage: 6V – 25V (2 – 6S)
• Operating Temperature: watch for normal airflow
• Video Input Impedance: 75 Ohm
• Weight: 8.7g

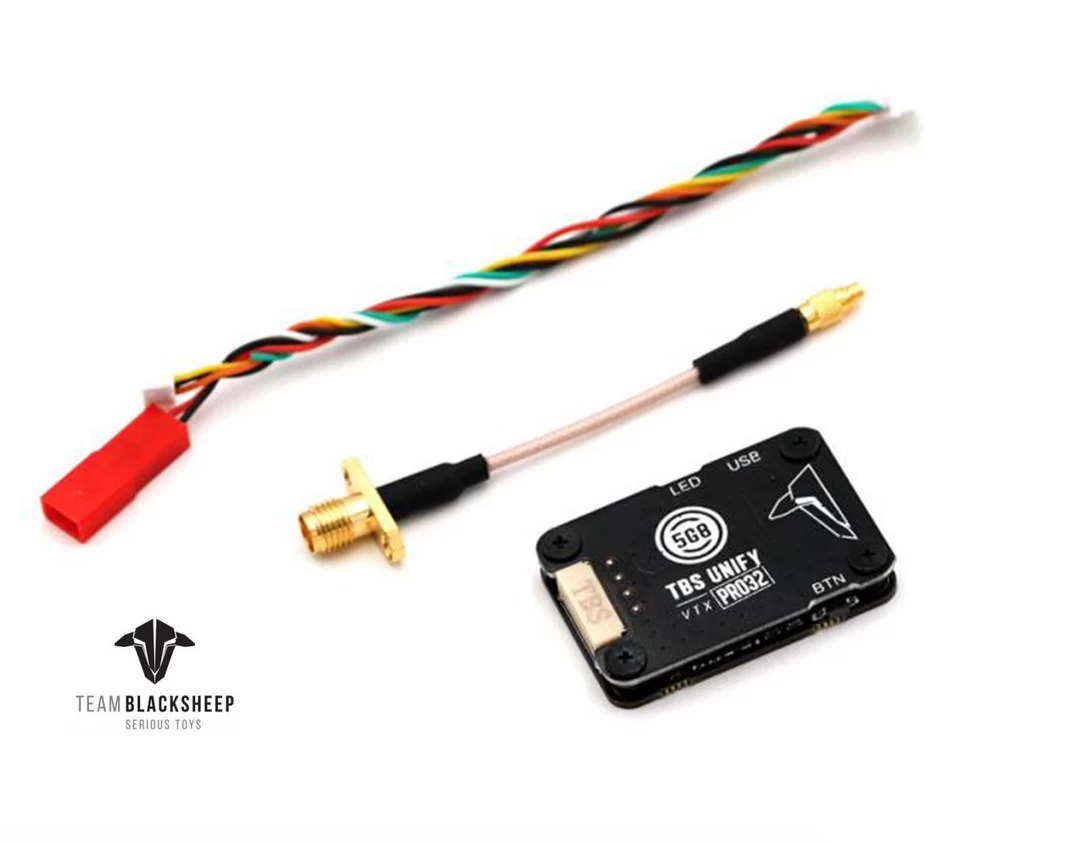

Package Includes

• 1x TBS UNIFY PRO32 5G8 HV Video transmitter
• 1x Silicone cable (ends pre-tinned)
• 1x MMCX to SMA pigtail

Manual Download TBS Unify Pro32
