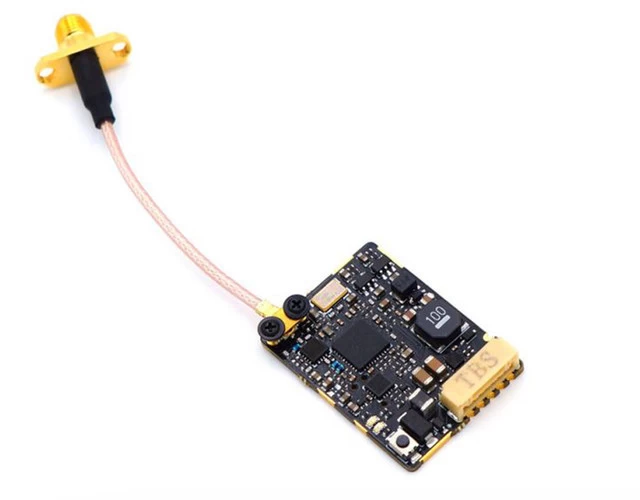

TBS Unify Pro 5.8GHz HV UFL SMA Video Transmitter

The go to in video transmitters for drone pilots the Team Black Sheep Unify Pro HV Video Transmitter! 25mW to 800mW perfect for drone racing, perfect for pushing through the video noise when bando ripping. Full smartaudio control allowing you to make changes on the fly through your radio or in the OSD of your goggles. The small form factor enables the Unify Pro to fit in almost all builds. Get yours today!

Specifications

• Operating Voltage: 2S – 6S
• Supply current: up to 600mA
• Operating Temperature: watch for normal airflow
• Audio carrier Frequency: 6.5 MHz
• Video Input Impedance: 75 Ohm
• Weight: 7g (with SMA, without antenna)
• Input Connector: JST GH 7pin (after July 2018)
• Antenna Connector: SMA Female Socket with screw mounting holes
• Video Format: NTSC/PAL
• Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)

Package Includes

• 1X TBS Unify Pro HV UFL SMA Video Transmitter
• 1X VTX, camera, power cable
