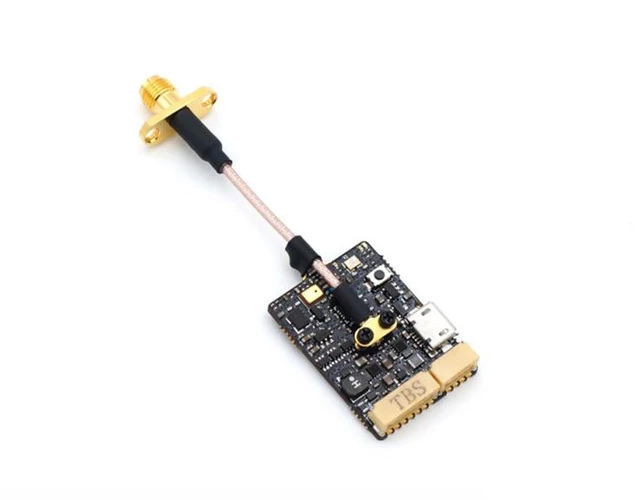

TBS Unify EVO 5.8GHZ Video Transmitter

Welcome another new innovation from TeamBlackSheep the TBS Unify EVO Video Transmitter. The biggest feature of the Unify EVO is the ability to read barcodes! No need to worry about having your VTX transmitting when trying to switch channels or output power during a race while you are in the pits, just point you camera at the barcode and your VTX will move to the corresponding channel and output power. A USB connector has also been installed for future updates so keep your eye out on what they do next. Get yours today!

CRSF, SMARTAUDIO 2.1, PWM, PITMODE

CRSF is the defacto standard in FPV and racing drones, so it makes sense that this video transmitter can both understand as well as speak CRSF. For compatibility, the VTx also speaks SA 2.1 and has the teamrace-friendly pitmode feature. PWM controls allow you to use the VTx with any radio and product. For example, you may have it on your R/C cars, R/C motorcycles or other devices that don’t have flight controllers or Crossfire and control the VTx button with a switch or button you have on the radio.

Specifications

• Operating Voltage: 6V – 26V (2S – 6S)
• Supply current: (25mW) ~ 0.11A | (100mW) ~ 0.13A | (400mW) ~ 0.18A | (full power) ~ 0.24A
• Operating Temperature: watch for normal airflow
• Video Input Impedance: 75 Ohm
• Weight: 7g
• Dimensions: 30 x 23 x 5.5mm
• Antenna Connector: u.FL socket
• Video Format: NTSC/PAL
• Audio: Microphone included
• Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 29dBm (800mW)

Package Includes

• 1x TBS UNIFY EVO 5G8 Video transmitter
• 1x u.FL pigtail SMA
• 1x Power, Camera and CRSF cables

Download Info

• TBS Unify EVO Manual
• Barcode List
