TBS M8.2 GLONASS GPS Unit For Inav And Betaflight

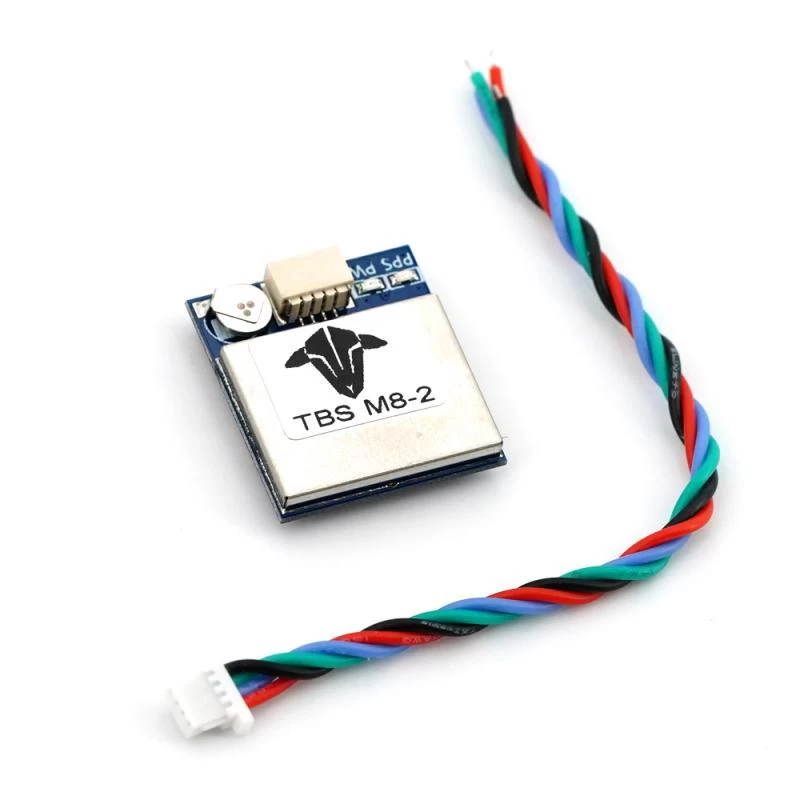

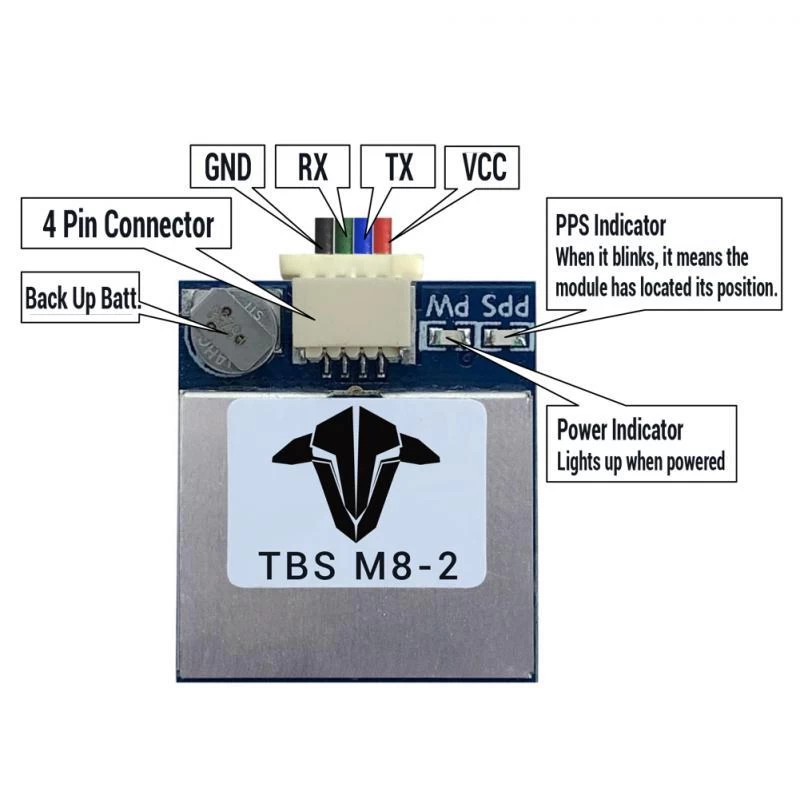

TBS M8.2 GLONASS GPS Unit

Get the best signal with the latest GPS receiver from TBS! New and Improved!

Precision GPS / Glonass module for Betaflight, inav, or Pixhawk.

Specifications

• Chipset – ublox UBX-M8030
• Flash memory for saving configuration.
• Frequency – L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ
• Baud Rate – 4800bps-921600bps (Default – 9600bps)
• Channel – 72ch
• Sensitivity – (Tracking: -164dBm) | (Capture: -159dBm) | (Cold Start – 147dBm)
• Cold start – Average 26 seconds
• Warm start – Average 24 seconds
• Hot start – Average 1 second
• Accuracy – (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
• Maximum height – 50000m
• Maximum speed – 500 m/s
• Maximum acceleration – ≦ 4G
• Refresh Rate – 1-10 Hz
• Size – 20 x 22 x 6 mm
• Weight – 5.2g
• Input Voltage – 3.3V-5V
