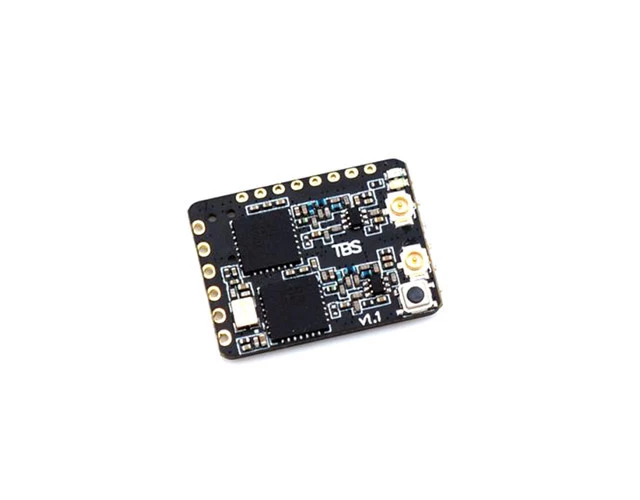

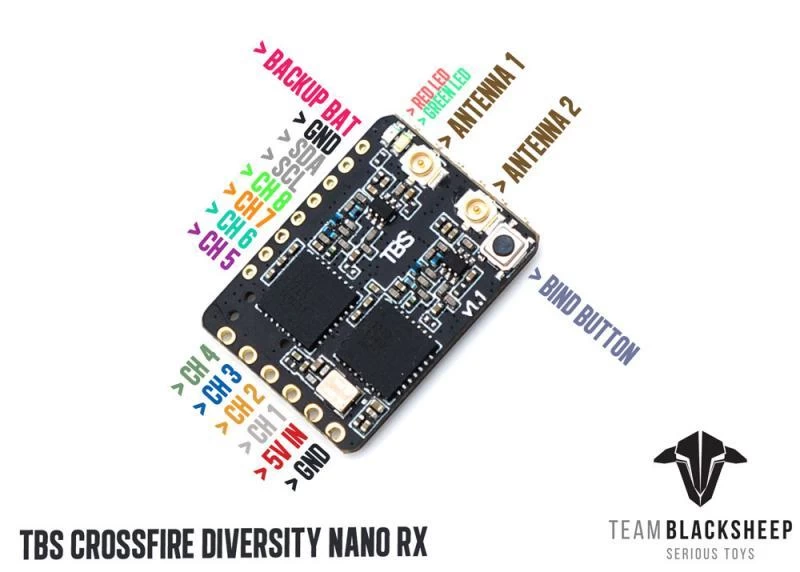

TBS Crossfire Diversity Nano RX

Before binding your receiver you must update your Crossfire TX to at least V2.88 or above.

Welcome the newest edition to TeamBlackSheep’s receiver lineup, the TBS Crossfire Diversity Nano RX. This is the upgraded version to the nano receiver we all know and love, now with a more reliable link for better range and included diversity! Never worry about your receiver link again! Now including beacon mode and FLARM! The TBS Crossfire Diversity Nano RX is the perfect choice to add to your long range arsenal. Get yours today!

Beacon Mode

Ever lost a plane and spent hours looking for it? Enter the TBS CROSSFIRE beacon mode. The diversity nano receiver comes with a LiPo battery port where you can connect an optional backup port. It will keep the receiver running for a full day after all onboard electronics are gone. It will be screaming for help by giving you its GPS coordinates, and also blasting out RF beacon signals that will allow you to pinpoint its location even if no GPS was ever on your airplane.

FLARM

FLARM is a traffic awareness and collision avoidance technology for General Aviation, light aircraft, and UAVs. The TBS Crossfire Diversity Nano RX’s will be able to broadcast on the FLARM network for free, receiving drone and general aviation traffic information on your OSD requires additional licenses. Paired with the CORE PRO or FPVision and TBS GPS, you can get a virtual radar showing other FLARM devices around you (~3km range).

This allows safe navigation in crowded airspace or nail biting proximity formation flights with your buddies! Full scale aviation will be alerted if your drone is on a collision course with them, and vice versa.

Specifications

• Weight: 1.8g (receiver only)
• Size: 24mm x 18mm
• Requires: Firmware V2.87

Package Includes

• 1x TBS Crossfire Diversity Nano Receiver
• 2x TBS Crossfire Micro Receiver Antenna
• 1x Spare shrink tube
• 14x 30awg silicon connection wires
