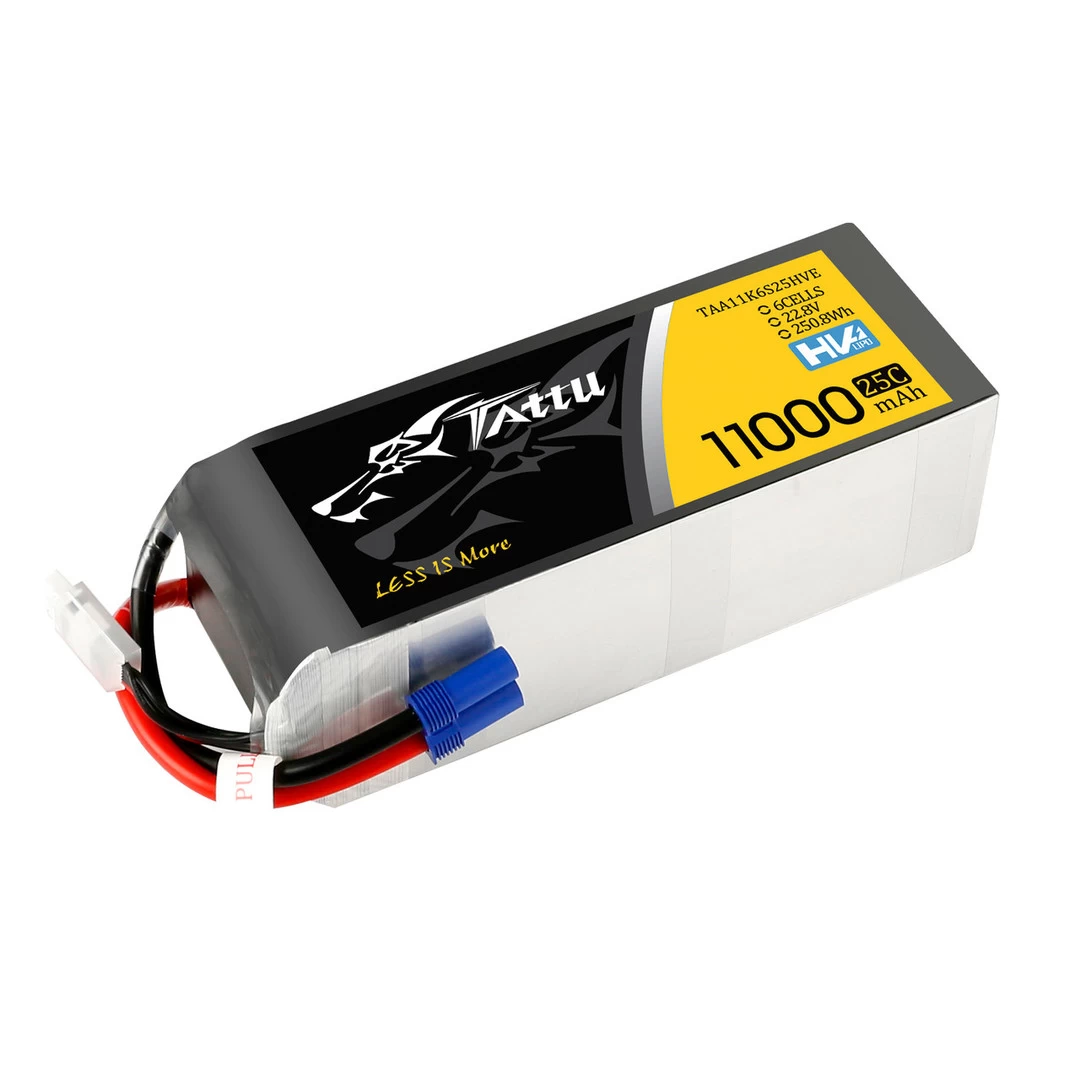

Tattu 22.8V 25C 6S 11000mAh Lipo Battery With EC5

TATTU is a popular battery for drones, The Tattu 11000mAh 6S 22.8V 25C LiPO battery pack with EC5 plug professional aerial photography equipment and VTOLs. The high voltage can deliver more power to the drone.

Less is more as the slogan: the single cell is 22000mAh, each cell connected in series, it is less in the whole industry, but TATTU is committed to providing more clients the perfect flight experience, no matter in the field of aerial photography, aerial video, aerial mapping, aerial inspections, agriculture, etc.

Features:

– Stable automatical stacking technology makes the single cell capacity can reach 11000mAh.
– The most strict single cell capacity, voltage, resistance, discharge curve matching process.
– Superior Japan and Korea Lithium Polymer raw materials.
– Almost 200Wh/kg energy density.
– At least 150 times cycle life.
– Local after-sales service (located in Dublin, CA)

Specifications:

• Minimum Capacity: 11000mAh
  – Configuration: 6S1P / 22.8V / 6 cells
  – Discharge Rate: 25C
  – Max Burst Discharge Rate: 50C
  – Net Weight(±20g): 1300g
  – Dimensions: 178mm Length x 65mm Width x 56mm Height
  – Balancer Connector Type: JST-XHR-7P

Balancer Connector Type:	JST-XHR-7P
Brand:	Tattu
Capacity(mAh):	11000
Balancer Wire Length(mm):	65
Configuration:	6S1P
Connector Type:	EC5
Discharge Rate (C):	25
Height(±2mm):	56
is featured product:	No
Length(±5mm):	178
Max Burst discharge Rate (C):	50
Net Weight(±20g):	1300
Over 300wh:	No
over_power:	Yes
Part Number:	TAA110006S25E
Preorder config:	No
sorting:	TattuLarge
upc:	889551008686
Voltage(V):	22.8
Width(±2mm):	65
Wire Gauge:	10#
Discharge Wire Length(mm):	120
Amount:	8pcs/box
Capacity Range(mAh):	10000-49999
Part N:	TA-25C-11000-6S1P-HV-EC5
