SunnySky X2216 Brushless Motor Short Shaft Version 1100KV

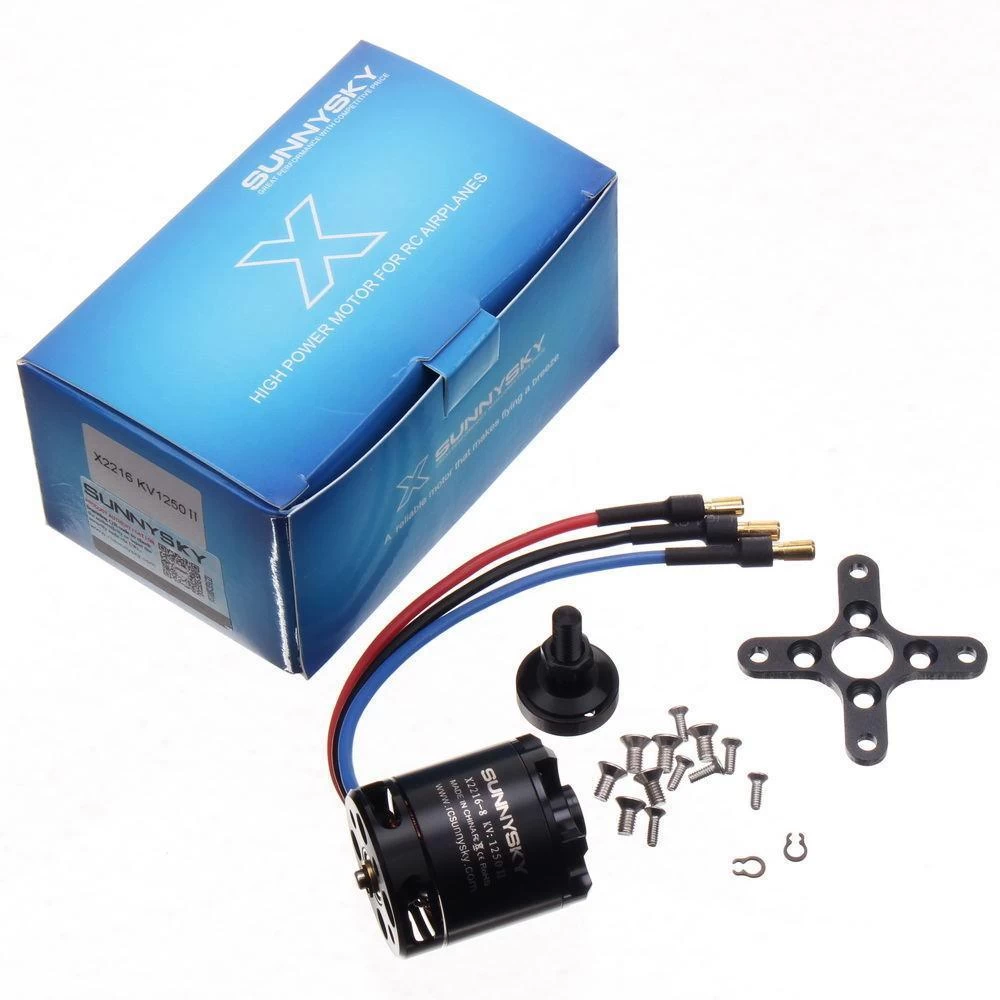

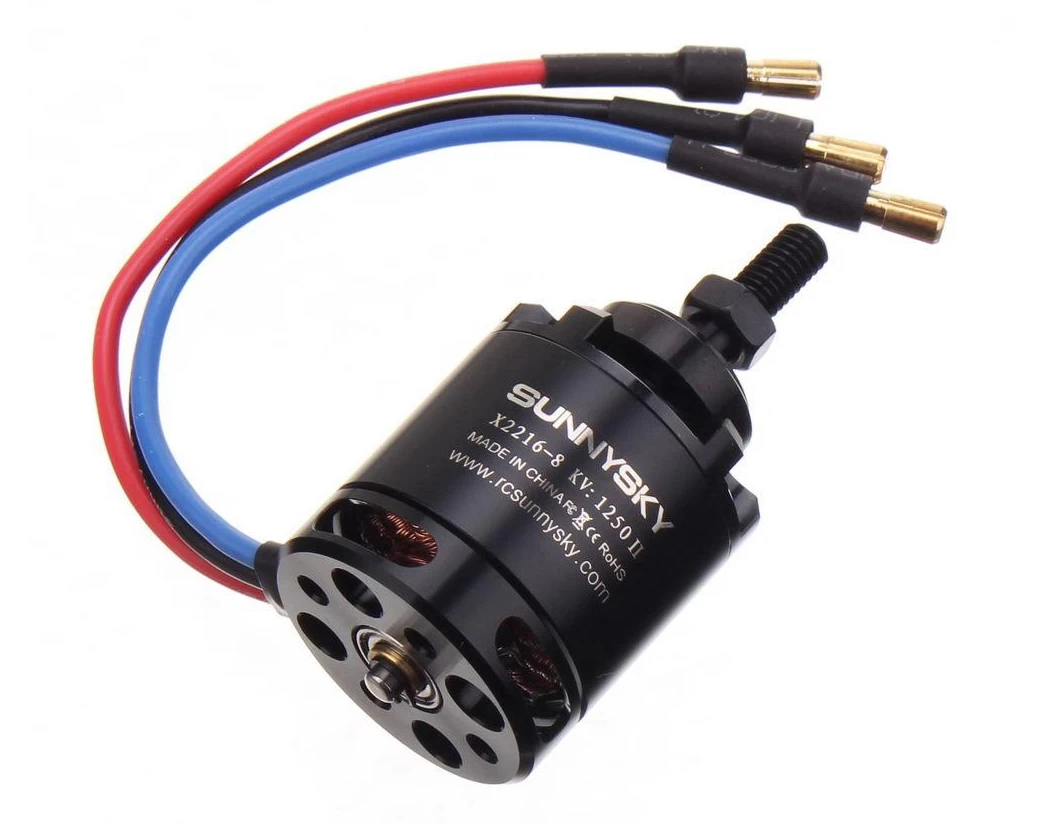

This is a short shaft version. Real product photos are shown in the product photo section, not as the one in over view section.

X series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make motors look more strong at visual.

Stainless steel solid shaft
The motor shaft is made of 420 stainless steel material imported from Japan. After heat treatment, the shafts are improved to high strength, excellent ductility, and better resistance to bending and breaking.

6061-T6 Aviation aluminum alloy
Top and bottom caps are made of high strength 6061-T6 aviation aluminum alloy, with high hardness and high strength of extension, which can ensure reliable performance of motors.

Imported NMB bearings
X series uses customized NMB mini bearings imported from Japan, which provide longer life, quiet and stable operation of these motors.

Hand wound
The coils of X motors are all hand wound. This manufacturing procedure costs much more in labor, but makes the coil tight, neat, better coil space factor, and can increase the continuous power output of motors.

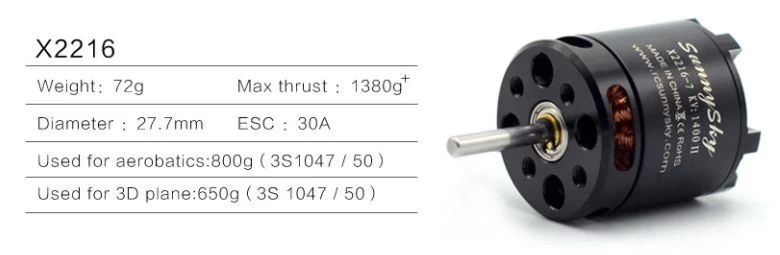

KV1100

Stator Diameter	22mm	Rotor Diameter	27.5mm
Stator Thickness	16mm	Shaft Diameter	3.175mm
No.of Stator Slots	12	Body Length    (Without Shaft)	34mm
No.of Rotor Poles	14	Body Length	36.5mm
Motor Kv	1100	Max Lipo Cell	2-4S
No-load current	0.9A/10V	ESC	30A
Motor Resistance	73mΩ	Recommended Prop(inch)	APC9047/APC9045/APC9060/APC8060/APC1047
Max Continuous Current	24A/30s	Weight for training airplane	800g (3S 10471050)
Max Continuous Power	385W	Weight for 3D airplane	650g (3S 10471050)
Weight	72g



Prop(inch)	Voltage(V)	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
APC1047	11.1	0.8	100	8.88	11.26126126	57°
		1.9	200	21.09	9.483167378
		3.1	300	34.41	8.718395815
		4.6	400	51.06	7.833920877
		6.2	500	68.82	7.265329846
		8.3	600	92.13	6.512536633
		10.2	700	113.22	6.182653241
		12.8	800	142.08	5.630630631
		14.7	900	163.17	5.515719801
		17.8	1000	197.58	5.061241016
		21.9	1180	243.09	4.854169238
APC8060	14.8	1	100	14.8	6.756756757	56°
		2.3	200	34.04	5.875440658
		3.9	300	57.72	5.197505198
		5.6	400	82.88	4.826254826
		7.6	500	112.48	4.445234708
		9.8	600	145.04	4.136789851
		12.1	700	179.08	3.908867545
		14.8	800	219.04	3.65230095
		18.1	900	267.88	3.359713304
		20.5	1010	303.4	3.328938695
APC9047	11.1	0.9	100	9.99	10.01001001	48°
		2	200	22.2	9.009009009
		3.5	300	38.85	7.722007722
		5.2	400	57.72	6.93000693
		7	500	77.7	6.435006435
		8.9	600	98.79	6.07348922
		11.1	700	123.21	5.681357033
		12.4	780	137.64	5.66695728
	14.8	0.7	100	10.36	9.652509653
		1.6	200	23.68	8.445945946
		2.7	300	39.96	7.507507508
		4.2	400	62.16	6.435006435
		5.4	500	79.92	6.256256256
		7.2	600	106.56	5.630630631
		8.7	700	128.76	5.436470954
		10.6	800	156.88	5.099439062
		12.4	900	183.52	4.904097646
		14.2	1000	210.16	4.758279406
		18.6	1230	275.28	4.468177855
APC9060	11.1	0.9	100	9.99	10.01001001	58°
		2.3	200	25.53	7.833920877
		3.7	300	41.07	7.304601899
		5.4	400	59.94	6.673340007
		7.4	500	82.14	6.087168249
		9.6	600	106.56	5.630630631
		12	700	133.2	5.255255255
		14.6	800	162.06	4.936443293
		16	870	177.6	4.898648649
	14.8	0.7	100	10.36	9.652509653
		1.8	200	26.64	7.507507508
		3	300	44.4	6.756756757
		4.4	400	65.12	6.142506143
		5.9	500	87.32	5.726065048
		7.7	600	113.96	5.265005265
		9.7	700	143.56	4.876010031
		11.6	800	171.68	4.659832246
		13.6	900	201.28	4.471383148
		16	1000	236.8	4.222972973
		18.4	1100	272.32	4.039365452
		21.3	1200	315.24	3.806623525
		24.6	1360	364.08	3.73544276
APC9045	11.1	0.9	100	9.99	10.01001001	54°
		2	200	22.2	9.009009009
		3.6	300	39.96	7.507507508
		5.2	400	57.72	6.93000693
		7.1	500	78.81	6.344372542
		8.8	600	97.68	6.142506143
		11	700	122.1	5.733005733
		13.3	810	147.63	5.486689697
	14.8	0.7	100	10.36	9.652509653
		1.7	200	25.16	7.949125596
		2.7	300	39.96	7.507507508
		4.2	400	62.16	6.435006435
		5.7	500	84.36	5.926979611
		7.3	600	108.04	5.553498704
		9	700	133.2	5.255255255
		10.6	800	156.88	5.099439062
		12.5	900	185	4.864864865
		14.6	1000	216.08	4.627915587
		16.4	1100	242.72	4.531970995
		21	1320	310.8	4.247104247
