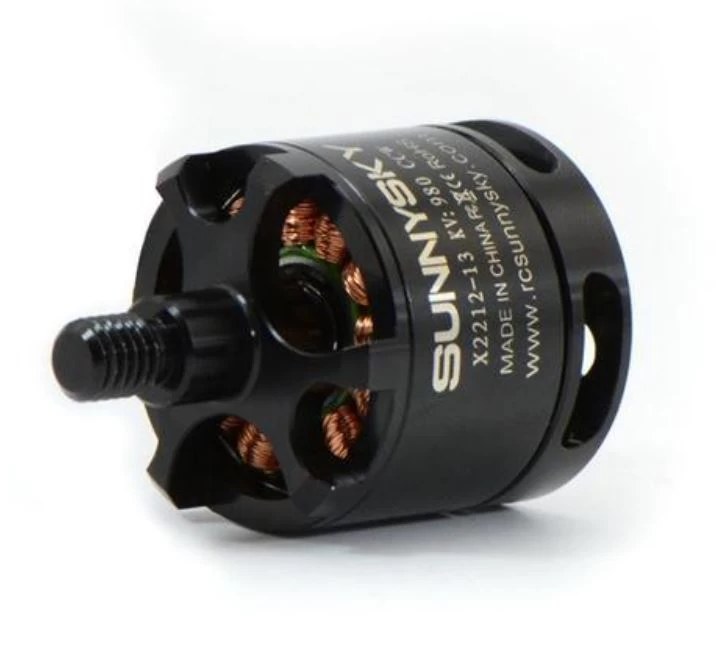

SunnySky X2212 KV980 Brushless Motor – Multirotor CCW

Specifications
Warning: this version does not come with any accessory. It is used for props with built in nuts as shown in the following photos.

X series of motors are processed by CNC milling, the hollow-designed appearance not only guarantee good heat dissipation, but also greatly reduce motor weight. In addition, it also make motors look more strong at visual.

Stainless steel solid shaft
The motor shaft is made of 420 stainless steel material imported from Japan. After heat treatment, the shafts are improved to high strength, excellent ductility, and better resistance to bending and breaking.

6061-T6 Aviation aluminum alloy
Top and bottom caps are made of high strength 6061-T6 aviation aluminum alloy, with high hardness and high strength of extension, which can ensure reliable performance of motors.

Imported NMB bearings
X series uses customized NMB mini bearings imported from Japan, which provide longer life, quiet and stable operation of these motors.

Hand wound
The coils of X motors are all hand wound. This manufacturing procedure costs much more in labor, but makes the coil tight, neat, better coil space factor, and can increase the continuous power output of motors.

KV980

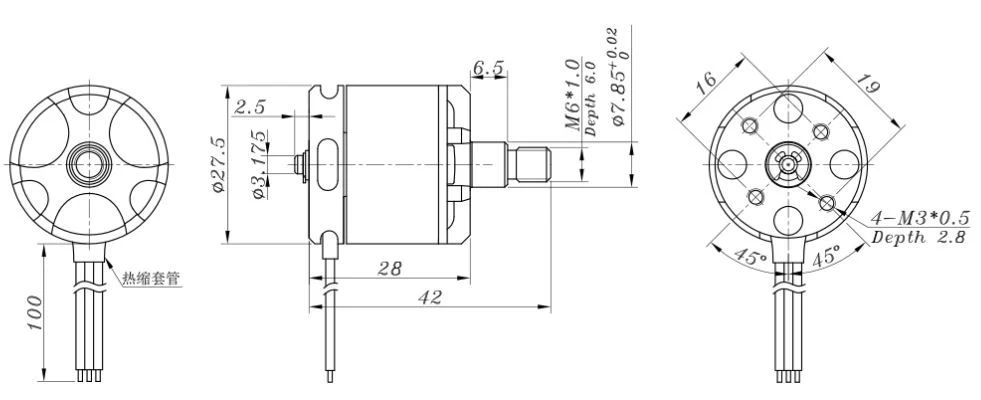

Stator Diameter	22mm	Rotor Diameter	27.5mm
Stator Thickness	12mm	Shaft Diameter	3.175mm
No.of Stator Slots	12	Body Length    (Without Shaft)	42mm
No.of Rotor Poles	14	Max Lipo Cell	3-4S
Motor Kv	980	ESC	20A
No-load current	0.7A/10V	Recommended Prop(inch)	9450
Motor Resistance	100mΩ
Max Continuous Current	25A/30s
Max Continuous Power	412W
Weight	56g
