STRIX StratoSurfer ARF Bundle

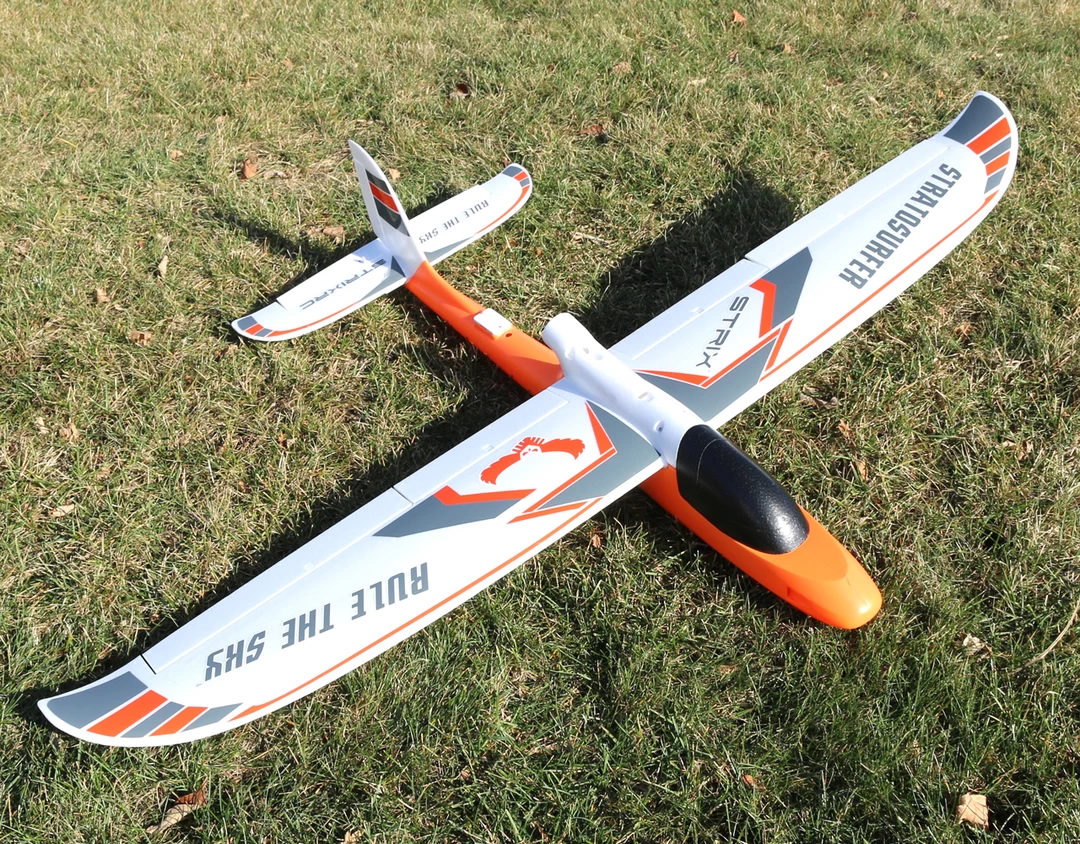

Introducing the STRIX StratoSurfer, now in a discounted ARF bundle to make your choice easy! This awesome aircraft is intended to be a short to medium range and fun to fly FPV platform. The StratoSurfer is based on the original dimensions of the Sky Surfer, but with tons of upgrades!

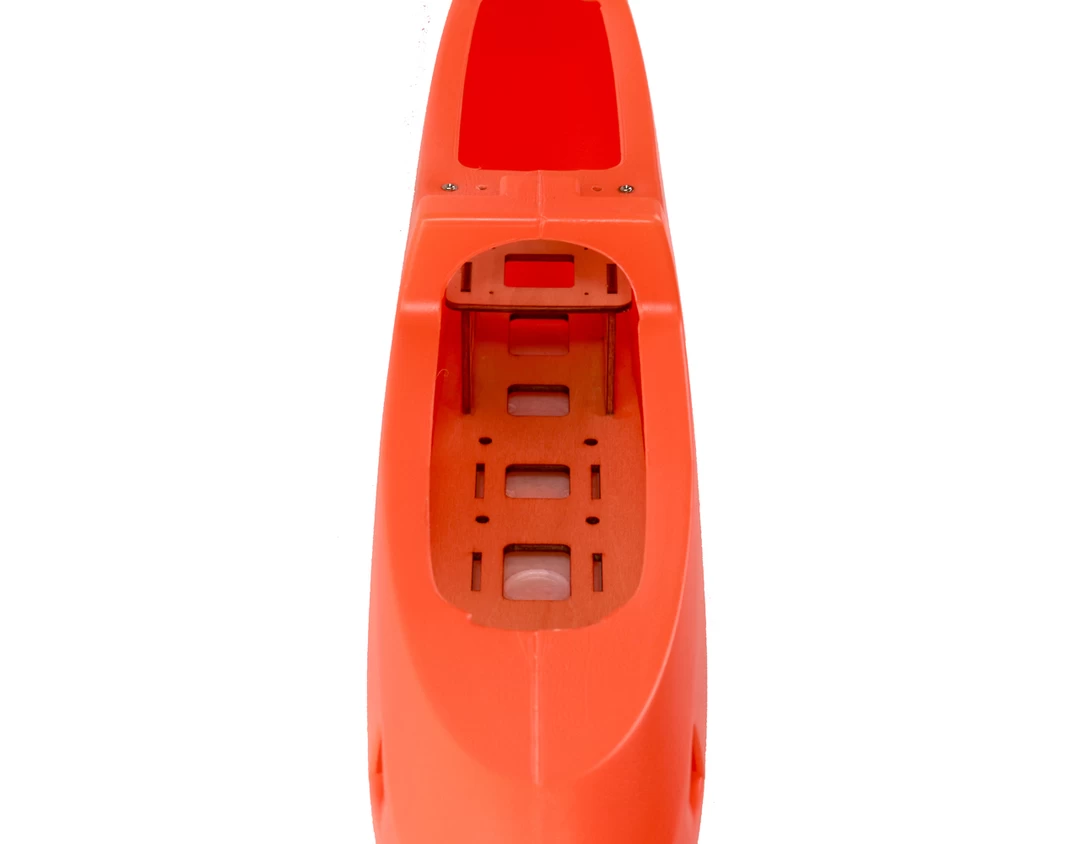

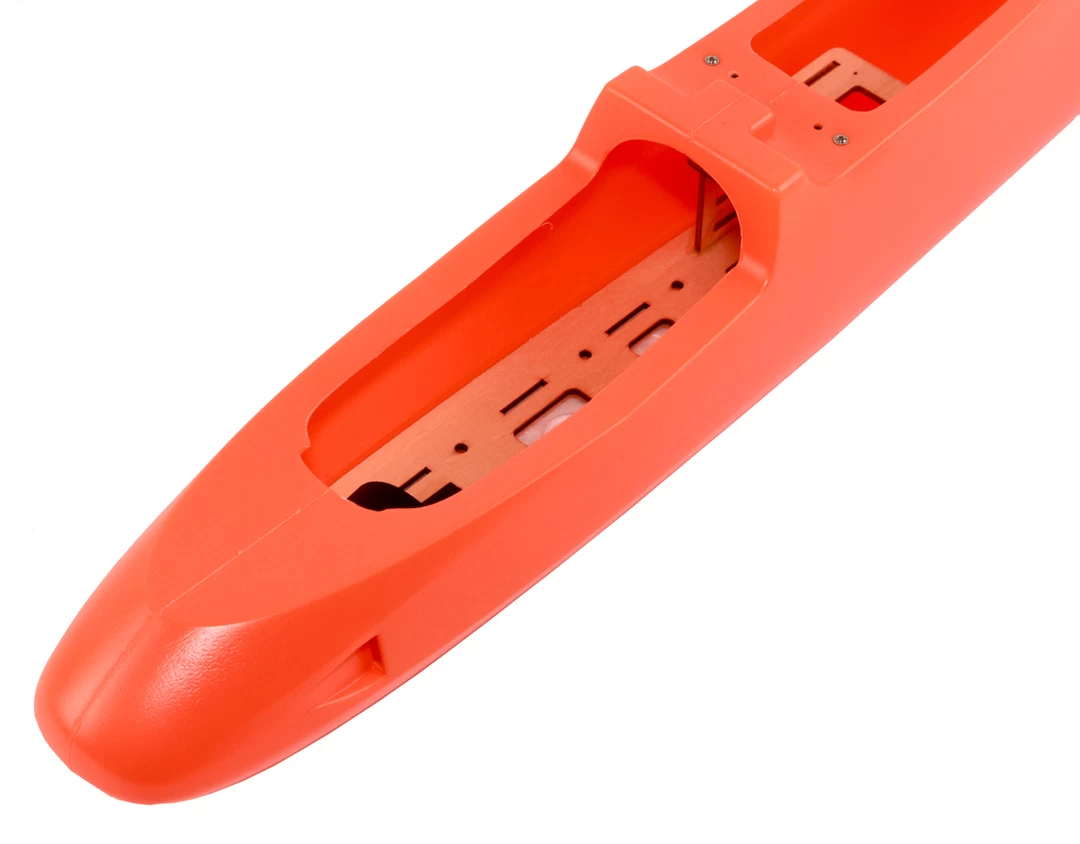

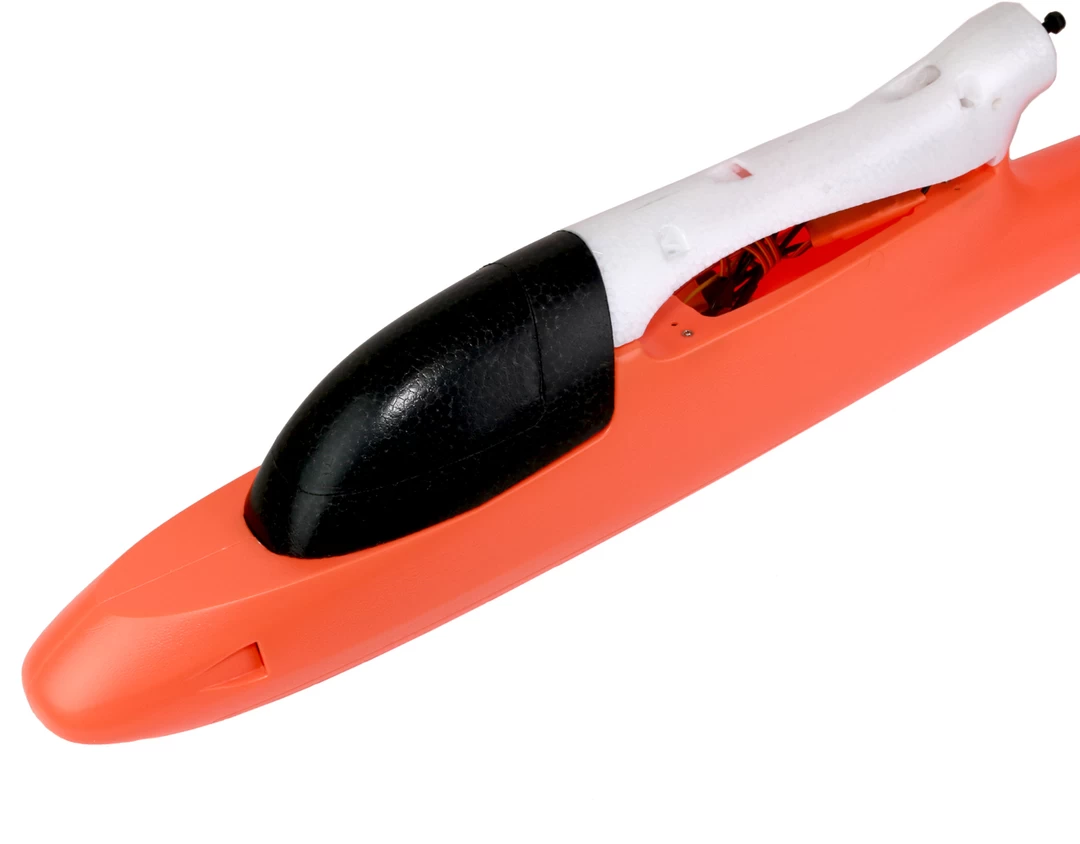

Room for the kitchen sink. One of the best features of the StratoSurfer is the blow molded fuselage. It offers tons of room for your accessories, all while being more durable than traditional foam fuselages. High viz orange makes it easy to spot in the sky to keep orientation. Another cool feature of the blow molded fuselage is grass and snow take offs without landing gear! In the right conditions, touch and go’s are a blast with this aircraft.

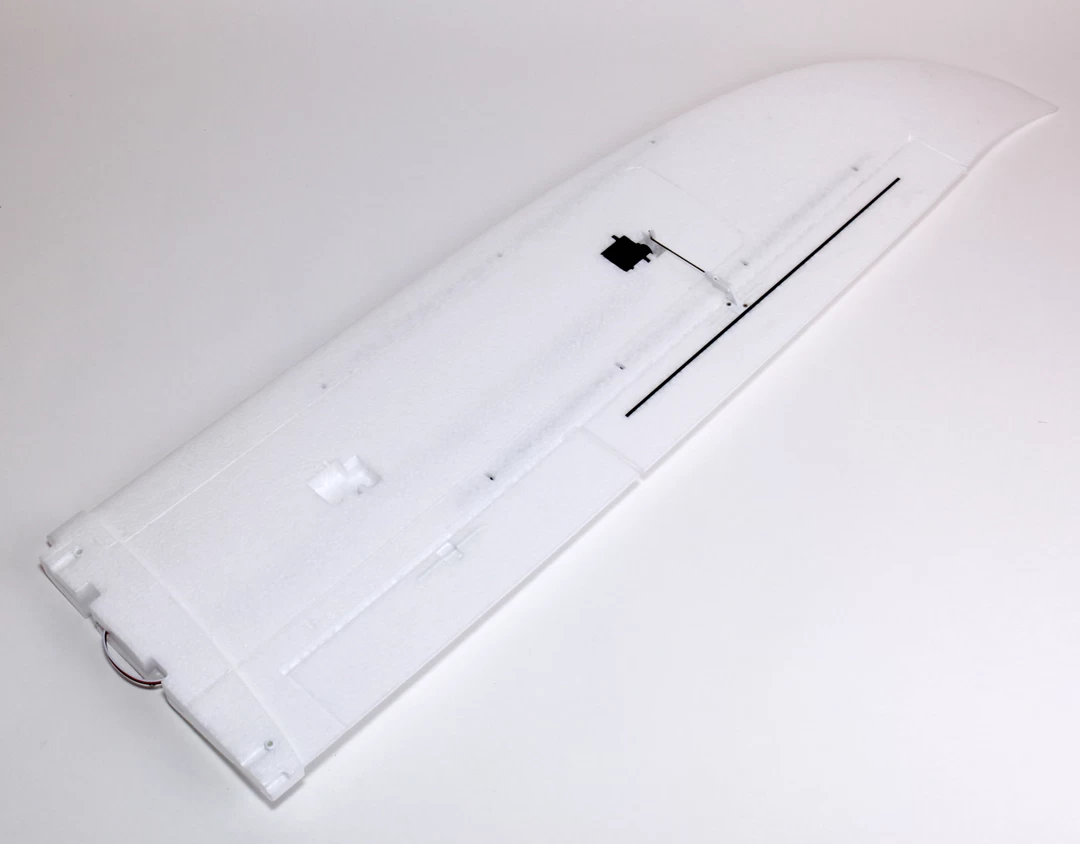

Flap your wings! One feature we always wanted in the original surfer was flaps in the wings without having to modify and cut into the plane. The StratoSurfer’s wings come pre molded for flaps. While not completely necessary for normal flight, they are lots of fun to experiment with when setup as either flap or spoiler modes and can definetly help land heavily loaded cargo. (Hardware not included)

Access Hatch. The StratoSurfer’s blow molded fuselage doesn’t just allow for more room in the nose, it also opens up the tail. In traditional aircraft, routing wires after building can be a total PITA. To help you access the rear of the plane we have included a removable access hatch. Simply remove one of the 2 screws and you can fit items as large as transmitters or a GPS unit though the body.

Huge control surfaces! While still not a “3D Acro” aircraft, the control surfaces have been enlarged and are now much more responsive. The rudder is almost double the size of the original. To help eliminate flexing, the ailerons have been equipped with an additional CF spar.

More chord. The StratoSurfer’s wing chord (width from leading to trailing edge) is about 20mm greater than the original. What this means is more wing area, less wing loading, and more lift for your components!

Features

• Simple to build and easy to fly!
• Extra carbon fiber wing and tail reinforcement
• Rear access hatch
• Large control surfaces
• Optional, molded flaps

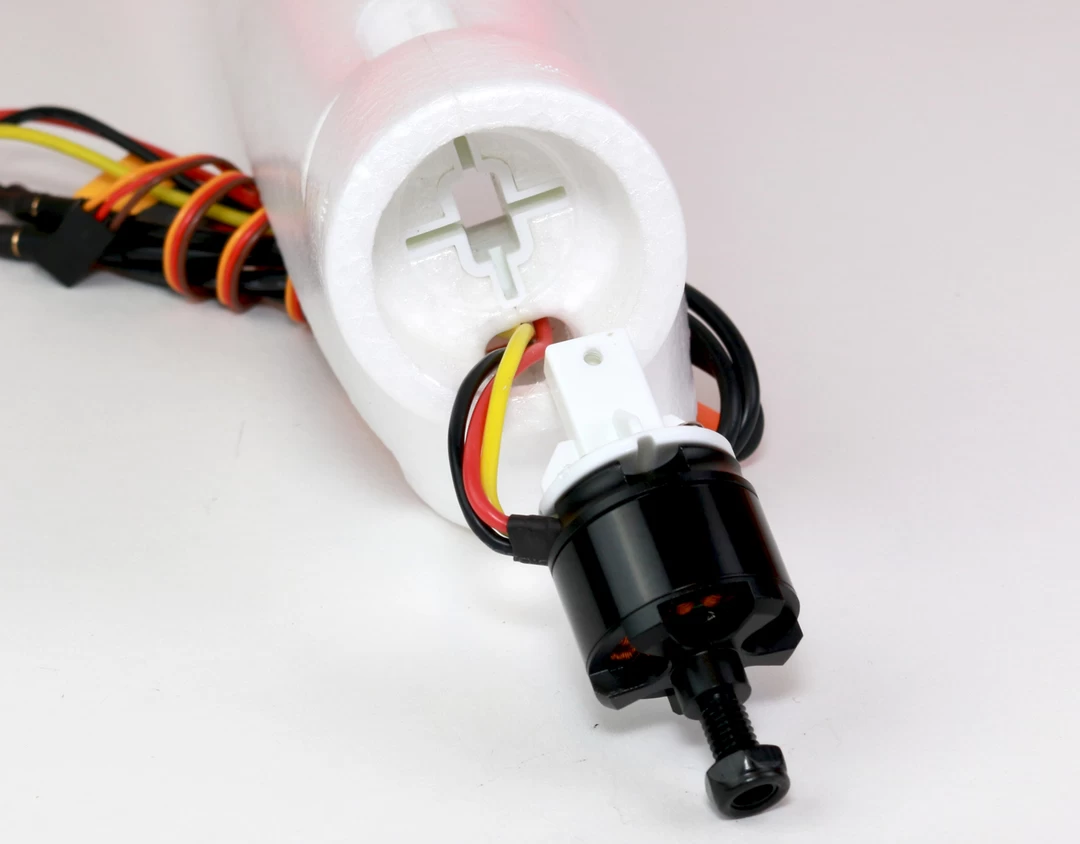

• Easily removable motor
• Durable, blow molded fuselage
• Designed for use with multiple cameras

Specifications

• Wingspan: 1500mm, 59″
• Length: 1000mm, 39″
• Battery: 3300 – 8000 3s (Depending on other weight from cameras and equipment)
• Foam: EPO
• Max propeller size: 6″

ARF Bundle Includes the following:

• StratoSurfer KIT (electronics not installed)

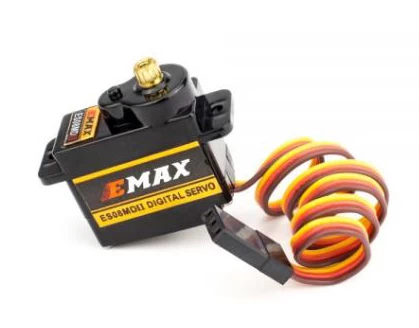

• 4x EMAX ES08MD II 12g Digital Metal Gear Servos

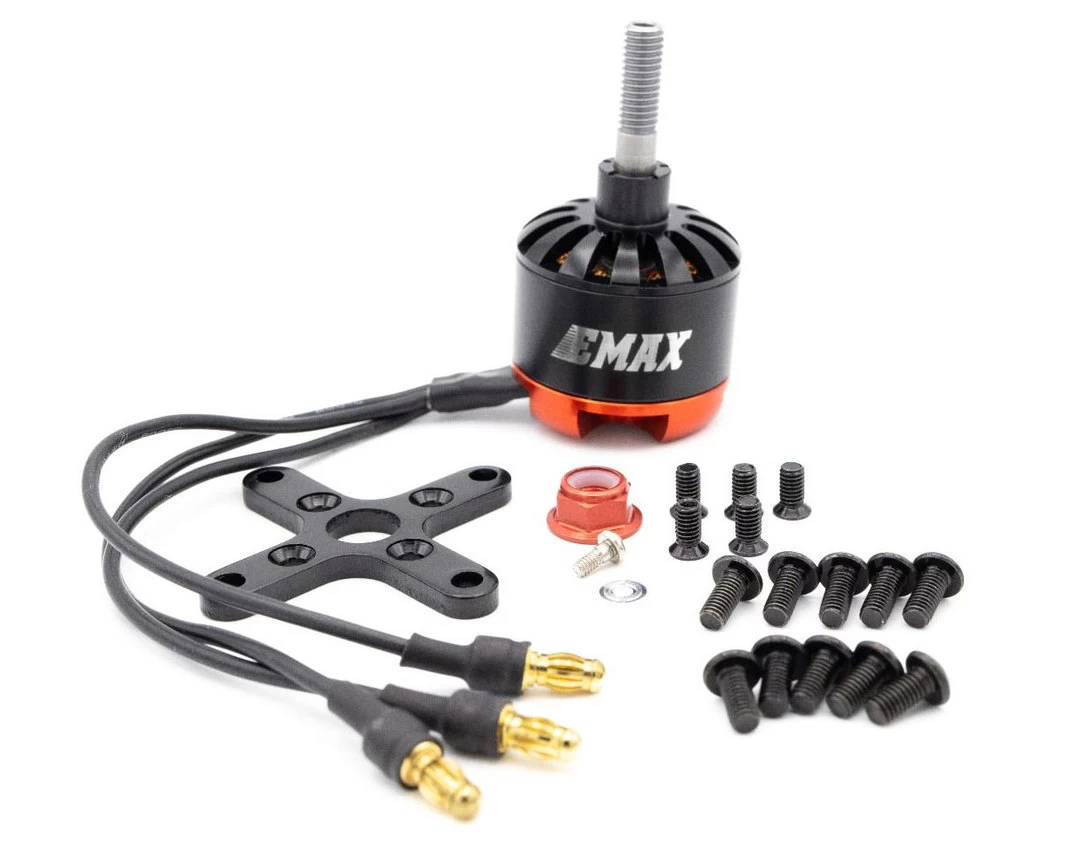

• EMAX GTII-2212T Brushless Motor – 2450kv
• Himax 40A ESC for Aircraft with XT60 Connector
• APC 6x4EP Pusher Prop
• 3.5mm Bullet Motor Wire Extension 15cm 16AWG 3pcs

Recommended Additional Equipment

• Battery: 2700-4500mAh 3s
• Stratosurfer Flap Kit

Mark Qvale’s Stratosurfer page. Lot’s of 3d printable parts and upgrades.

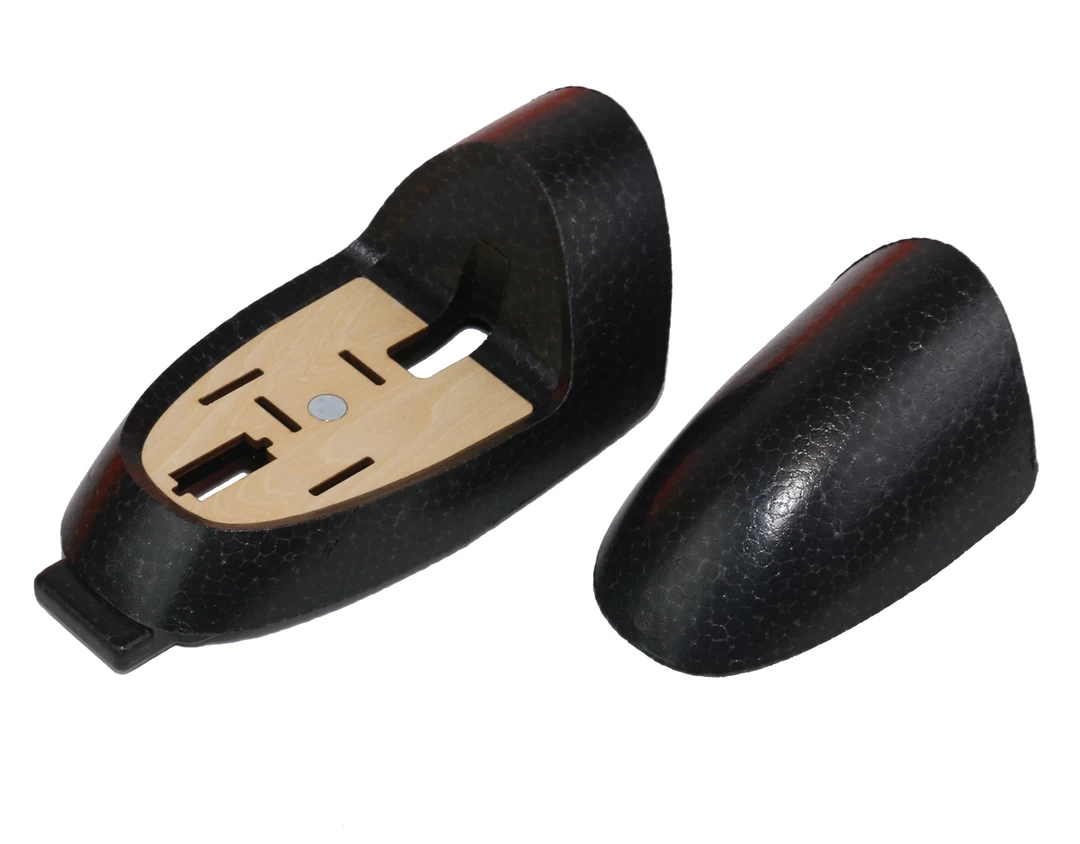

StratoSurfer 3D printed canopy on Thingaverse by tfmccull

Flite Test Review and Video

Join the Facebook Owners Group HERE
