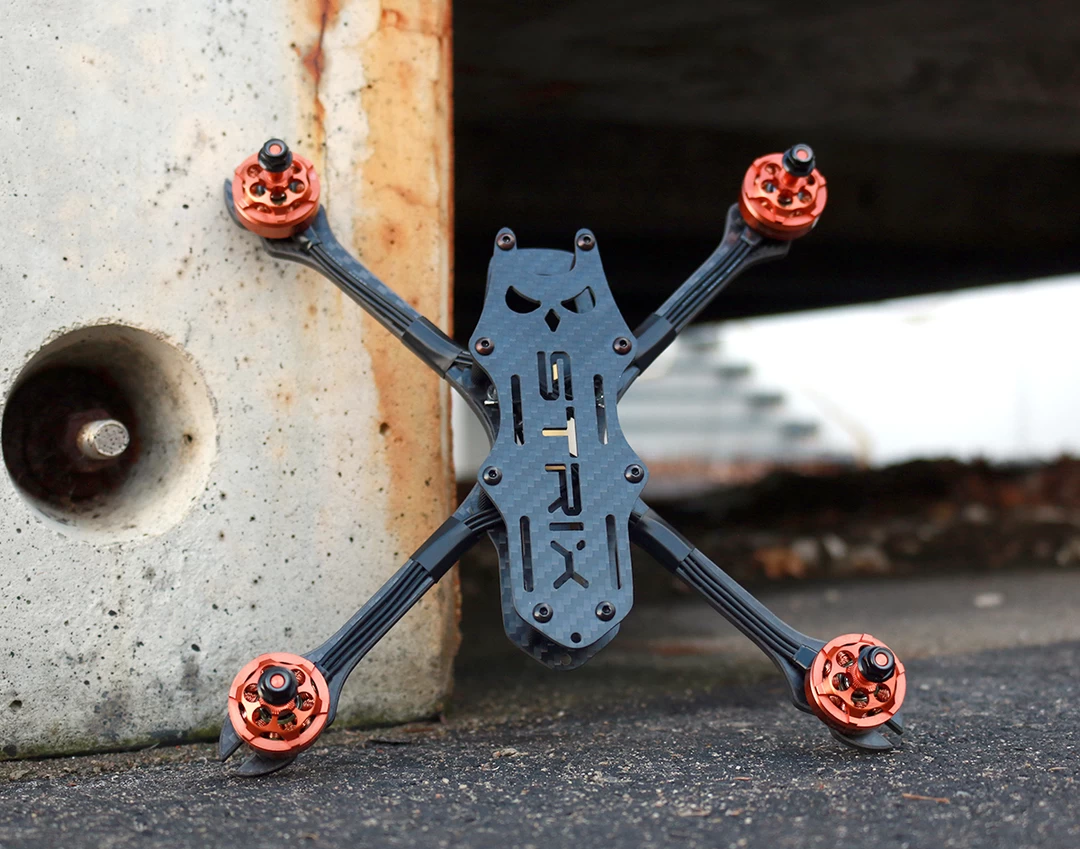

STRIX Screech Freestyle Frame Kit

Welcome to the STRIX Screech Freestyle FPV Frame. This is a fully modernized multirotor frame that is packed full of features which equates to one of the best values on the market today! If you are looking for a quad frame that can take a beating and still compete at the top, this is the one for you.

Note: If you run the DJI FPV system only use the back the standoff instead of the 2 rear standoffs, and for more room we recommend running a 20×20 stack so the air unit can sit flat inside the frame.

Features

• True X arm configuration.
• Plenty of room on the plates allows you to add your equipment without feeling like you are stuffing a turkey.
• Quick change boomerang arms. (Remove 2 bolts to remove)
• Fits most mini and micro cams on the market today and offers plenty of protection.
• 30x30mm or 20x20mm stack mounting.
• Quasi-weave carbon fiber gives the most strength possible in all directions.

Specifications

• 235mm Motor to Motor
• Carbon Fiber
  • Boomerang Arms: 5mm with beveled edge
  • Top Plate: 1.5mm
  • Middle Plate: 2.0mm
  • Bottom Plate: 2.0mm
• Stock Standoffs: 20mm, Knurled
• Dry Frame Weight with TPU FPV mount and TPU antenna mount: 97.1g
• Propellers: 5″ or 5.5″ (with slight modification)

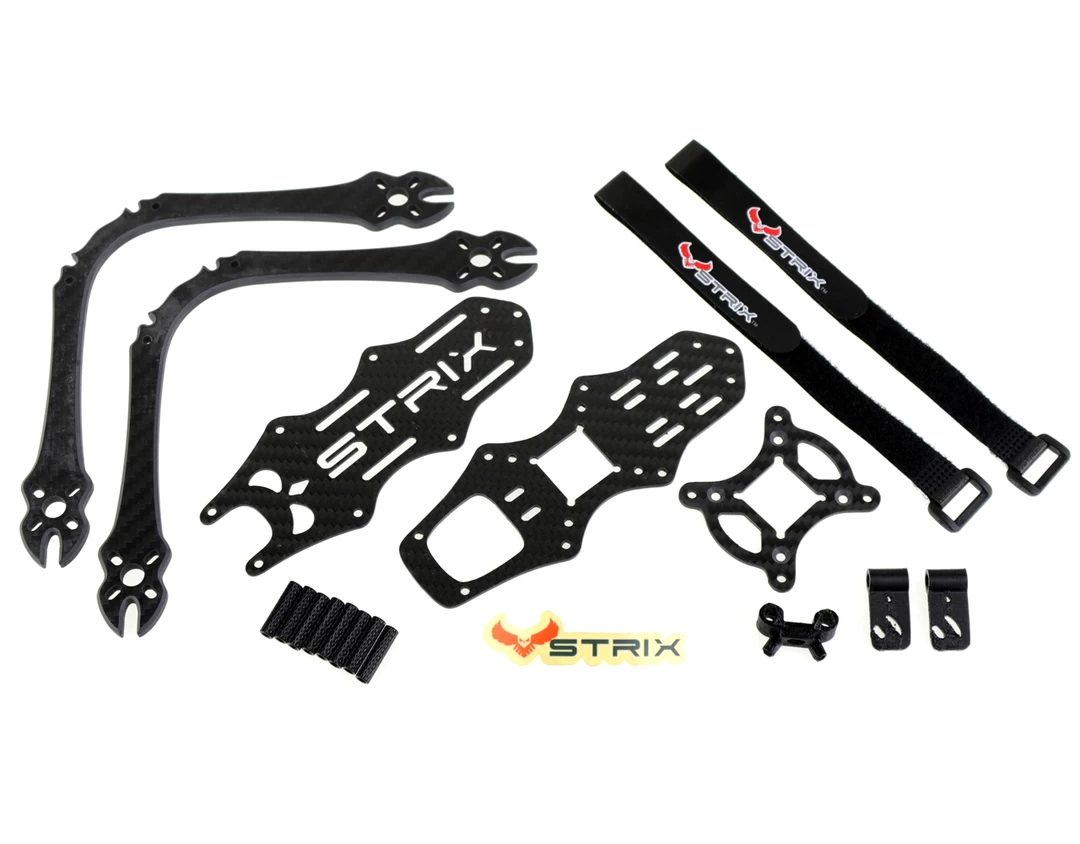

Includes

• 2x Arms
• 1x Top, Middle, and Bottom plates
• 3D Printed TPU Mounts Included:
  • FPV Camera Mounts
  • Rear Antenna Mount
  • HD Mount is not included
• Hardware pack
• 2x STRIX Battery Straps

Recommended

• Cameras: Runcam Micro & Mini Swift
• Motors: STRIX Hot Shot 2306 1750/2500
• Flight Controller: Helio RC Spring/AIO
• Transmitter: RMRC Cricket Pro V2

Notes

• The Screech Freestyle no longer includes the TPU Session mount since popularity has shifted towards other HD cameras. Price has been adjusted to reflect this and mounts are still available separately.

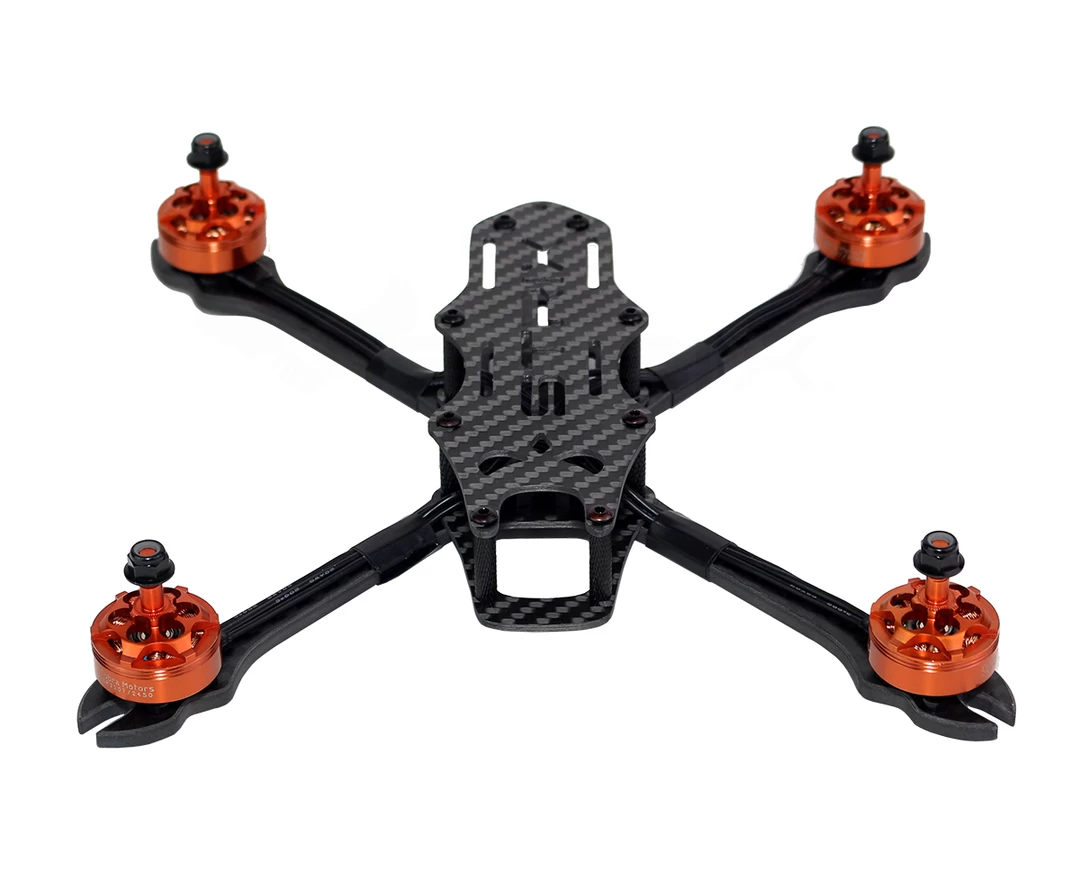

• Motors shown in picture are not included.
• To save you money for shipping dimensions, we have eliminated the white packing box.
• Not compatible with extra large boards such as the FlightOne Bolt.
