Sonic Modell Baby AR.Wing Pro KIT

Sonic Modell SonicModell Baby AR.Wing Pro PNP

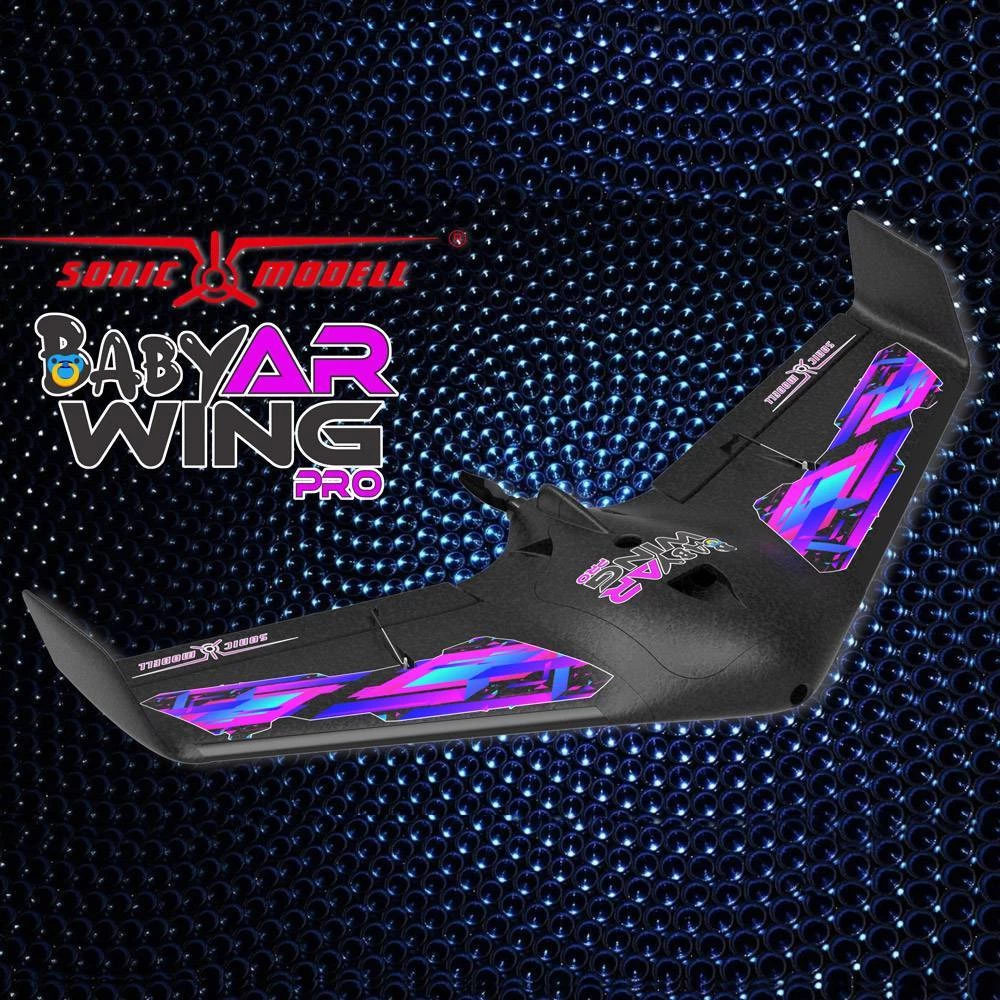

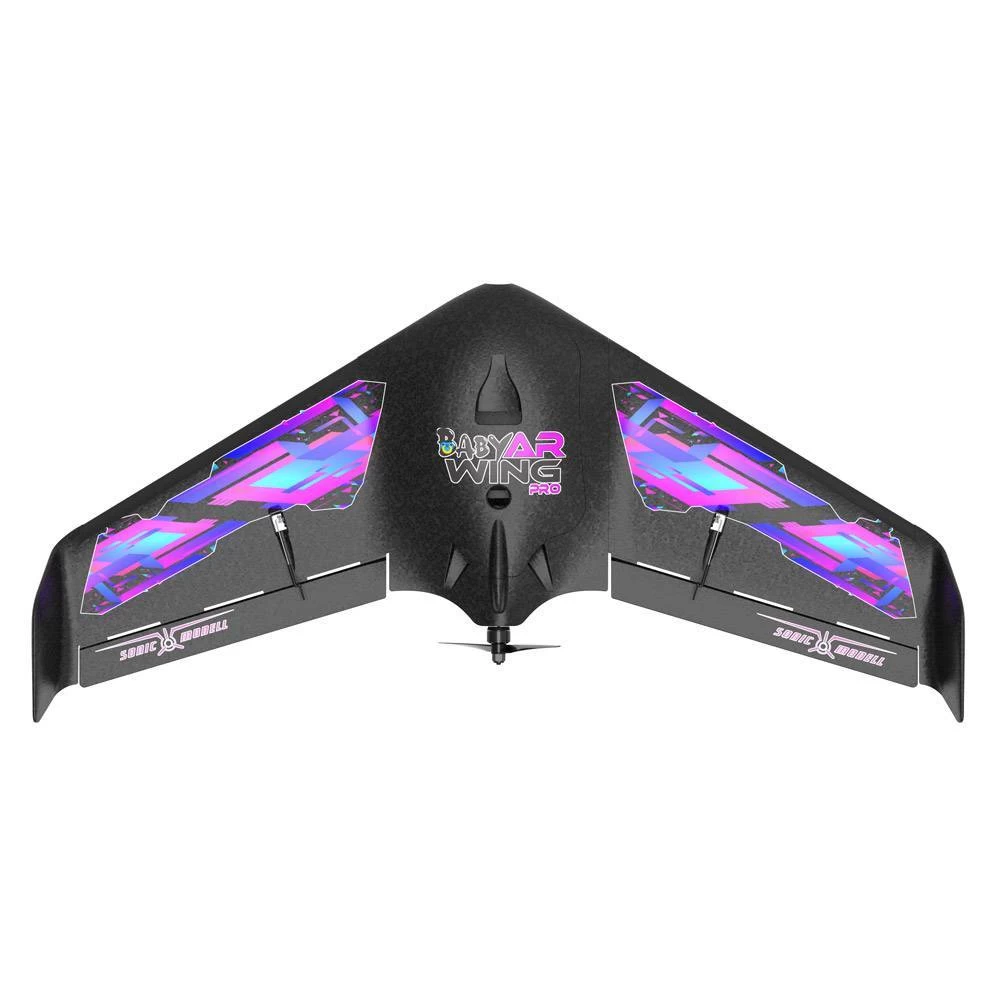

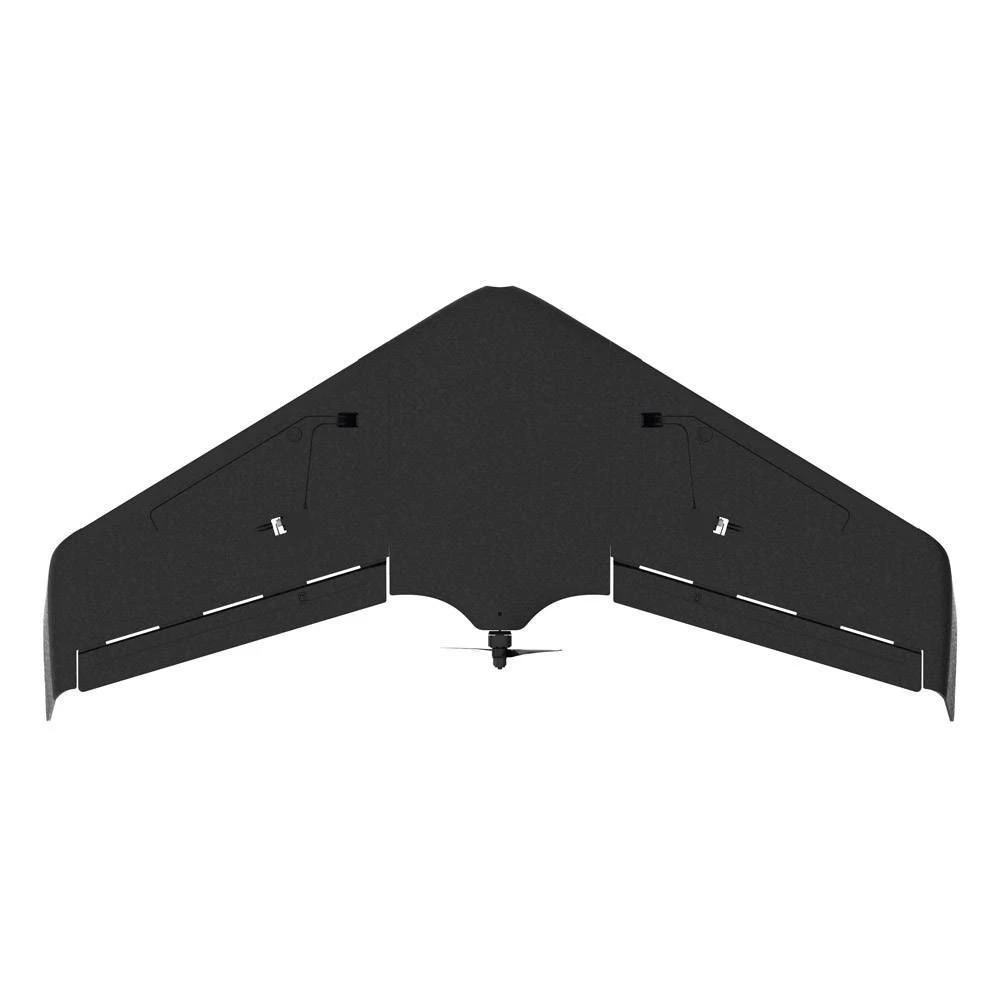

Introducing the Baby AR Wing PRO, the newest member of the Sonicmodell family of FPV flying wings. Based on the popular AR Wing PRO, the Baby AR Wing PRO is a compact and portable flying wing that is perfect for pilots who want to fly anywhere and anytime. Crafted with high-quality EPP material, the Baby AR Wing PRO has a wingspan of 682mm (26.85″) and a length of 320mm (12.59″). It is equipped with a powerful 1406-3800KV motor, a 30A ESC with 5V 2A BEC, and two 4.3g servos, all of which combine to deliver impressive performance.

The Baby AR Wing PRO features a detachable main wing that allows for easy and glue-free assembly, making it highly portable for outdoor flying. It has a large battery bay that can accommodate a Lipo 3S up to 2200mAh or a 3S 18650 pack (flat type) for extended flight time, and it also has a nose camera bay that is compatible with various HD cameras in the market.

One of the most outstanding features of the Baby AR Wing PRO is its aerodynamic design, with an FPV bay on both sides of the wing and a high-efficiency NACA air cooling system that ensures the FPV gear works in perfect condition. It also has a unique “FlexiLock” hinges design that provides a natural and friction-free swing to your control surfaces.

The Baby AR Wing PRO is designed to be highly agile and responsive, with a high-accuracy ball link control system and built-in CF rod in the ailerons that gives precision and sharp action to your inputs. The “AeroGuard” servo built-in structure protects your servo and arm from impact, and the molded “CG” bump under the wing allows for better adjustment of the center of gravity.

With a maximum speed of 100km/h (with SONICMODELL power combo) and a recommended maximum take-off weight of 470 grams (with SONICMODELL power combo), the Baby AR Wing PRO is an impressive flying machine that can handle a wide range of flying styles and environments. It is the ultimate portable wing, with a big performance in a small package.

This aircraft is made of high-quality EPP material and boasts a wingspan of 682mm (26.85″) and a length of 320mm (12.59″). Equipped with a 1406-3800KV motor, a 30A ESC with 5V 2A BEC, and two 4.3g servos, it comes with a 4×2.5 propeller and is recommended to be powered by a Lipo 3S battery up to 2200mAh or a 3S 18650 pack (flat type).

For optimal performance, the recommended minimum flying speed is 31km/h, which depends on the aircraft’s AUW. With the SONICMODELL power combo, it can achieve a maximum speed of 100km/h and a cruise speed of 40km/h. The maximum recommended take-off weight with the SONICMODELL power combo is 470 grams.

The elevons should have a reflex of 1-1.5mm at level, and the recommended maximum throws are 9mm. Please note that these values are approximations and may vary depending on the pilot’s skill level, FPV equipment, and flying environment.

1. The AR Wing PRO’s little sibling, the Baby AR Wing PRO, is a high-performance
aircraft in a small package. It is portable and perfect for outdoor flying.
2. The aerodynamic design features an FPV bay on both sides of the wing with a
highly efficient NACA air cooling system that ensures the FPV gear works perfectly.
3. The detachable main wing allows for glue-free assembly, making it easy to
transport.
4. The high-accuracy ball link control system provides a quick and agile response in
control.
5. The ailerons have built-in CF rods for precise and sharp action.
6. The “AeroGuard” servo built-in structure provides protection from impacts.
7. The “FlexiLock” hinges give a natural and friction-free swing to the control
surfaces.
8. The aircraft is molded by tough EPP material and has a pre-built CF spar for
enhanced stability and crash resistance.
9. The nose camera bay is compatible with various HD cameras in the market.
10.The large battery bay provides extended flight time and ample space for various
Flight Controllers.
11.The molded “CG” bump under the wing allows for better center of gravity
adjustment.
12.The optimized air-cooling design keeps the gear safe from overheating.

Includes:
KIT

1x SonicModell Baby AR Wing Pro (Black)
1x Hardware Kit
