Sonic Modell AR Wing Pro KIT – EPP, 1000mm

Sonic Modell AR Wing Pro KIT – EPP, 1000mm, DJI Ready

Features

• The World 1st FPV Wing with dedicated nose camera bay and main hatch bay for DJI HD Air Unit System, no need any cut or DIY to fit the DJI System.
• Aerodynamic designed FPV pocket in both sides of fuselage, with high efficient NACA air cooling system to ensure the FPV gear work in perfect condition.
• Molded by tough EPP material, built-in CF spar for enhancement, super stable flying capability and crash resistance.

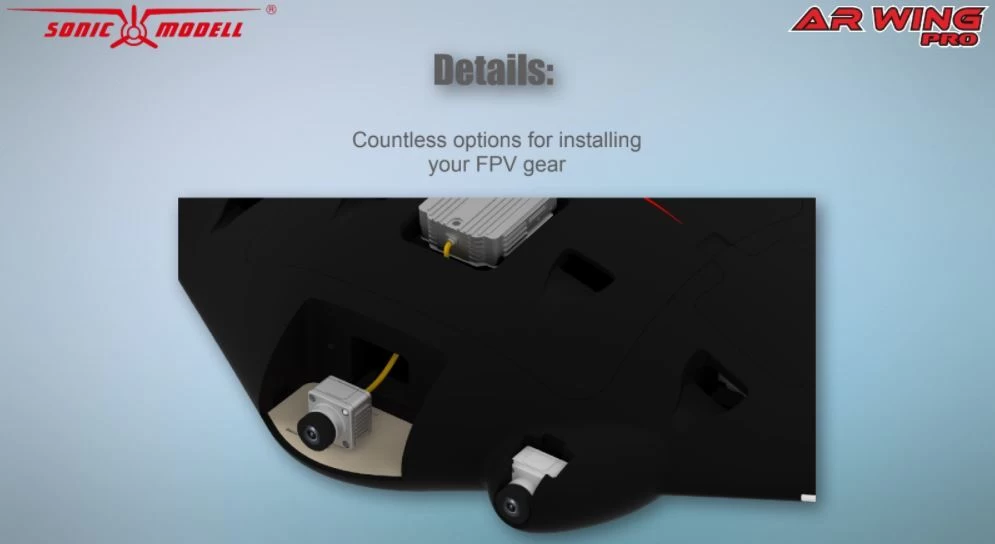

• Extra nose and side camera bay and main hatch that compatible with all FPV and AIO cameras in the market.
• Nose camera slot compatible with all HD Auction cameras (Gopro, DJI, Runcam etc) in the market.
• Multiple tunnels inside all quipment bays, easy to layout wire between each bay.

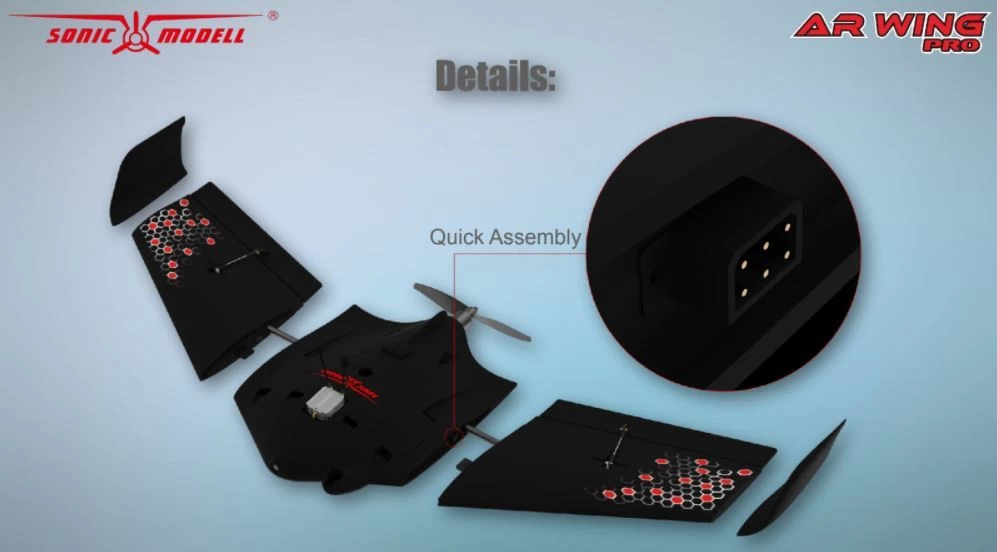

• Detachable main wing and wing tip, glue-free assembly, portable for outdoor flying.
• Built-in CF rod in the ailerons will give precision and sharp action to your inputs.
• High accurate ball link control system brings agile and quick response in control.
• Special-designed “servo arm built-in” structure will protect your servo arm from impact.
• Large battery bay for extended flight time and more rooms for various Flight Controller.
• Decent rear bay for ESC, isolate interference from other FPV equipment.
• Built-in plate inside fuselage for extra enhancement.
• Extra CA Hinges for DIY will bring you more stiff and agile control.
• Optimized air-cooling design will keep your gear safe from overheating

Specifications

• Name: AR Wing Pro
• Material: High Quality EPP
• Wingspan: 1000mm (39.37”)
• Length: 450mm (17.71”)
• Version: KIT
• KIT Empty Weight: 1200g
• Recommended Motor: 2216-1400KV
• Recommended ESC: 40A w/5V 3A BEC
• Recommended Servos: 2pcs 9g metal gear servo
• Recommended Propeller: 2 blades 8×5
• Recommended Battery: 4S 3200-3500mAh

Recommended Flying Capability

• Min. recommended speed: 31km/h
• Max. Speed (with SM power combo): 130km/h
• Cruise speed (with SONICMODELL power combo): 75/80km/h @ 5.5A
• Max Speed tested without structural failure: 220km/h with no structural damage or twist on elevons
• Max recommended takeoff weight (with SONICMODELL power combo): 1425 grams
• Reflex on elevons: 1.5-2mm at level
• Recommended max. Throws: 12mm
