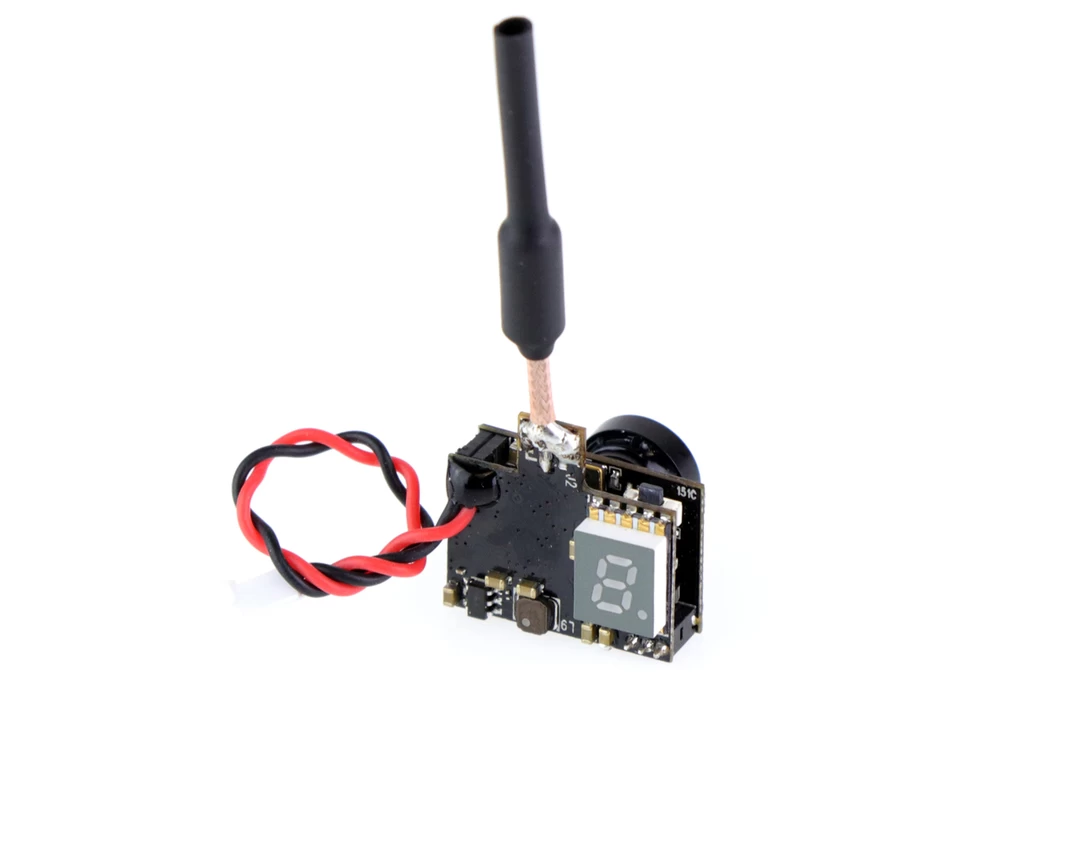

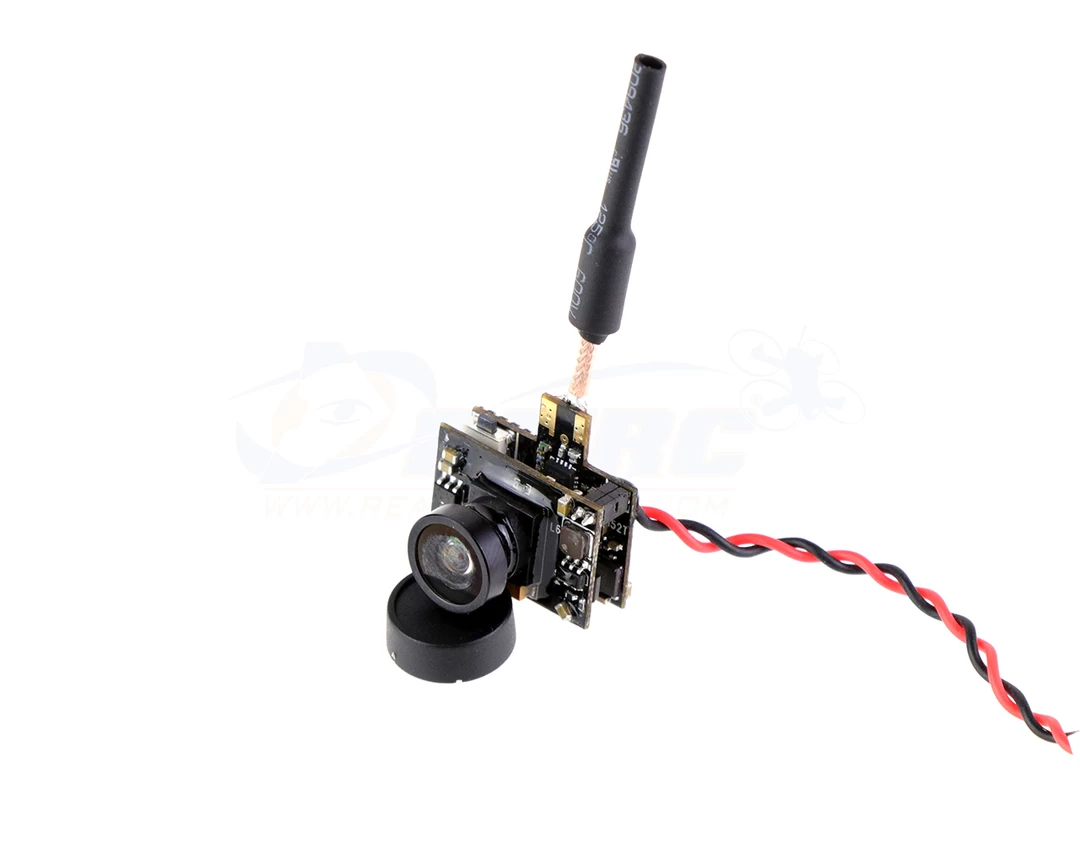

Sinopine 3 IN 1 200mw FPV Transmitter Camera – US Channels

The Sinopine 3-IN-1 200mw FPV Transmitter and Camera is super simple to operate, offers great range for its size, and has decent picture quality making it the perfect choice for small quads or planes. It is a great option for those that only want to temporarily add FPV to a traditionally RC aircraft and convert it back again.

Features

• AIO (All In One)
• Super small and lightweight
• Good quality image with zero latency
• 40 channels with raceband (US only)
• Button control instead of switches to change channels
• Easy to install,plug and play
• Power by 1S lipo battery or from your rc receiver with THIS cable (BEC should be rated high enough handle additional load)

Specifications

• Output power: 200mW
• Input power: 3.2–5V
• Current consumption:3.2V-5V,500mA(type)
• Camera resolution: 600TVL
• Video system:NTSC
• Mini illumination: 1 lux
• Field of view: 120°viewing angle
• Antenna: DiPole
• Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5658-5917MHz (US only)
• Size: 18.7*13mm(L*W)
• Weight: 4.7g

Push button operation, single press to change channel,long press to change FR band
