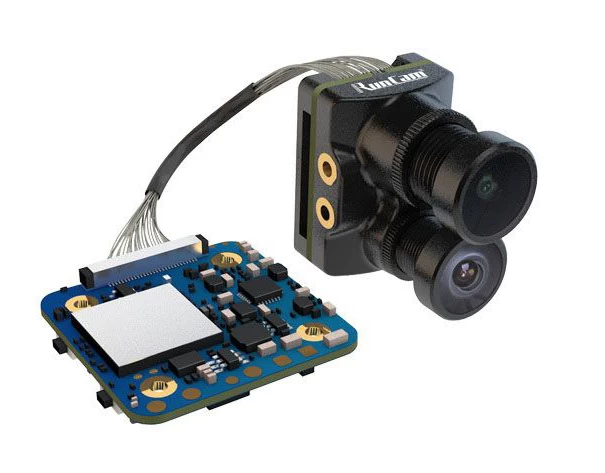

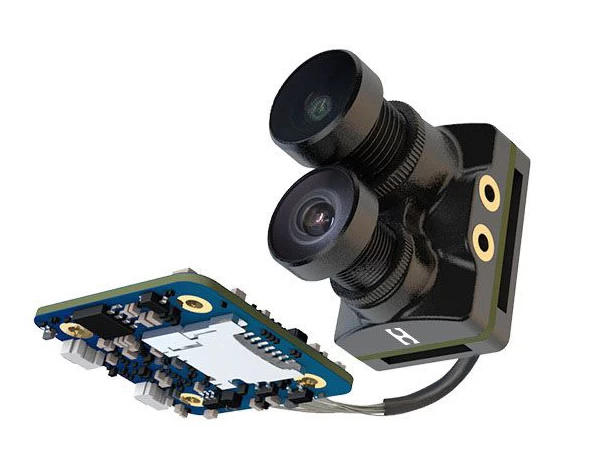

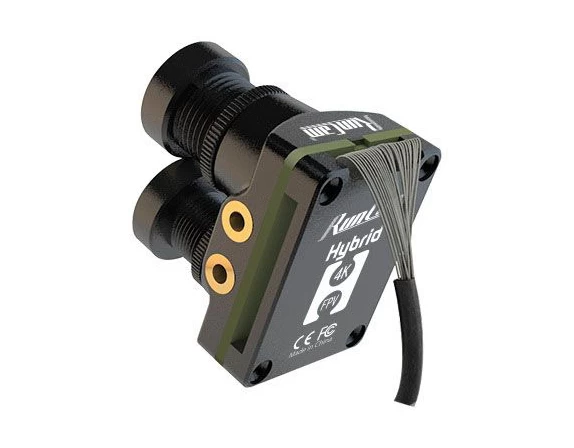

RunCam Split Hybrid 2 Wide Angle 4K HD & FPV Camera

Introducing the Runcam Hybrid 2 4K HD!

Main Features

• FOV 145°HD Recording
• Only 6ms FPV Latency
• 20x20mm mounting board size makes it easy to install
• Remote-control HD recording
• Scannable QR code setting changes
• Upgradeable inner FPV camera

Specifications

• HD sensor: SONY 8MP
• Analog sensor: SONY 1.3MP
• Field of View (FOV): HD Recording FOV 145°(FPV FOV 150° @ 4: 3)
• Video Resolution: 4K@30fps / 2.7K@60fps / 2.7K@50fps / 1080P@120fps / 1080P@100fps / 1080P@60fps / 1080P@50fps
• Video File Format: MP4
• TV Mode: NTSC (720*480)/PAL (720*576) Switchable
• Interface: HD supports UART remote control; FPV(Analog) supports UART fimrware update.
• Micro SD Card: Up to 128G. U3 recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above) Please make sure that the file format of the SD card is FAT32, otherwise, it will easily cause errors.
• Mounting Holes Distance: 20*20mm
• PCB Size: 29*29mm
• Lens Module Size: 19*25mm
• Lens Specs:
  • HD Lens : M10
  • FPV Lens : M8
• Power Input: DC 5-20V (Non-direct power supply from 4s battery or above. Powered directly with battery will generate surges and burn the camera.)
• Working Current: 480mA @5V / 140mA @12V
• Weight: 18g
