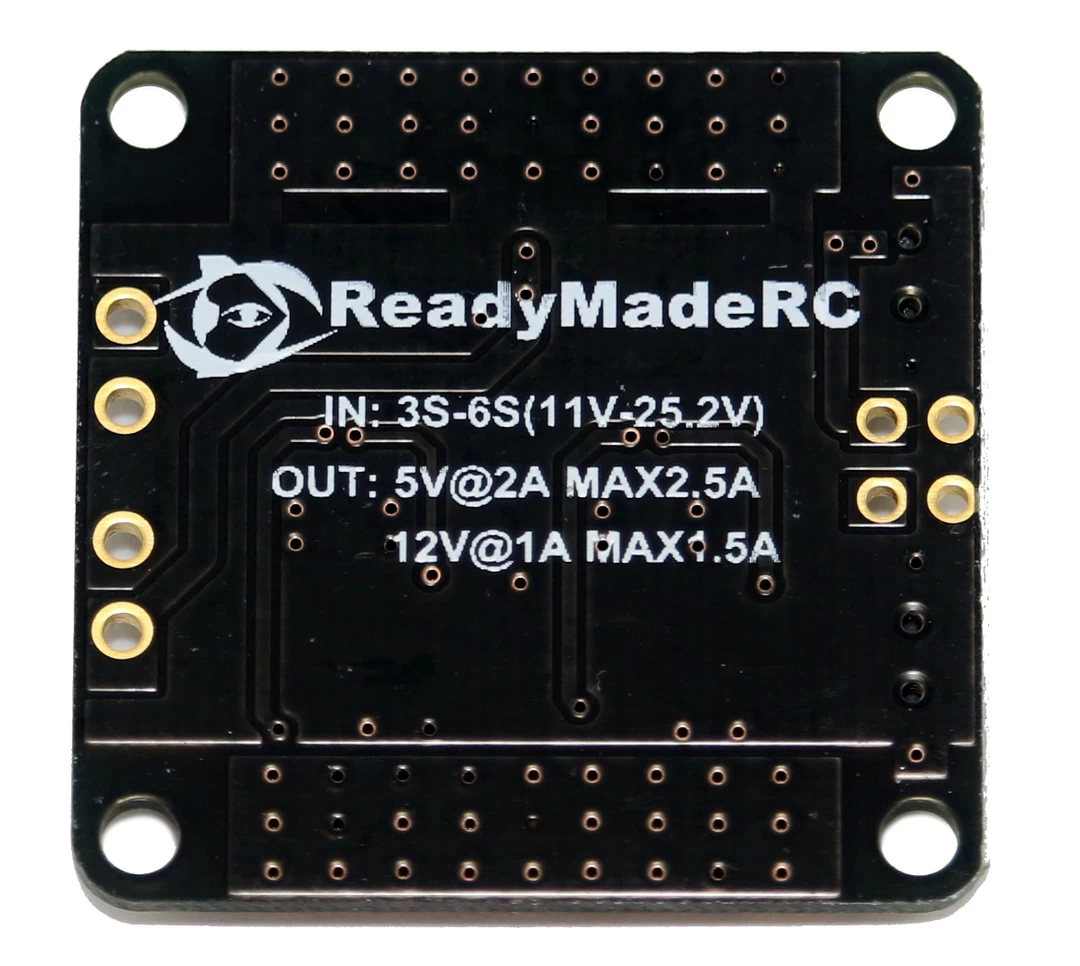

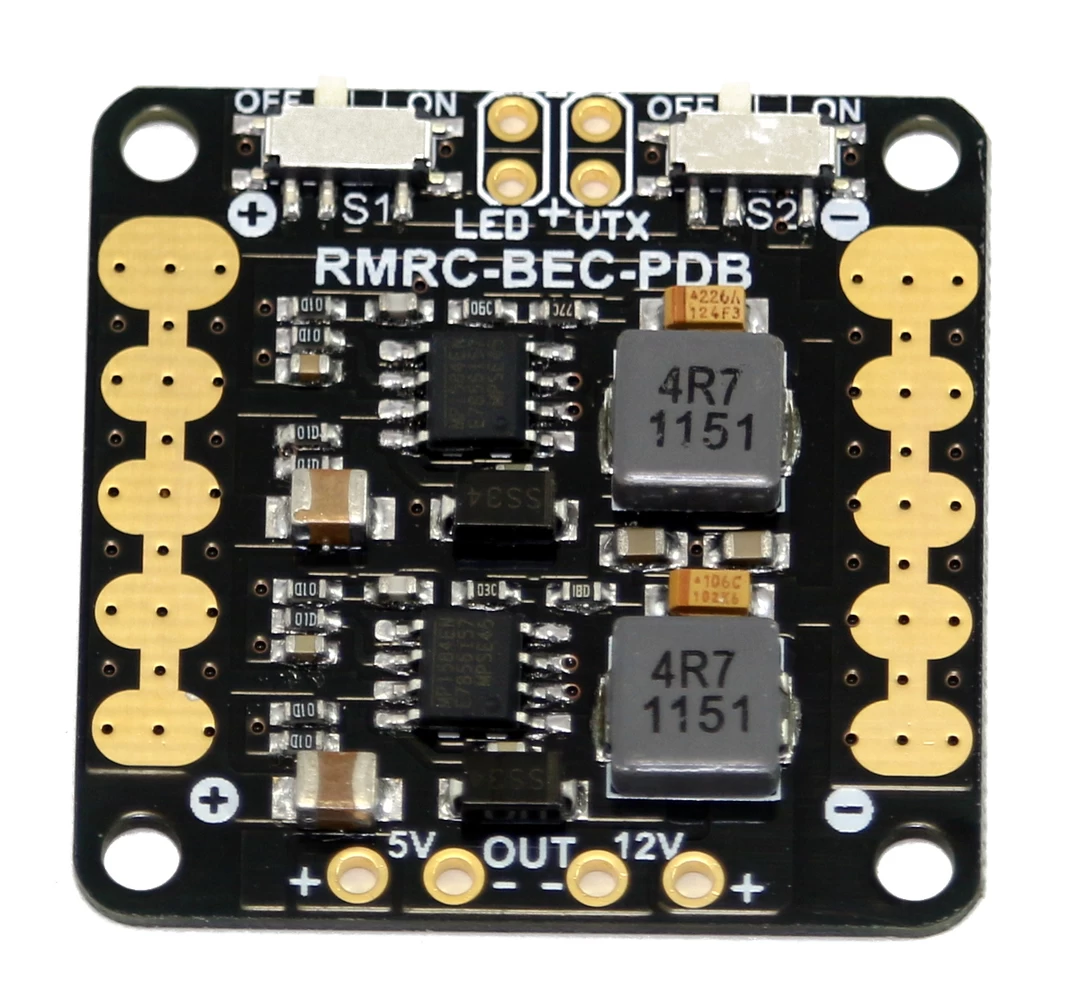

RMRC – Mini Power Distribution Board – 5V & 12V BEC + Switches

This PDB includes 2 manual switches that can be used for toggling LED’s, video transmitters, or other components. Gold plated solder pads. Also includes built in 5V & 12V BEC’s for powering your flight controller, camera, etc, that require specific voltages.

Features:

• 5V & 12V built in BEC’s
• 2 Manual Switches (raw battery voltage)
• 10 Main power soldering pads
• Gold Plating

Designed to be stacked with popular flight controllers such as:

• Dodo
• Naze32
• CC3D
• ​Revo
• Or any other similarly designed systems.

Specifications:

• 36x36mm
• 30.5 hole spacing
• IN: 3S-6S (11V – 25.2V)
• OUT: 5V @ 2A (2.5A Max) 12V @ 1A (1.5A Max) (12V regulator will be below 12V when using 3s lipo)
