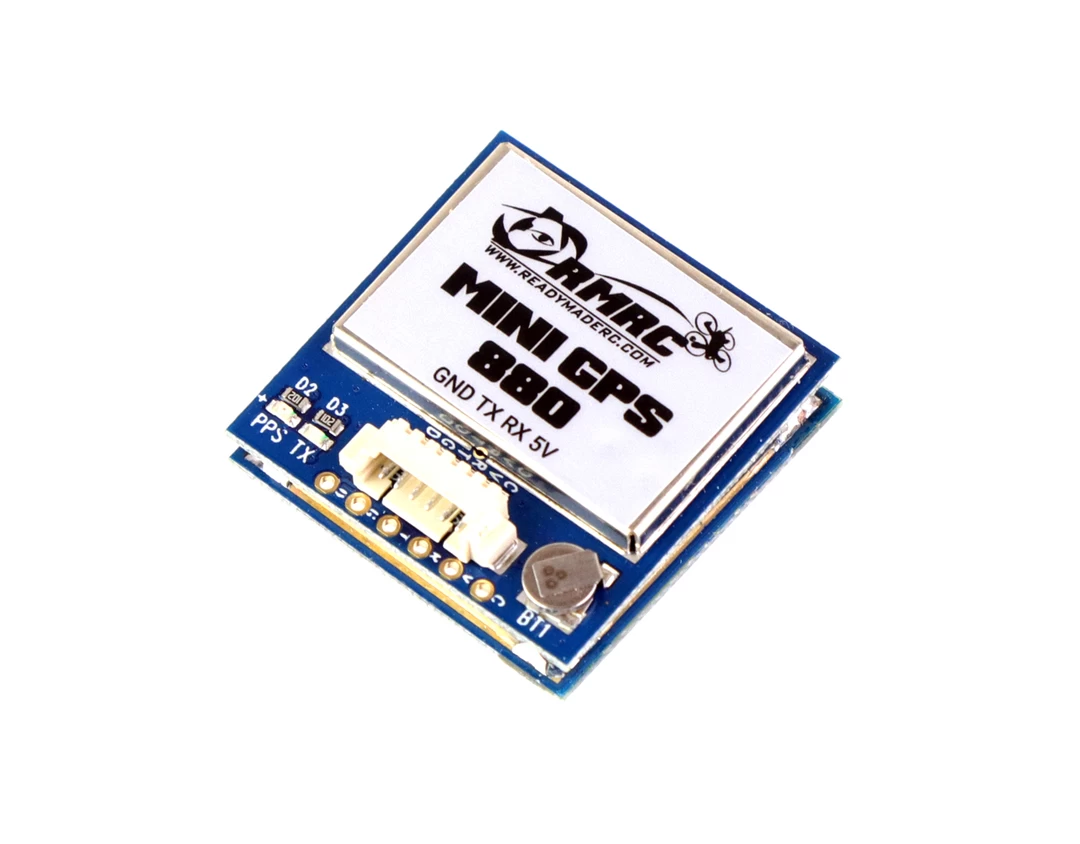

RMRC Mini 880 GPS With Compass For INAV And Drone Use

Want to add GPS and Compass to your Fixed Wing or Quad? Then we have a great option for you, the ReadyMadeRC Mini 880GPS! This GPS is small, lightweight, and extremely accurate. The RMRC MINI GPS comes stock with the best pre-configured settings to use with INAV so you can plug in and go, or use it with any system that can communicate with UBLOX and NMEA-0183 protocol.

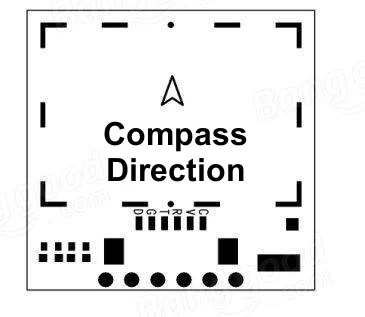

BN-880 Vs BN-220: The BN-880 adds a dual module compass, but at the cost of overall size when compared to the 220 and 180.

Specifications

• GPS: BN-880 UBLOX NEO-M8N Micro with dual module compass
• TX LED: blue the data output, TX LED flashing
• PPS LED: red PPS LED not bright when GPS not fixed,flashing when fixed
• Current: Capture 50mA/5.0V
• VCC: DC Voltage 3.0V-5.5V
• Weight W/O wire: 10g
• Dimensions: 28x28x10mm
• Acquisition Time
• Cold Start: 26s
• Warm start: 25s
• Hot start: 1s
• UBLOX protocol /NMEA-0183

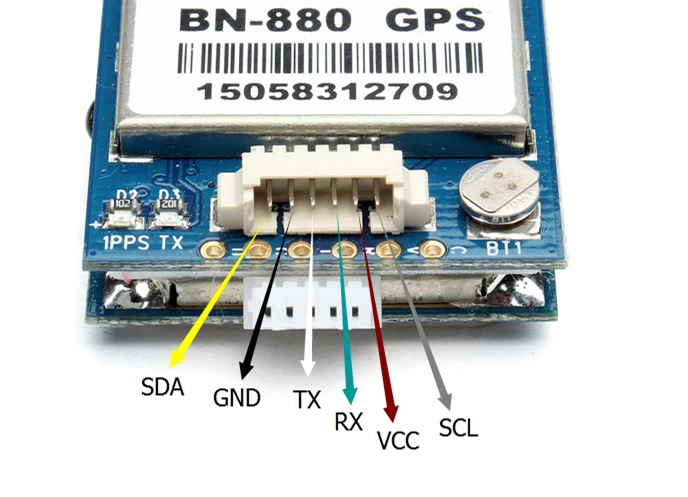

• Pins: SDA,GND,TX,RX,VCC,SCL with 1.25mm spacing

Receiving Format

• GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
• Frequency: GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
• Channels: 72 Searching Channel

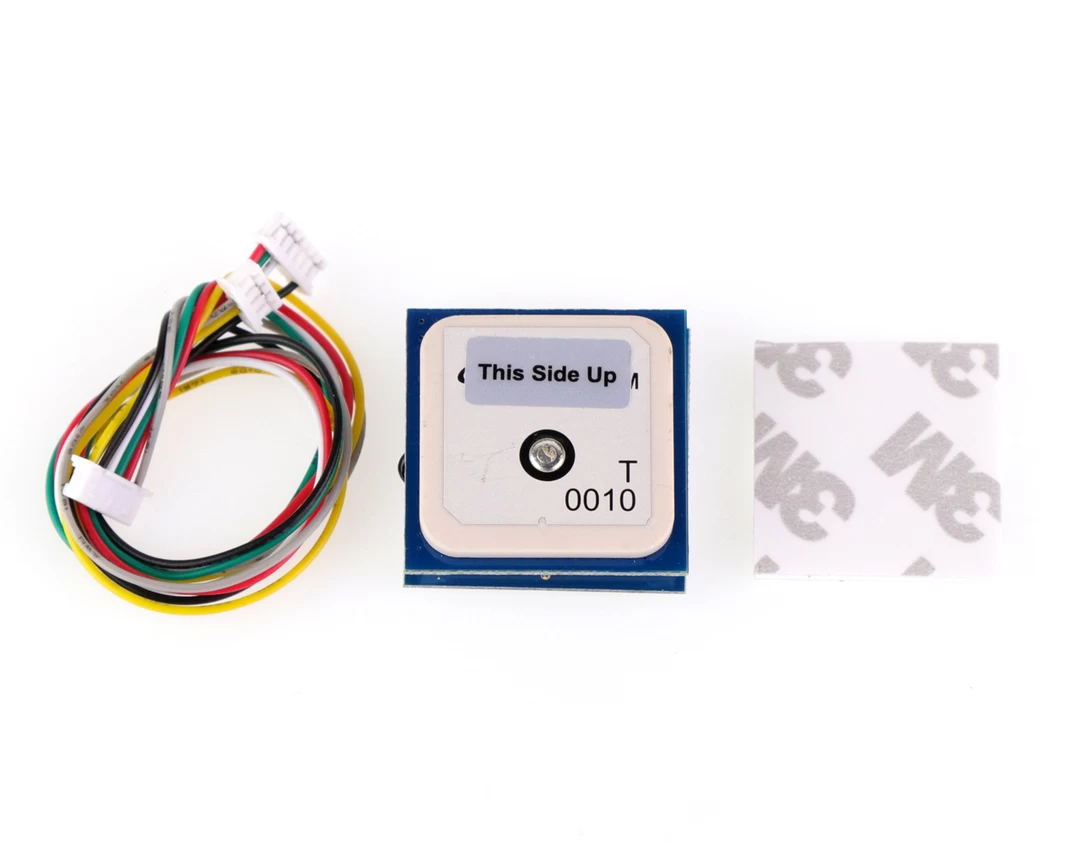

Package Includes

• 1X MINI GPS
• 1X Cable
• 1X Adhesive pad
