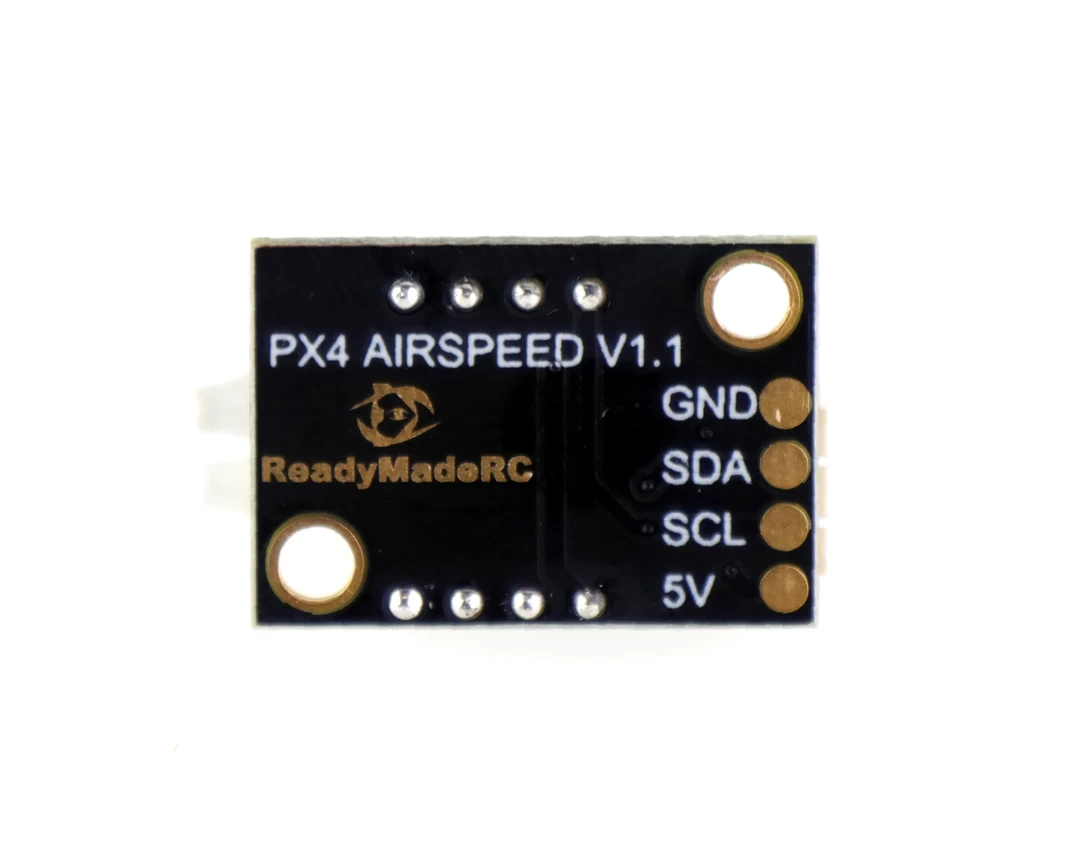

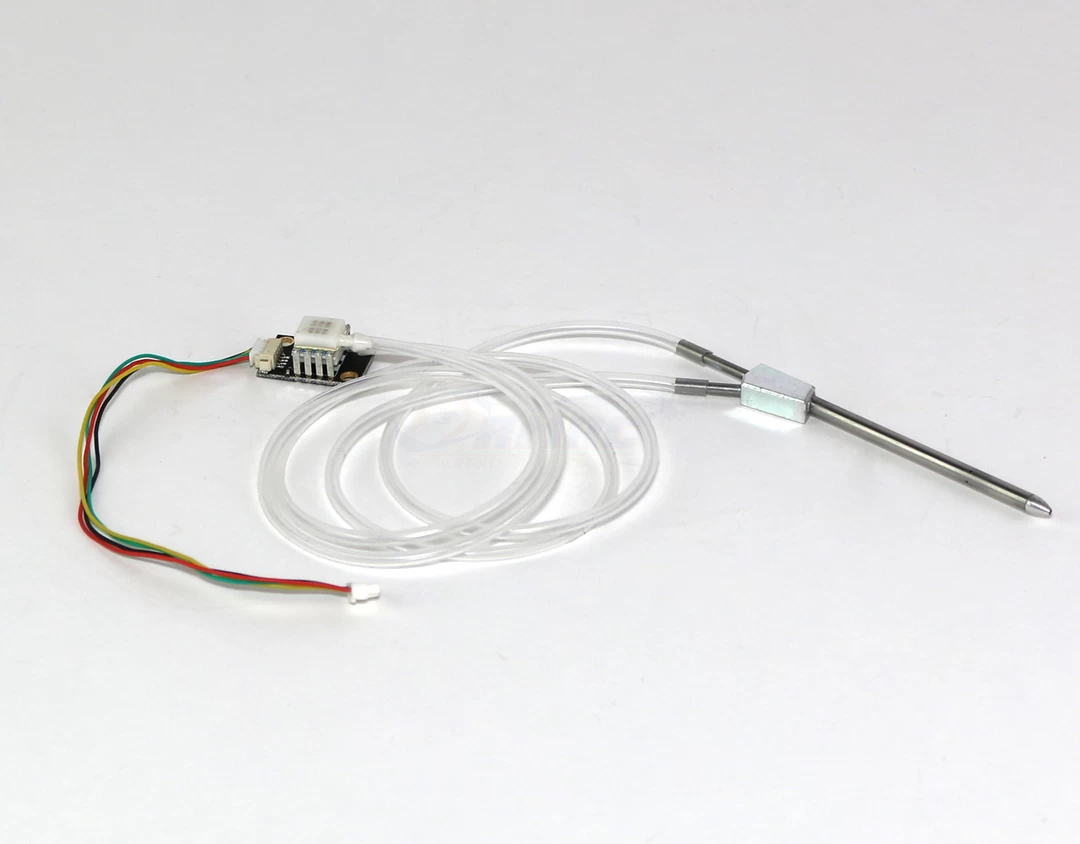

RMRC Digital Airspeed Sensor For Pixhawk & INAV With Pitot Tube

This digital airspeed sensor is designed for the Pixhawk II and plugs in directly without the need to change connectors. Digital offers greater accuracy readings over traditional analog sensors. It also works great for Inav!

Includes

• Digital Air Speed Sensor
• Tubing (enough for 0.5m)
• 4 Pin Cable (15cm)
• Works with: Pixhawk II (2.1), Inav
• JSH GH Connector

Tubing size: 2mm ID, 4mm OD

Max Ratings

Parameter	Conditions	Min	Max	Unit	Notes
Supply Voltage	T = 25 °C	4.5	5.5	V
Output Current	T = 25 °C		3	mA
Storage Temperature		-40	+125	C
Humidity	T = 25 °C		95	%RH	Non Condensing
Overpressure	T = 25 °C	Not to exceed 300		psi
Burst Pressure	T = 25 °C		20	psi
ESD	HBM	-4	+4	kV	EN 61000-4-2

Interface: I²C (SCL & SDA)
Accuracy: ±0.25% SPAN
