RMRC – 1.3GHz 800mW Video Transmitter – USA Channels

The RMRC 800mw 1.3GHz Video Transmitter is known as an ultra reliable work horse in the FPV community. Now we have made it even better by including a flexible PCB dipole antenna which has been perfected by Video Aerial Systems, included a cable with silicone wires that is actually useful for your setup, and decreased the price for you! On top of all that, these new transmitters actually output close to 800mw instead of the typical power of around 550-600mw found on most others. This is not the same as the cheap copies available on eBay and from other overseas sources. Buy the best 1.3GHz available on the market today!

Specifications

• Voltage: 12V at 0.7A
• Connector: Standard SMA
• Weight: 21.2g (Transmitter only)
• Dimensions: 50 x 25.7 x 8.3mm (Not including SMA)
• Pinout from Top to Bottom: Ground/Black, Audio/White, 12V/Red, Video/Yellow
• Actual measured output power is around 750mw

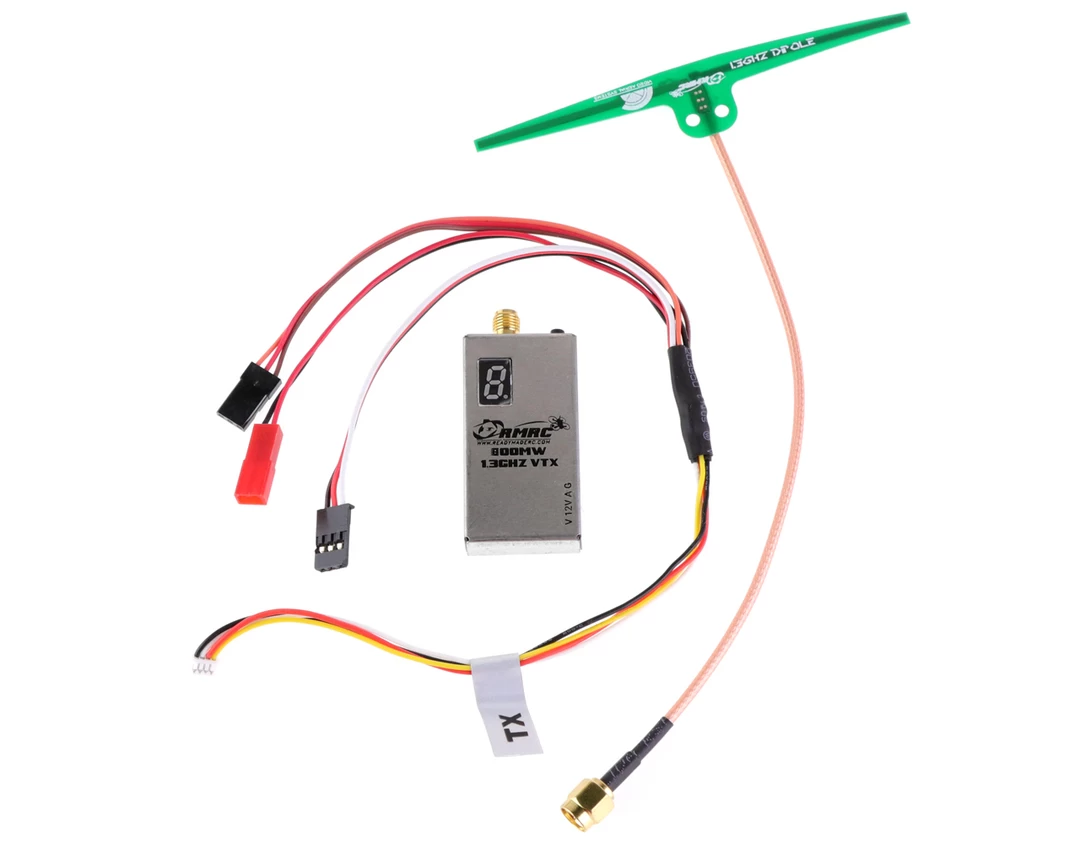

Includes

• 800mw 1.3GHz Transmitter as pictured

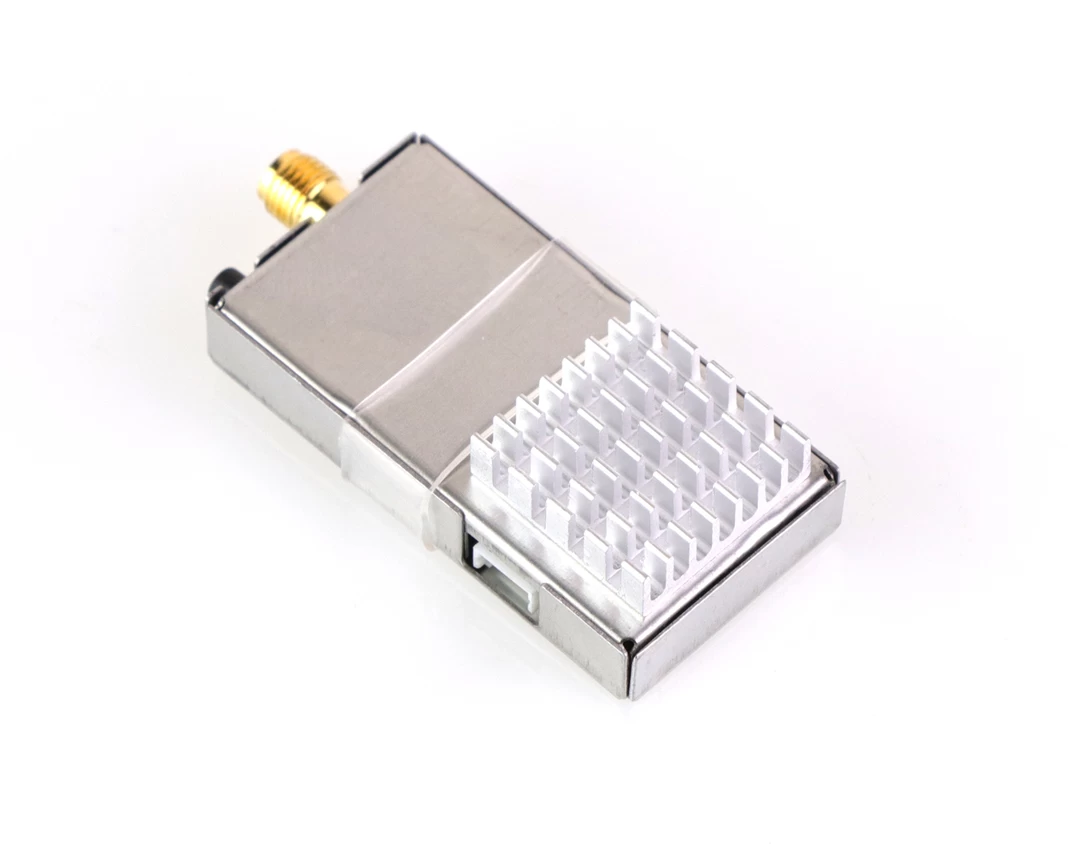

• Stick-on Heat Sink 20x20x5mm
• RMRC/VAS 1.3GHz Linear Dipole Antenna
• RMRC Mini Transmitter Cable

Recommended

• RMRC 900MHz-1.3Ghz Receiver w/1258 with Custom Comtech Tuner
• 1.1-1.3GHz 8dBi Patch Antenna – SMA Male

 Note: We consider a transmitter to be out of spec at ±10% of the labeled output power. Do not power this unit for long periods of time without airflow.

Oscar Liang Review

Channel Selection:

• 9: 1280MHz
• d: 1258MHz
