RMRC – 1.3GHz 400mW Video Transmitter – USA Channels

The RMRC 400mw 1.3GHz Video Transmitter is known as an ultra reliable work horse in the FPV community. Now we have made it even better by including a flexible PCB dipole antenna which has been perfected by Video Aerial Systems, included a cable with silicone wires that is actually useful for your setup, and decreased the price for you! On top of all that, these new transmitters actually output ~400mw instead of the typical power of around 300-350mw found on most others. This is not the same as the cheap copies available on eBay and from other overseas sources. Be sure to keep air flowing over transmitter to avoid overheating. Buy the best 1.3GHz available on the market today!

Specifications

• Voltage: 12V at 0.7A
• Connector: Standard SMA
• Weight: 21.2g (Transmitter only)
• Dimensions: 50 x 25.7 x 8.3mm (Not including SMA)
• Pinout from Top to Bottom: Ground/Black, Audio/White, 12V/Red, Video/Yellow

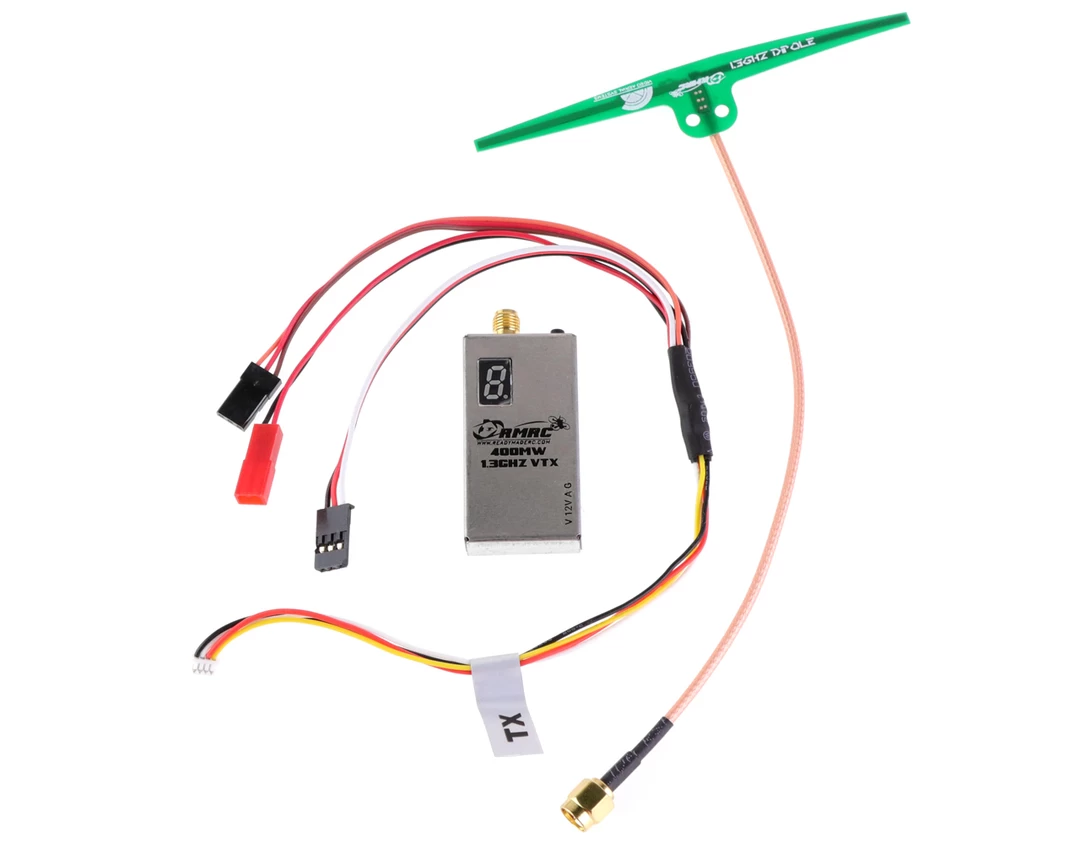

Includes

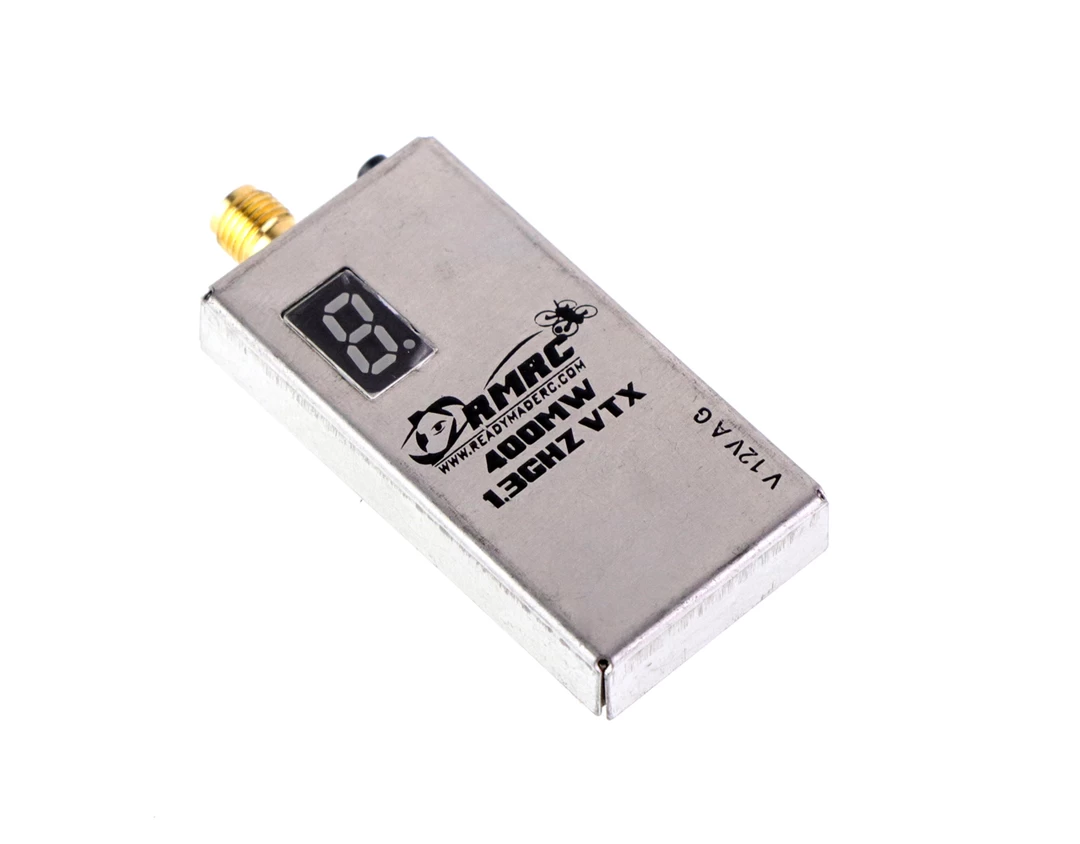

• 400mw 1.3GHz Transmitter as pictured

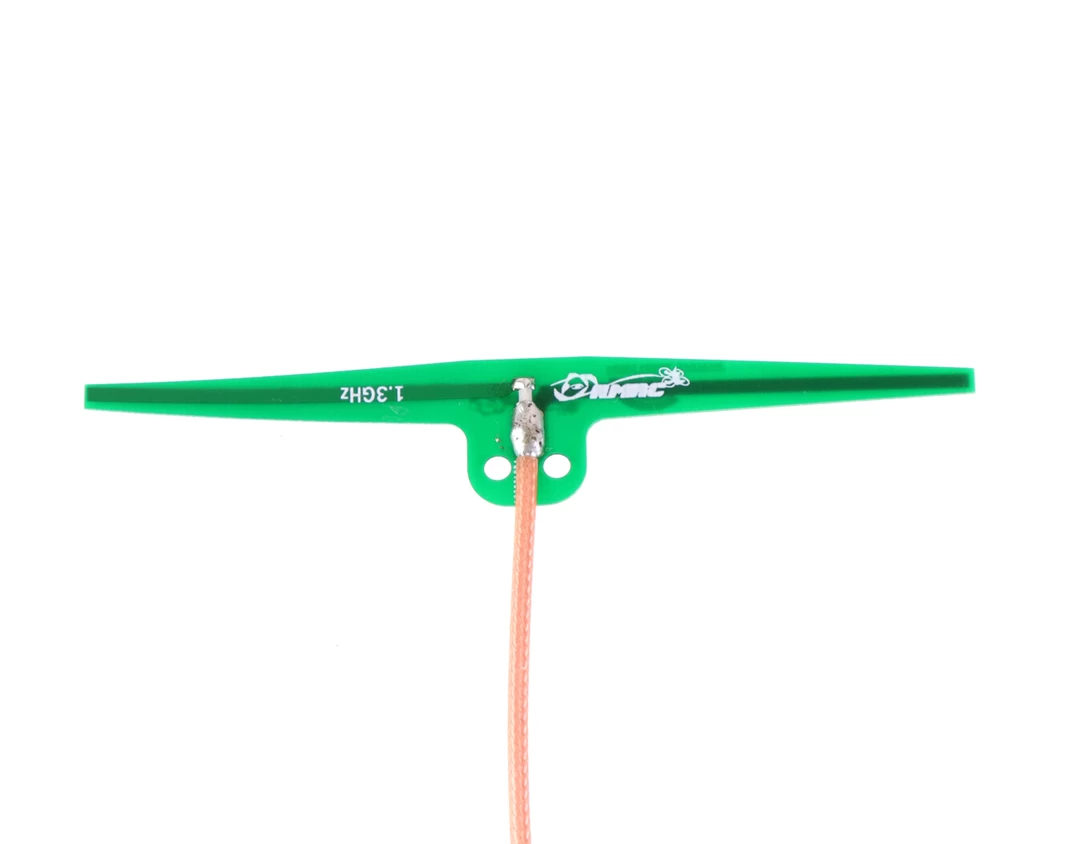

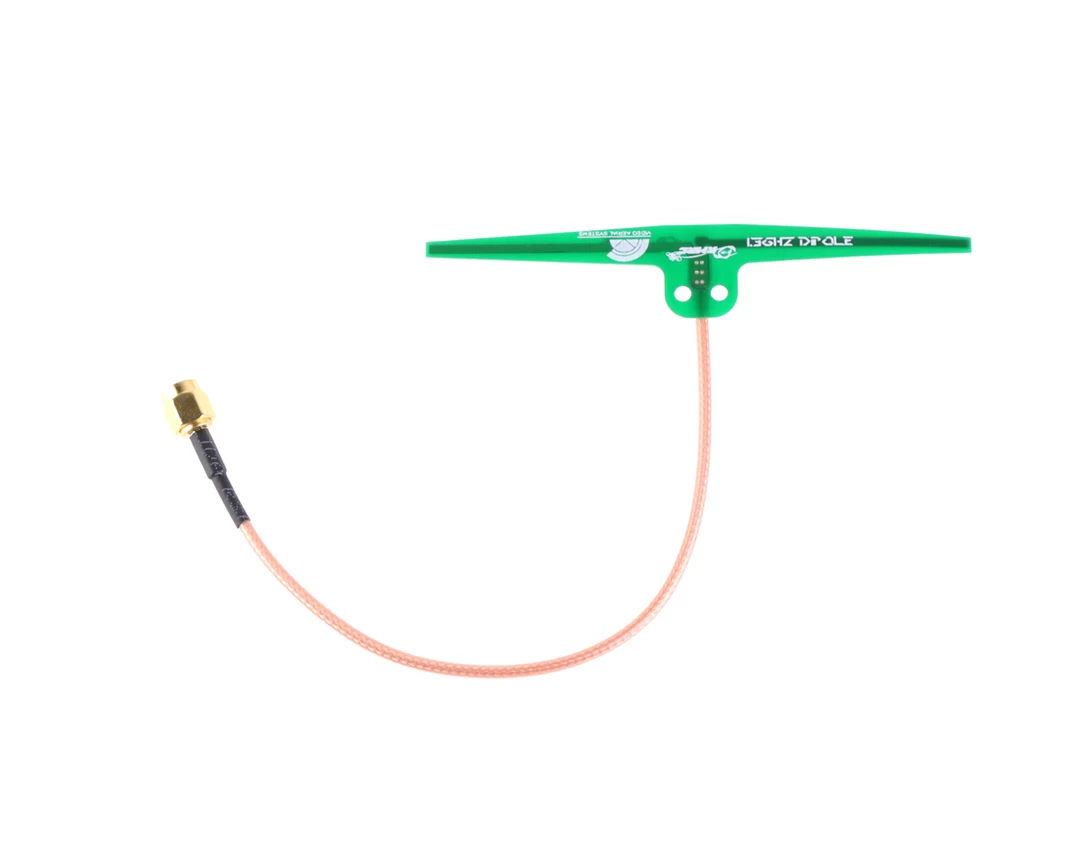

• RMRC/VAS 1.3GHz Linear Dipole Antenna
• RMRC Mini Transmitter Cable

Recommended

• RMRC 900MHz-1.3Ghz Receiver w/1258 with Custom Comtech Tuner
• 1.1-1.3GHz 8dBi Patch Antenna – SMA Male
• Heat Sink with Adhesive Backing – 14x14x8mm

 Note: We consider a transmitter to be out of spec at ±10% of the labeled output power.

Oscar Liang Review

Channel Selection:

• 9: 1280MHz
• d: 1258MHz
