RFDesign RFD900x V2 TXMOD Bundle

The RFDesign TXMOD Bundle is an all in one long range telemetry data and RC control system.

Designed to work in conjunction with any Radio Controller capable of accepting JR Transmitter Modules, the RFD TX Module can transmit the PPM stream from the controller to the vehicle via the RFD900X long range telemetry modem while also receiving telemetry data received from the aircraft.

The module’s built in WiFi link allows for simple webpage based configuration and broadcasting of telemetry data to a computer or smart device.

It is a JR style module that plugs into any RC transmitter that has can accept JR style modules (Frsky Taranis, JR, Frsky Horus)

It provides a bridge between the RC transmitter and aircraft while carrying RC PPM data and mavlink telemetry streams at the same time.

Please see the files.rfdesign.com.au website for datasheets and user documentation. http://files.rfdesign.com.au/

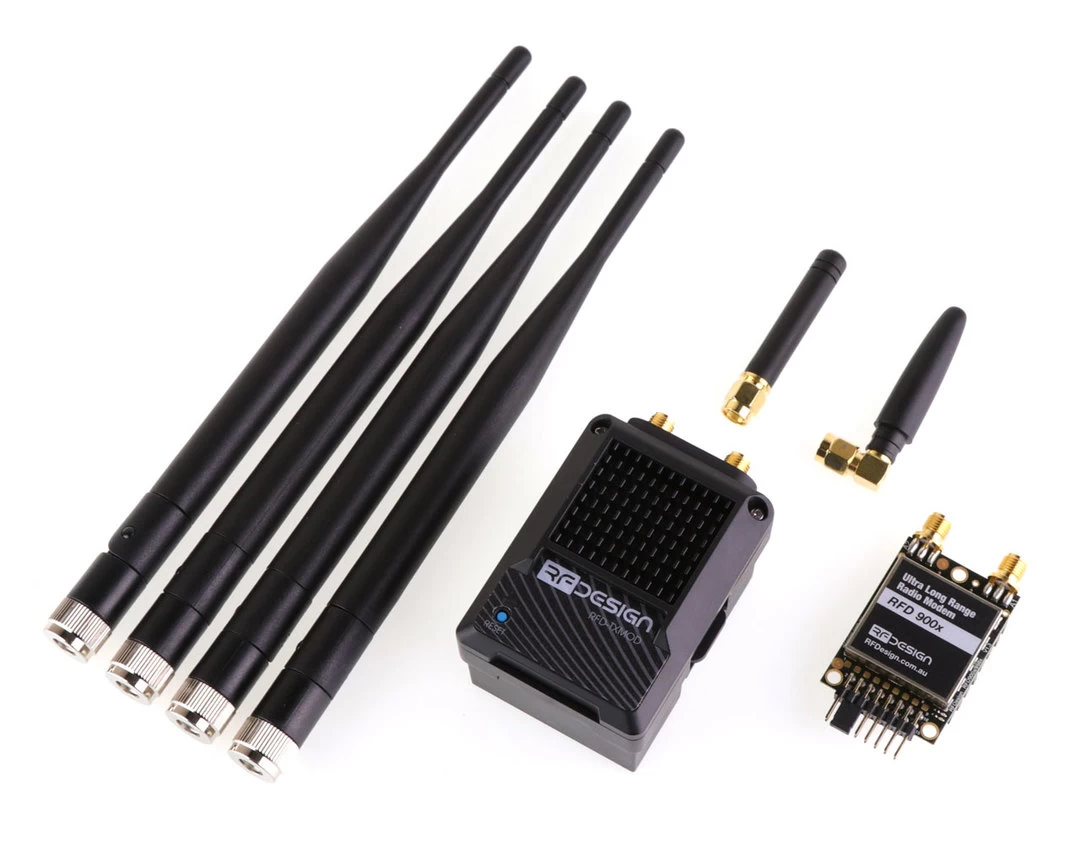

The TXMOD kit consists of:

• 1 x RFD TXMOD
• 1 x RFD900x Radio Modem with new version v3.01 or later firmware
• 1 x Antenna, 868-900MHz Quarter wave monopole 2.1dBi
• 1 x Antenna, 868-900MHz Right Angle Quarter wave monopole 2.1dBi
• 4 x Antennas, 868-900MHz Half wave dipole 3dBi
