OMP Hobby ZMO Pro VTOL FPV DJI O3 Combo

Package Contents (This Combo)

• ZMO VTOL Airframe with 1x Battery and Carrying Case

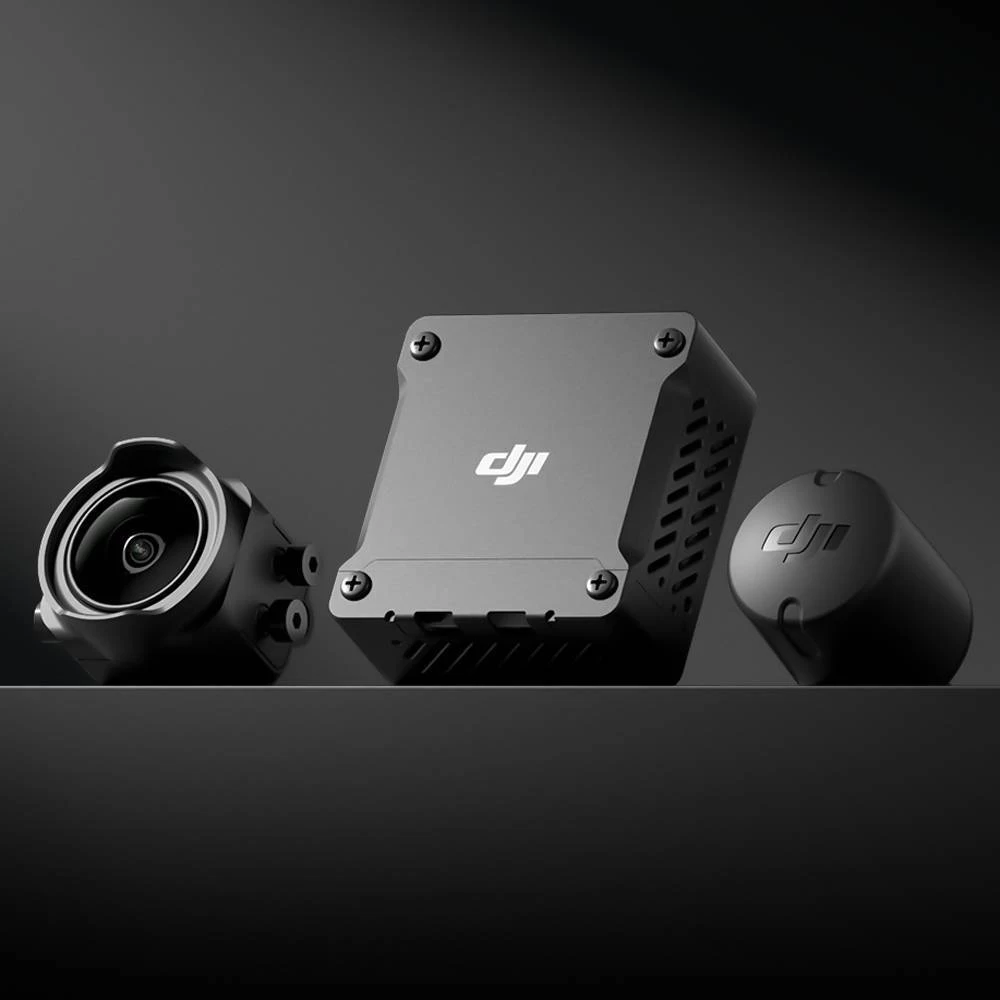

• DJI O3

Introducing the new 2023 ZMO FPV Pro VTOL UAV!

Redesigned with a new flight controller, this new version offers more flexibility and now with full Ardupilot support.

Great for the hobbyist and for commercial UAV use, there are multiple versions available to fit your application.

Core Technologies: More Stable and Reliable

With a top speed of 110km/hr (68mph), the ZMO FPV Pro VTOL is cable of flight ranges up to 60km (37mi) and flight times up to 60 minutes.

New GPS utilizes Anti-electromagnetic interference measures with a patented design that integrates the airspeed sensor with the GPS receiver and industrial IMU.

Depending on the version purchased, many different analog and digital video technologies are supported including Mavlink, DJI VTX, Walksnail, and more.

Design offers one-click vertical takeoff and landing (VTOL). The modular design and included carrying case allows for quick assembly in less than 3 minutes.

Manual flight modes are supported, and it also has support for S.Bus and CRSF protocols.

Firmware is a customized Ardupilot 4.3 supporting mission planner and QGC ground stations. Make sure you buy it from Ready Made RC for the best support!

A Professional VTOL FPV Airplane for UAV Pilots and Serious Hobbyists

The ZMO Pro is a VTOL airplane with a tricopter configuration and tilt-rotors. This proficient design makes the aircraft highly efficient and easy to fly, minimizing difficulties in aircraft takeoff, landing, and pilot operations. Presently the following flight modes are provided to users:

1. Q-stabilize of multirotor mode: gyro governs the attitude, pilot controls flight altitude.
2. Q-loiter of multirotor mode: GPS and gyro work together. Aircraft hovers at a fixed position if no control input, suitable for beginners.
3. FBWA of airplane mode: gyro stabilized flight. Altitude and speed are controlled by pilot.
4. Cruise of airplane mode: Altitude and speed are maintained by flight controller. Pilot only needs to control directions.
5. Acro of airplane mode: gyro stabilization is disabled. Pilot has full control of the aircraft. This mode can be unlocked in ground station program.

New Upgraded Professional Flight Controller System

Based on customized ArduPilot and integrated with industrial avionics, the ZMO Pro is capable of fully autonomous flight, intelligent risk management, multiple safety protection mechanisms, making the flight a pleasant experience.

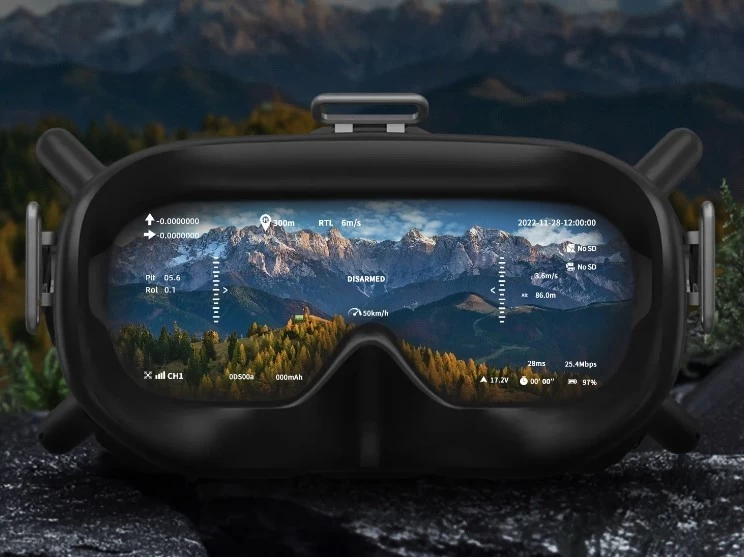

Immersive Flight Control

With FPV goggles, it is like sitting in the cockpit of a real aircraft, enjoying a 120FPS real-time video of a huge 150 angle view, with detailed flight information displayed on the screen, and experiencing the excitement of flight.

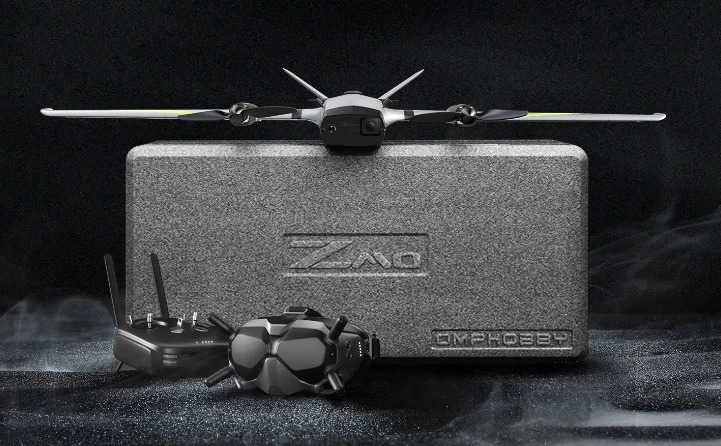

A Durable Foam Box for Easy Transportation and Protection

Modular design for quick assembly in less than 3 minutes. Less time to setup the aircraft, more time to enjoy the flight.

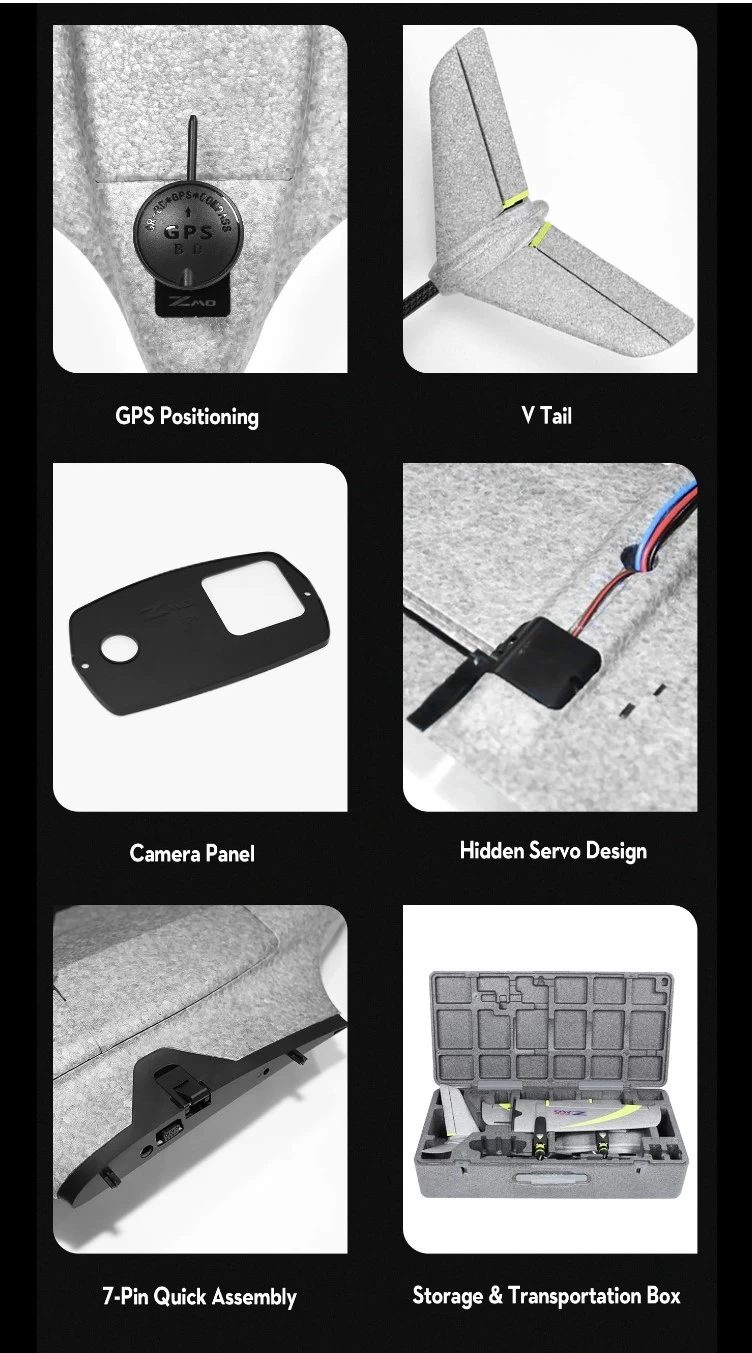

Product Details

The precision designs and engineering were created with the pilots in mind.(Optional in different versions

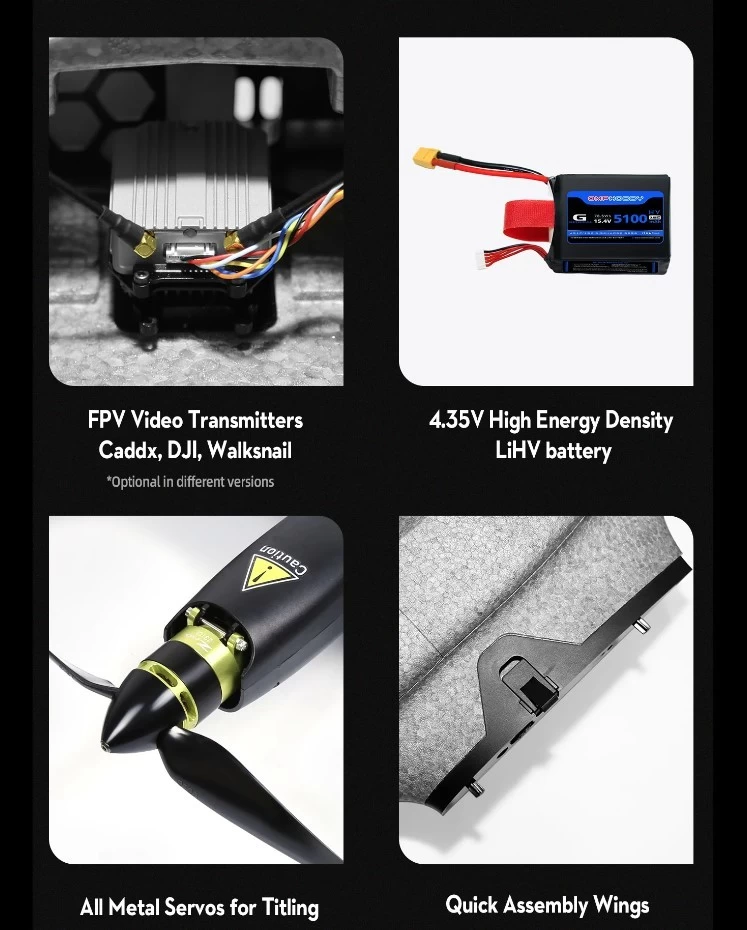

• FPV Video Transmitters Caddx, DJI, Walksnail (Optional in different versions)
• 4.35V High Energy Density LiHV battery
• All Metal Servos for Titling
• Quick Assembly Wings
• GPS Positioning
• V-Tail
• Camera Panel
• Hidden Servo Design
• 7 Pin Quick Assembly Wing Plugs
• Storage & Transportation Box

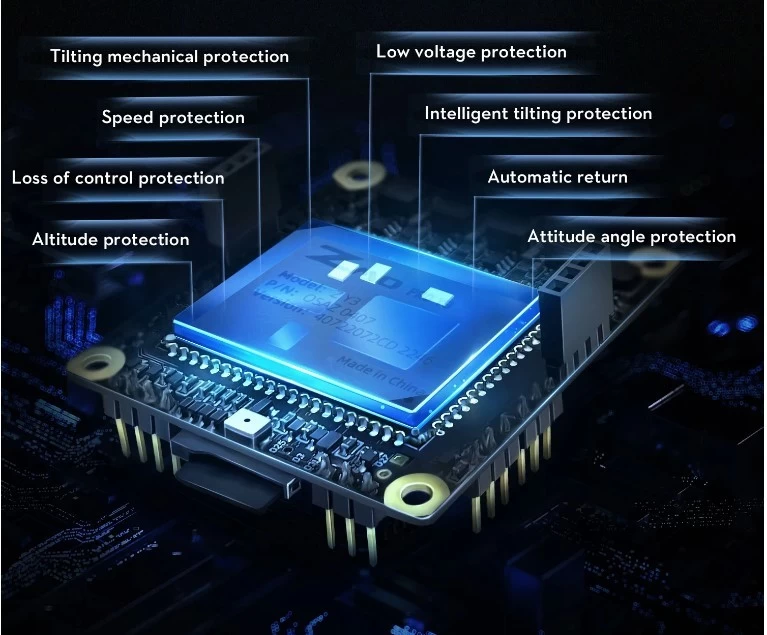

ZMO Pro Safety Protections

The new flight control of ZMO Pro is based on open source software, and provides multiple safety protections:

• Tilting mechanical protection
• Low voltage protection
• Intelligent tilting protection
• Automatic return to home
• Attitude angle protection
• Speed protection
• Loss of control protection
• Altitude protection

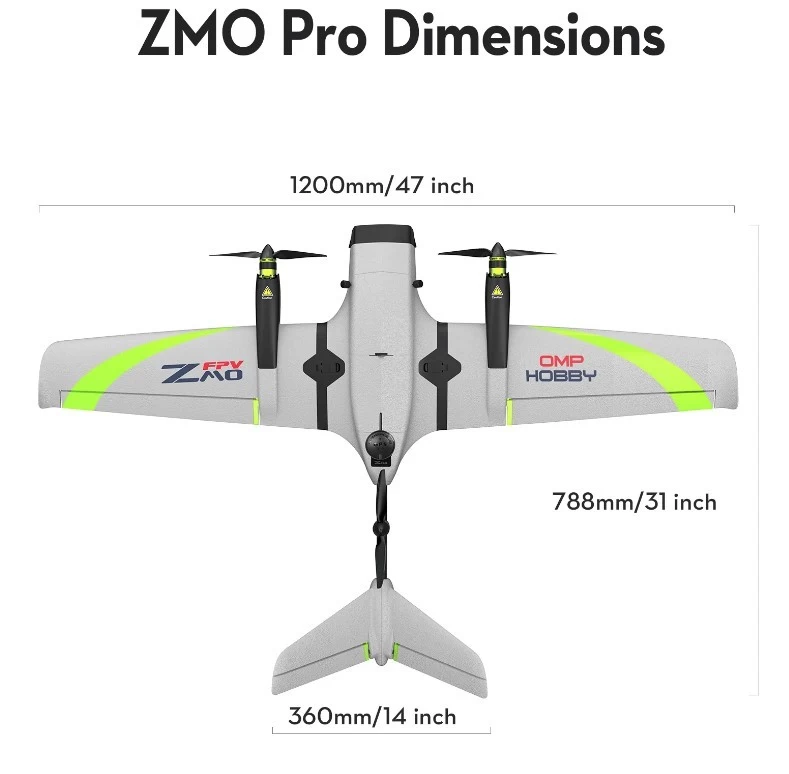

ZMO PRO Specifications

• Wingspan 1200mm
• Propellers 8*6R/8*6L/8*3.8
• Length 788mm
• Battery 4S 5100mAh LiPo
• Height 168mm
• FC System ZMO pro Y3
• Takeoff Weight Approx. 1400g
• Flight time 60min
• Motor 2310
• Flight Range 60km+
• Material Industrial EPP
• Top Speed 110km
• GPS Position Accuracy 2-3m
• Cruising Speed 43km/h
• One click takeoff & Landing Yes
• One click Return to home Yes
• Route planning Yes
• Airspeed Yes
• OSD Yes
• Payload 400g

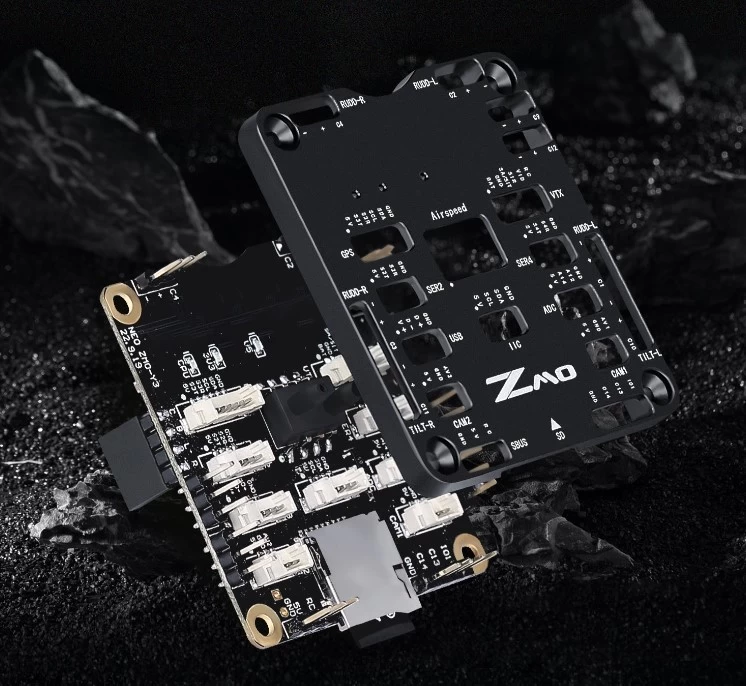

Flight Controller Specifications

1. UART 4
2. RC 1
3. I2C 2
4. GPS 1
5. ADC 2
6. SWD 1
7. RSSI 1
8. USB 1
9. PWM output 14
10. Airspeed sensor port 2
11. TF Card 1
12. Analog video input 2
13. Analog video output 1

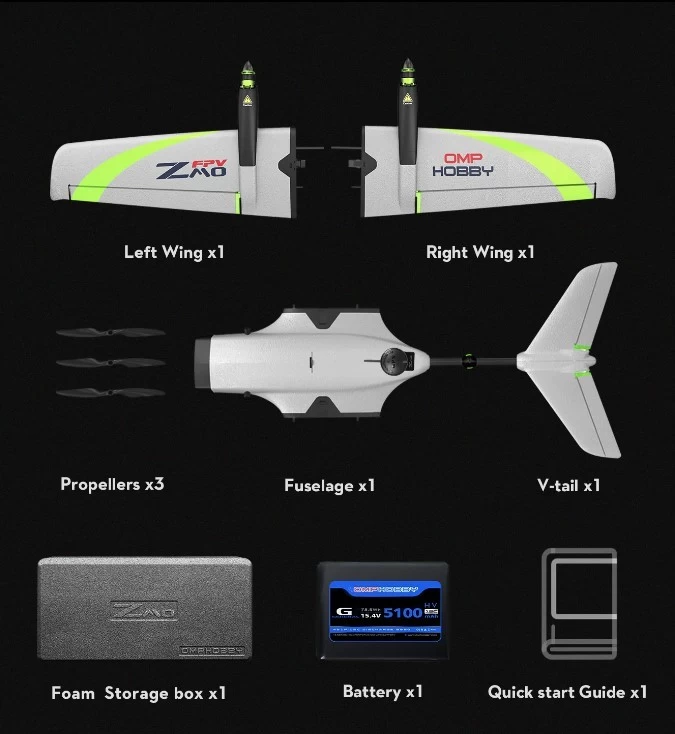

Package Content (Generic)

• Left Wing x1
• Right Wing x1
• Propellers x3
• Fuselage x1
• V-Tail x1
• Foam Storage and Transport Box x1
• Batter x1
• Quick Start Guide x1

Package Additional Contents (This Combo)

• DJI O3
