No Brand Pixhawk 2.48 With M8N GPS, Power Module, Shock Absorber

Pixhawk PX4 Flight Controller Autopilot PIX 2.4.8 32 Bit Flight Controller Board with accessories.

Yep, this is a cheap Pixhawk 4 that can be sourced from several places overseas. It’s cheap and it works! Recommended for fixed wing aircraft only.

Specifications

Microprocessor

• 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
• Frequency: 168MHZ, 256K RAM
• 32 STM32F103 backup processor

Sensor

• L3GD20 3-axis digital gyroscope 16
• LSM303D 3-axis accelerometer 14 / Magnetometer
• MPU6000 6-axis accelerometer / magnetometer
• MS5607 precision barometer
  Interface
• 0.5 high voltage compatible UART 1, 2 with hardware flow control
• 2 CAN
• Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
• Futaba SBUS compatible inputs and outputs
• PPM Signal Input
• RSSI (PWM or voltage) Input
• I2C & SPI
• 3.3 and 6.6VADC input
• External MICRO USB Interface

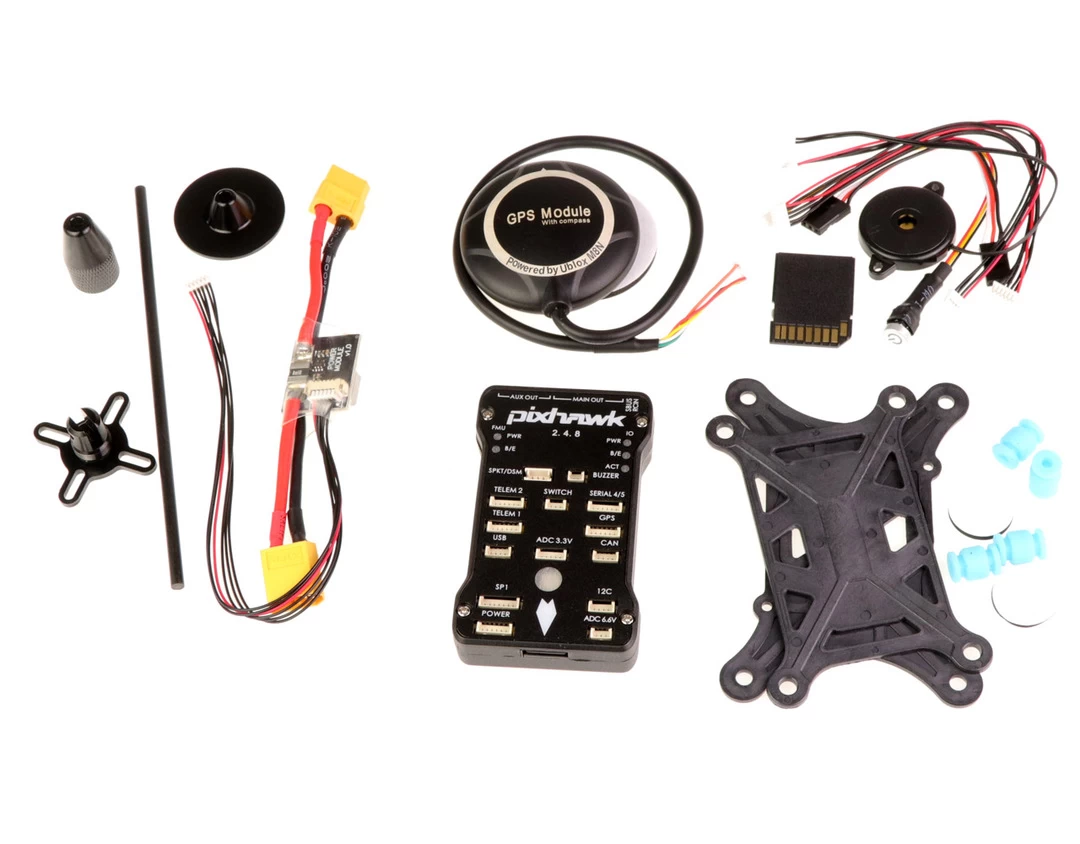

Packing list:

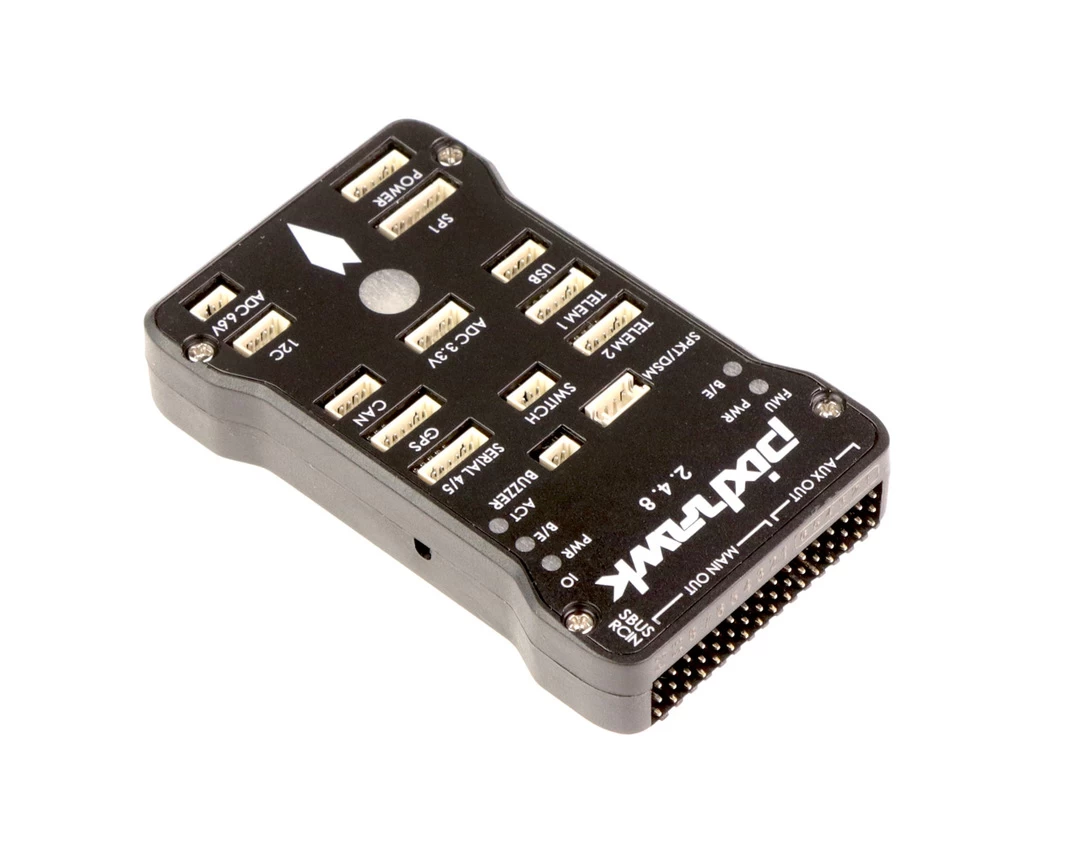

• 1 x Pixhawk 2.4.8 32bit ARM Flight Controller
• 1 x Original shell
• 1 x Safety button
• 1 x Buzzer
• 1 x 16G Micro SD card with reader (IO firmware has written)
• 1 x Pixhawk I2C Splitter Expand Module
• 1 x Servo cable
• 1 x 4pin turn 4pin cable
• 1 x 3pin DuPont line
