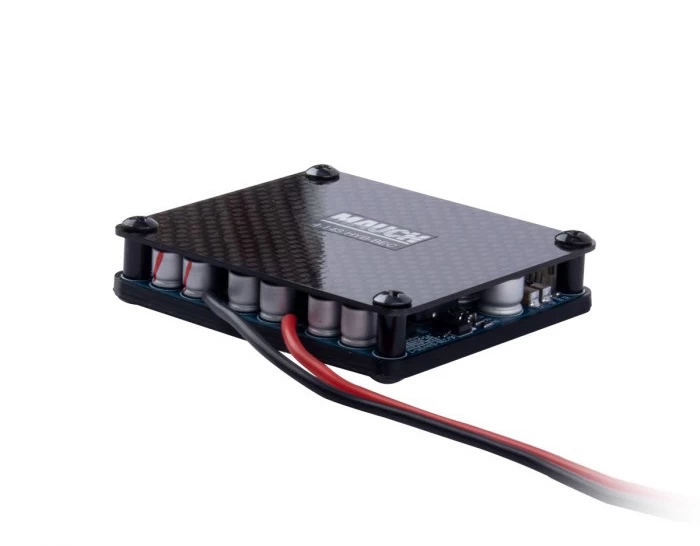

Mauch 024 BEC

Mauch 024 Battery Eliminator Circuit

Features

• Input 4-14S LiPo / max. 60V.
• Output 2x 5.30V / 1x 12.0V / 3A -> +/- 0.05V –> Ripple 1mV @ 1.5A output current.
• Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2/X8 and output conector with Molex Clik-Mate 4p.
• Blue power “ON’ LED.
• 59mm x 66mm x 13mm / 57g with enclosure(without cables)

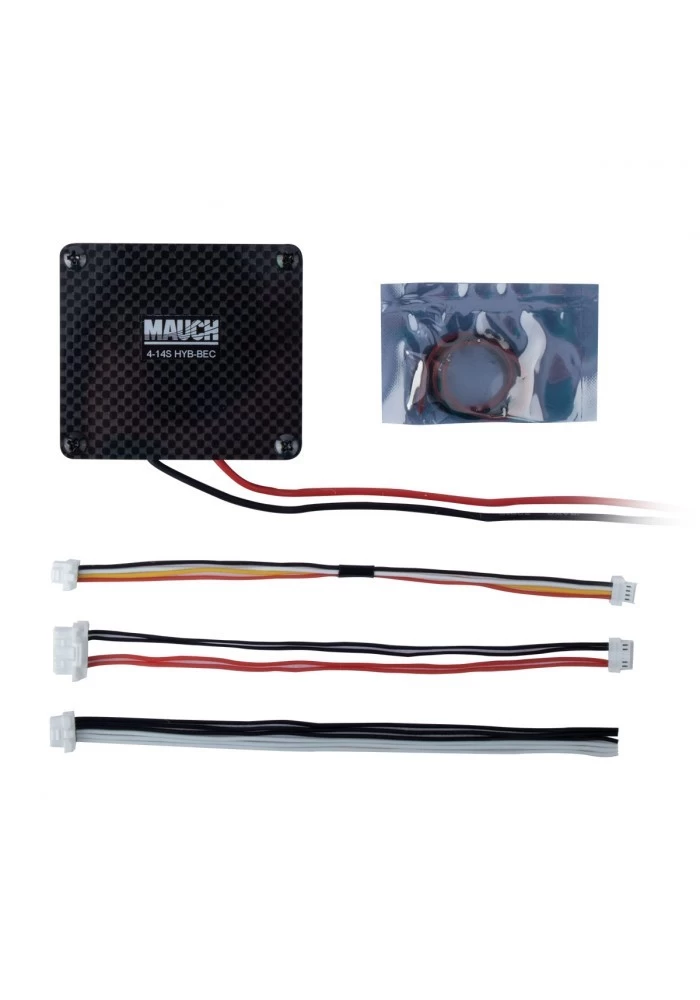

Includes

• 1x 021: PL 4-14S HYB-BEC / 1x 5.3V / 3A
• 1x 040: PL – Series sensor cable / L=150mm
• 1x 050: Backup cable for Pixhawk 2.1 / L=150mm
• 1x 5.0V output cable (white/black) one site Molex Clik-Mate 1.25mm-6p, the other site open. / L = 150mm
• 1x Enclosure

Note: The BEC is not delivered with a flight controller cable
