Matek XT60 PCB With Voltage Spike Filter 6S Max. 5sets/pkg

Matek XT60 PCB With Voltage Spike Filter 6S Max. 5sets/pkg - Image 2

Matek XT60 PCB With Voltage Spike Filter 6S Max. 5sets/pkg

Original price was: $6.99.Current price is: $4.89.

SKU: XT60-TVS Categories: Electronics & Wiring, Power Tag: Matek Systems

100% environmentally friendly material
The quality solution for all your needs.
No-Questions-Asked Returns
Quality Meets Affordability

Description
Reviews (0)

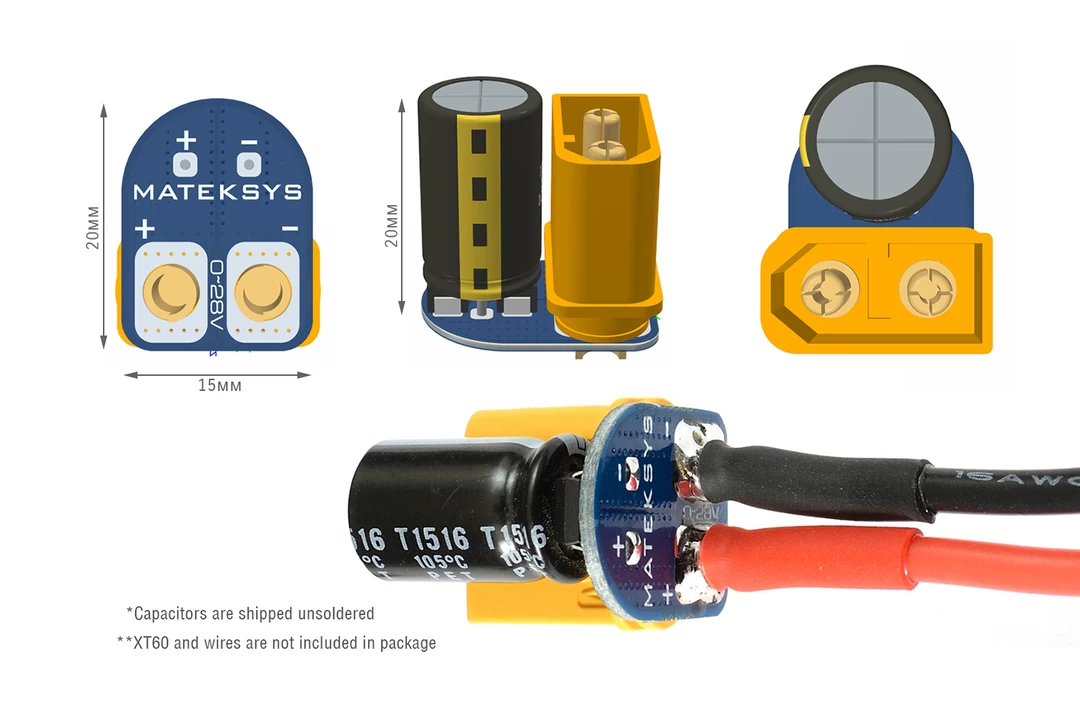

VOLTAGE SPIKE FILTER, XT60-TVS

The Matek XT60 TVS is designed to protect your valuable electronics from voltage spikes during power up.

2x high-power TVS diodes and 1x 470uF low ESR capacitor on board
TVS can absorb huge voltage surge at the moment of plugging battery to protect the connected components.
Low ESR capacitor will reduce the voltage spikes and ripple caused by ESC.
Maximum Operating Voltage: 28V (6S LiPo)

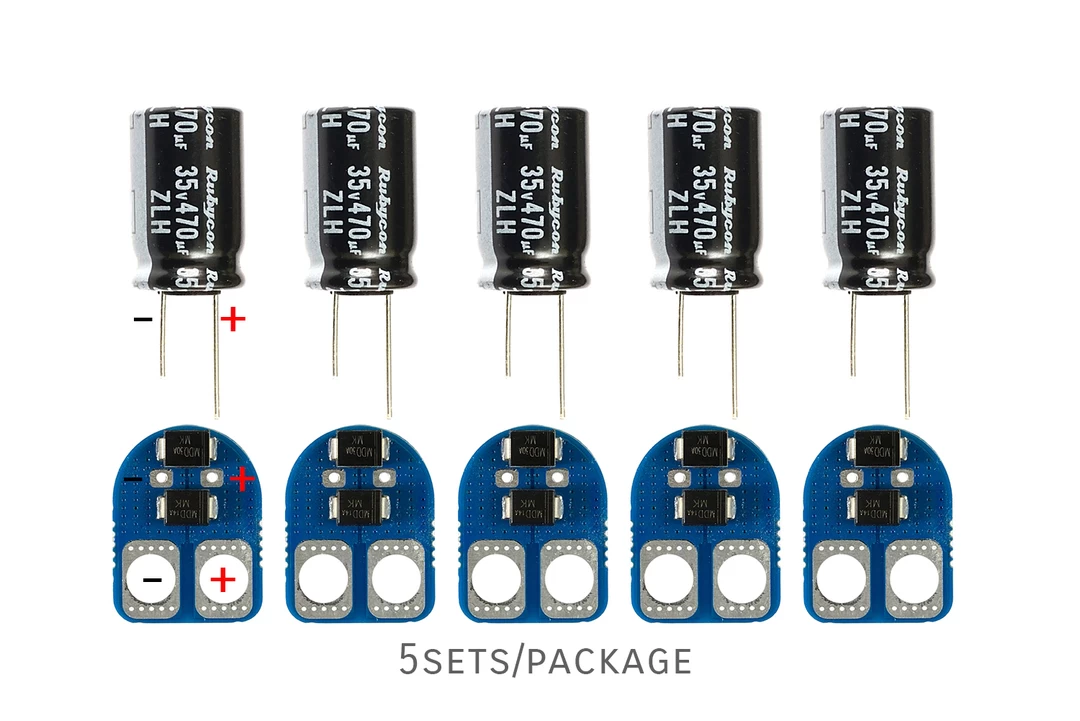

Packing: 5x PCB w/TVS, 5x 470uF Rubycon ZLH series electrolytic capacitor.

What is a TVS Diode and How Does it Work?

The Transient Voltage Suppression diode (TVS) is a component that is commonly used for transient protection. (Not to be confused with zener diode or schottky diode.) It consists of a p-n semiconductor junction that becomes conductive during a transient voltage spike. In normal circumstances, it appears as an open circuit despite a small leakage current.
When the voltage on the transient voltage suppressor rises across its threshold voltage(Breakdown Voltage), the avalanche effect of the semiconductor causes the p-n junction to become a low-impedance path that channels away the excessive current. The response time of the TVS diode is extremely fast, often expressed in picoseconds.
The placement of the TVS diode is also important. It is a good practice to place TVS diodes as close to the power source as possible.
