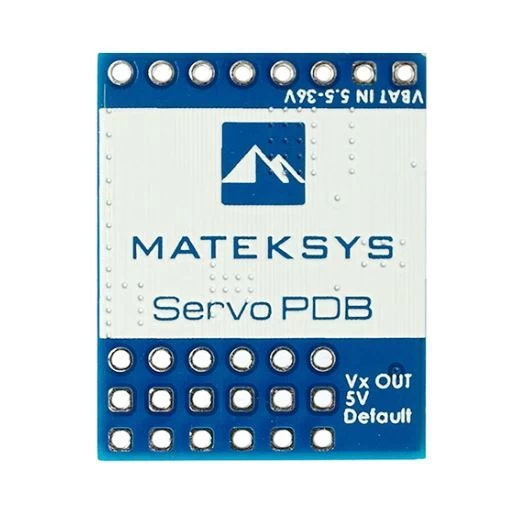

Matek Servo PDB, W/ BEC 5.5-36V To 5-8.2V

Specifications

• 5.5V to 36V Operating Input Range

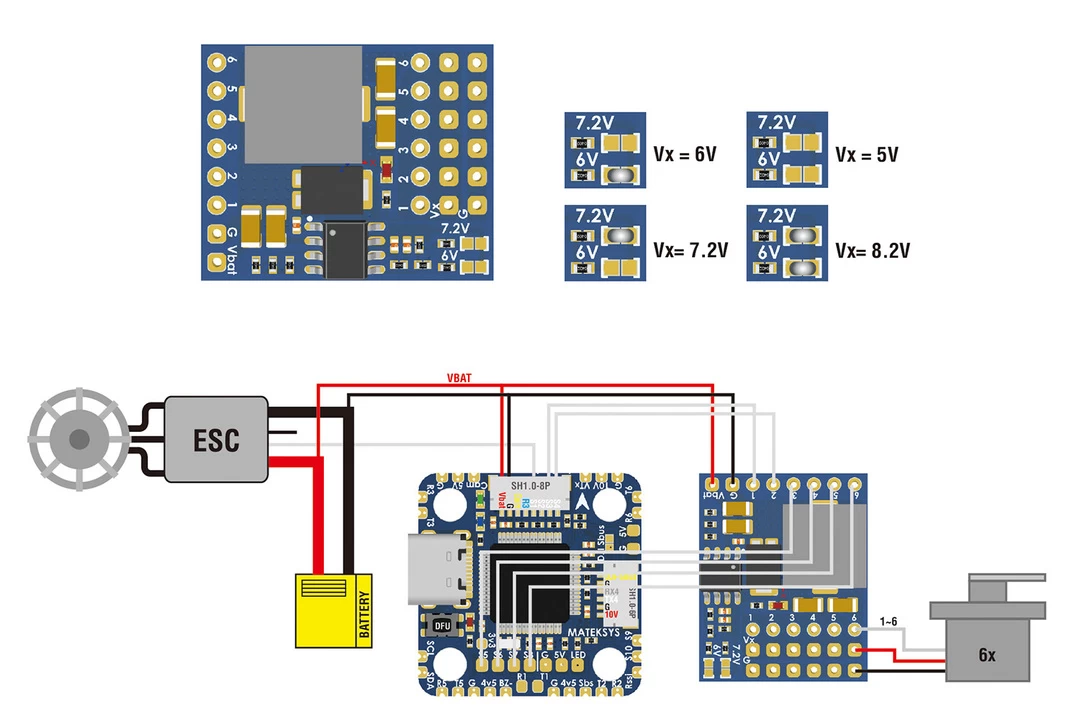

• Vx for servos,  5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
• 4A Continuous load current, 7A Burst
• Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage
• Output Short-circuit tolerant (3 seconds)
• No protection for reversed input polarity
• Pins distance: 2.54mm

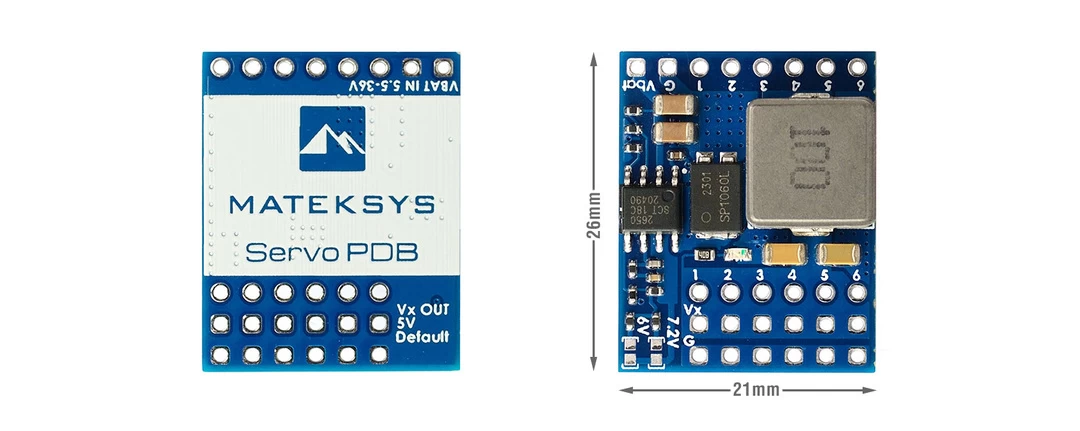

• Size & Weight: 26 x 21 x 5mm, 4g
• Packing: 1x SVPDB-8S,  Dupont 2.54mm pins

Applications

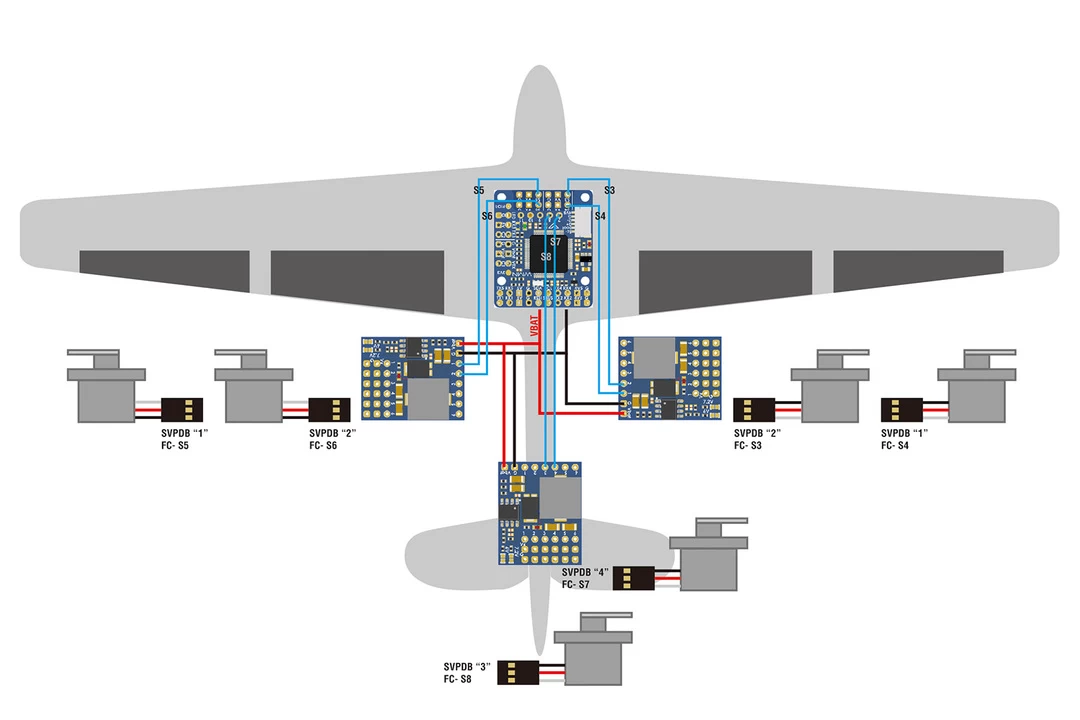

• Flight controllers without dedicated BEC for servos
• Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
