Matek CRSF To PWM Converter 10 Channel + Current Sensor

Matek CRSF to PWM Converter 10 Channel + Current Sensor

• Compatible with CRSF protocol receiver only
• Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
• 10x PWM outputs
• PWM frequency configurable (50Hz default, 100,160,330, 400Hz)
• 2x UARTs (for Receiver and GPS)
• Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
• 36V Max. battery voltage sense (1K:10K voltage divider built-in)
• Current sensor built-in (90A continuous /220A Peak),  current scale = 150 by default
• Vbat and Current sensor scale configurable
• Failsafe value auto set
• Firmware upgradeable
• Rated voltage: 4~9V @5V pad, 0~36V @BAT+

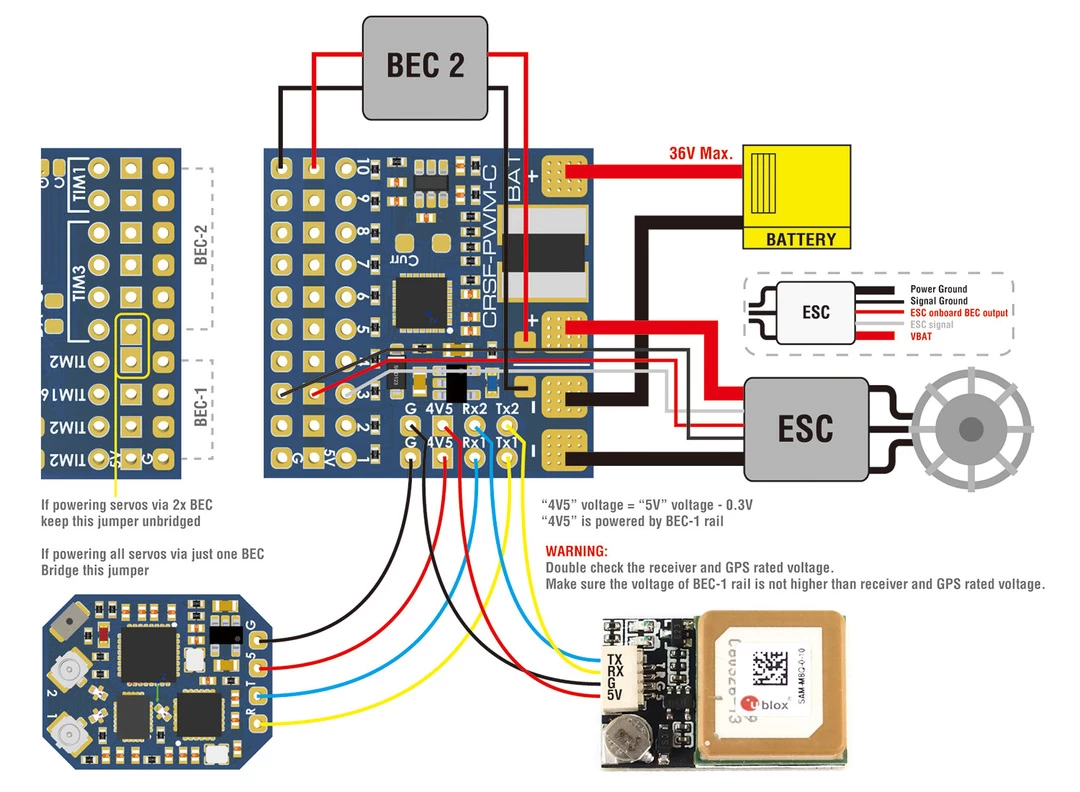

• No 5V regulator built-in, Servos must be powered via 5V pad by external 5V source.

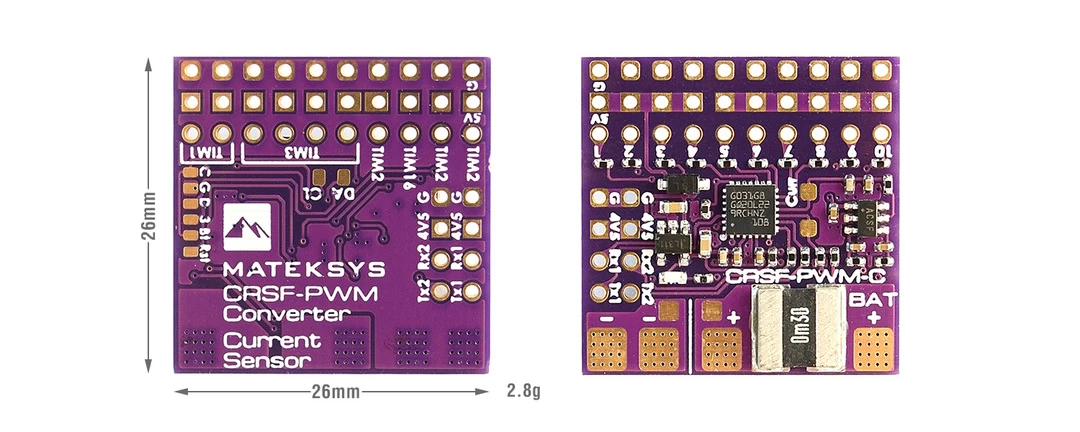

• 26mm x 26mm, 2.8g

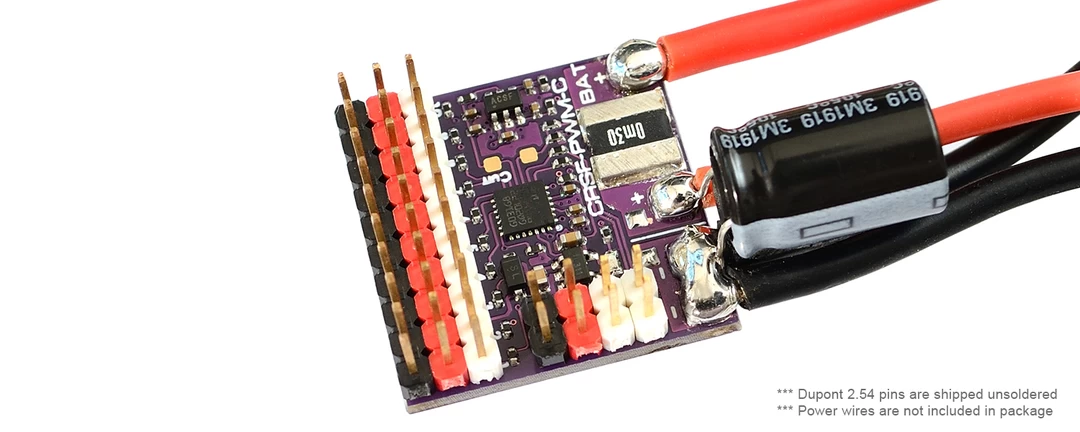

• Packing: 1x CRSF-PWM-C,  1x low ESR capacitor,  Dupont 2.54 pins
