Matek 1.3GHz Video Receiver Module V2 For Fatshark Goggles

Introducing the Matek 1.3GHz Video Receiver Module V2 for Fatshark Goggles!

Features & Specifications

• Receiving frequency: 9CH  (1080MHz to 1360MHz)
• VRX-DK input voltage 6~30V (“DC” pad)
• VRX-DK regulator output: 5V 2.5A
• Current Consumption: 0.3A @5V
• Video format: NTSC or PAL
• Video Output impedance: 75Ω, Typ.
• Audio Subcarrier Frequency: 6.5 MHz & 6.0MHz
• ANT. input impedance: 50Ω, Typ.
• RF Connector: SMA
• RX Sensitivity: -95dBm
• Band-pass filter 950MHz~1450MHz
• Dual input options: 4~5V via pins  or 6-30V via “DC” pad on VRX-DK
• Button control and LED indicators

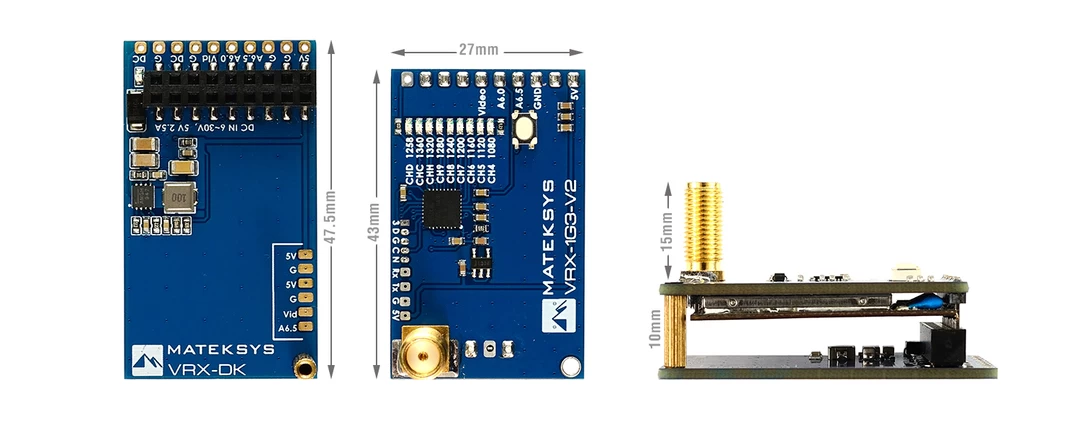

• 2.54mm pins and PCB size are compatible with FS module
• 5pins (5V, Gnd, A6.5, A6.0, Video) work with FS dock
• Weight: 12g ( w/o dock), 19g (w/ dock)
• Size: board 43*27mm

Includes

• 1x 1.2/1.3G Video receiver VRX-1G3-V2
• 1x VRX-DK
• 1x Dipole antenna_SMA, center freq 1240MHz

Settings

• Press and hold the button 2 seconds to enter the frequency setting. Frequency LED blinks
• Press the button to select the frequency
• When the LED blinks at new frequency,  RF input is enabled on this frequency.
• New frequency will be saved if no button action within 3 seconds
