ISDT BG-8S Battery Cell Checker, BattGo, Sbus Analyzer

Description

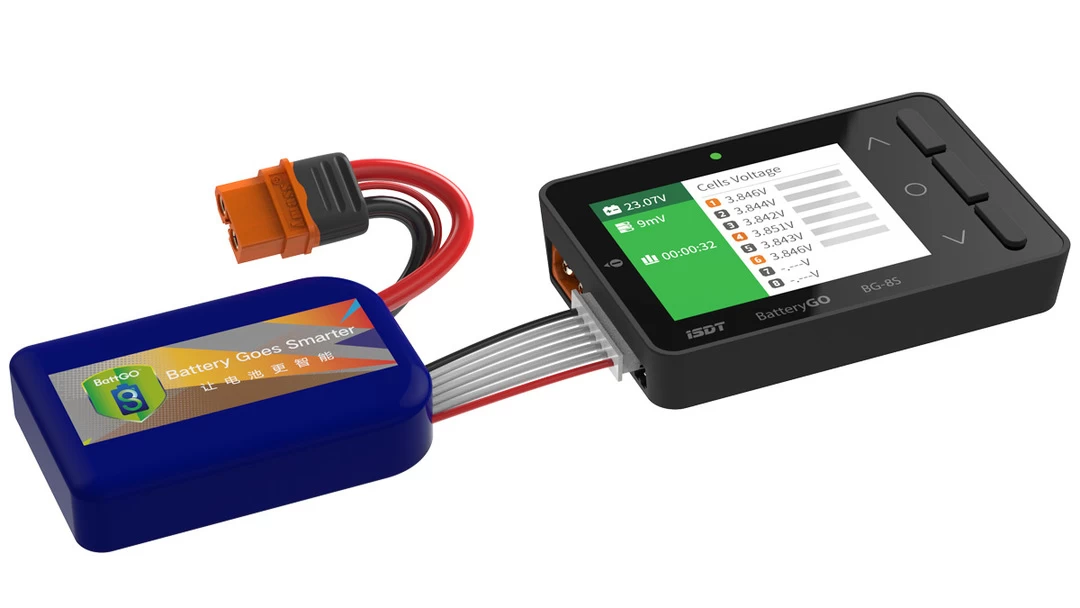

Designed for LiPo, LiHv, LiFe, LiIon batteries, highly effectively manage your different batteries with just our BC-8S Battery Checker. Built-in four bright LED lights and two 85dB buzzer, with sound and light tracking signal, you will never lose contact with your UAV. 3 kinds of working mode, easy to switch as you wish. Voltage recording function Histogram can tell you the voltage change during usage of battery. The upper part tells you the lowest voltage recorded during usage. The lower part shows you current voltage. For on-board measurement, it’s recommended to use this mode, after your flight by checking histogram, it can easily tell how well is your battery. Suitable for batteries with JST XH 2.54 balance port, connect the balance port start from “BAT-“

With standard 3 pin plug, BG-8S can detect BEC output voltage.

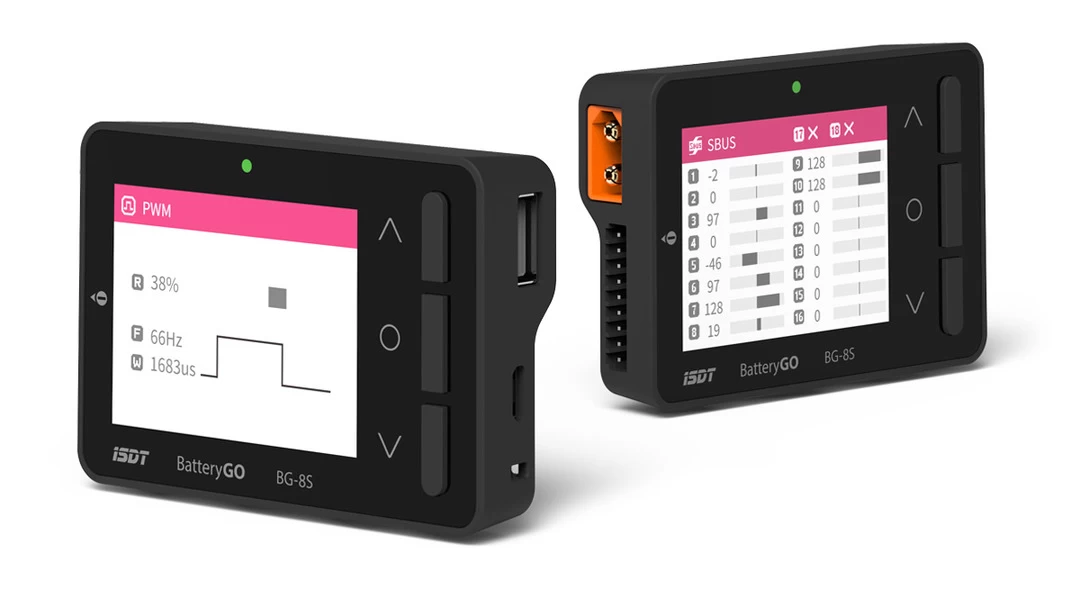

BG-8S also supports multiple protocol analysis including PWM, PPM&S.BUS and etc. With future firmware upgrades more Protocol analysis will be supporte

Key Features

• Patented Automatic alarm function
• 260,000 color display visible under strong sunlight.

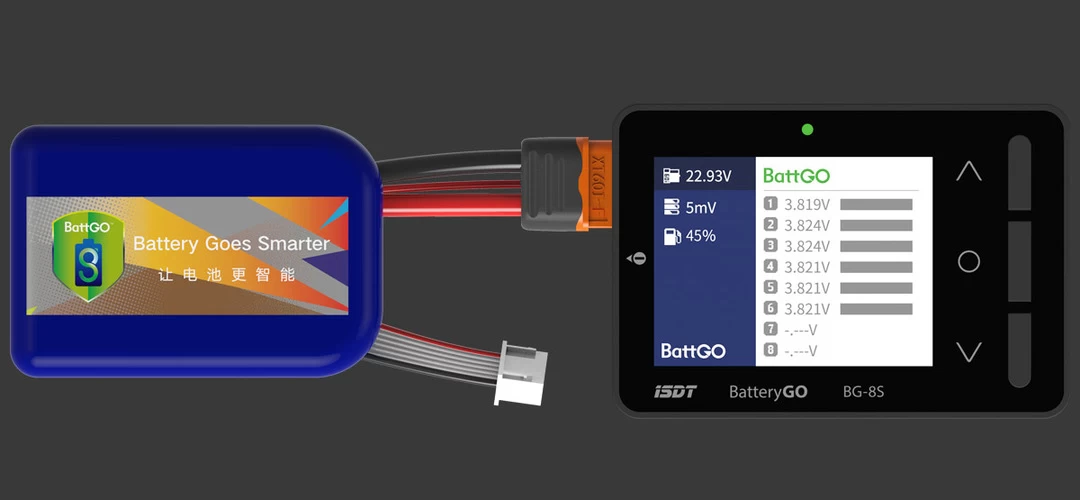

• Fully support BattGO technology

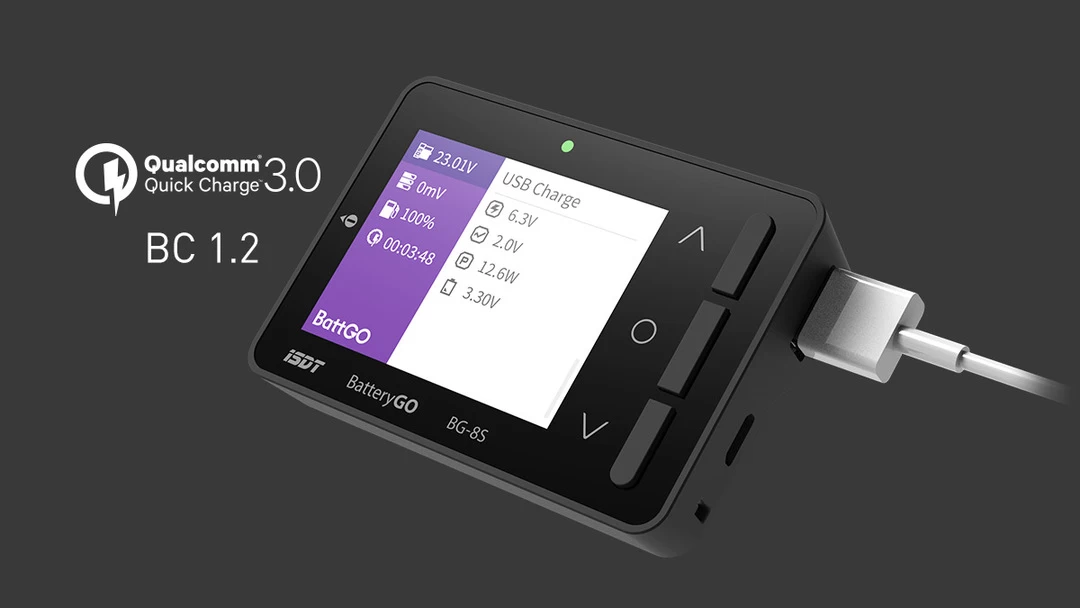

• Qualcom Quick Charge 3.0 USB Port
• All Status Display

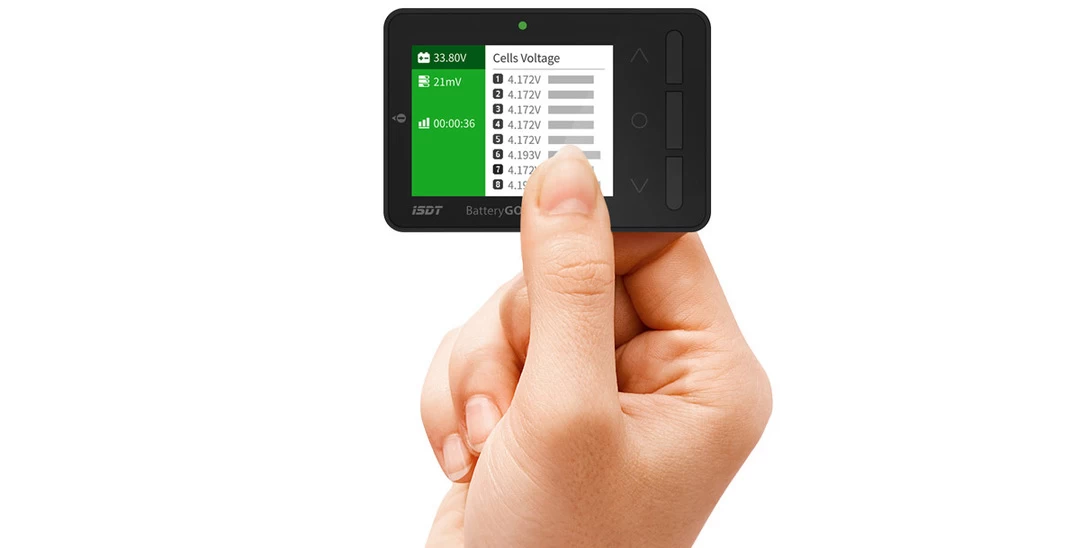

• Super Portability
• Voltage Display Function
• Supports the detection of up to 8S Battery
• ARM 32bit Hi-speed CPU
• 1.3″ OLED Display

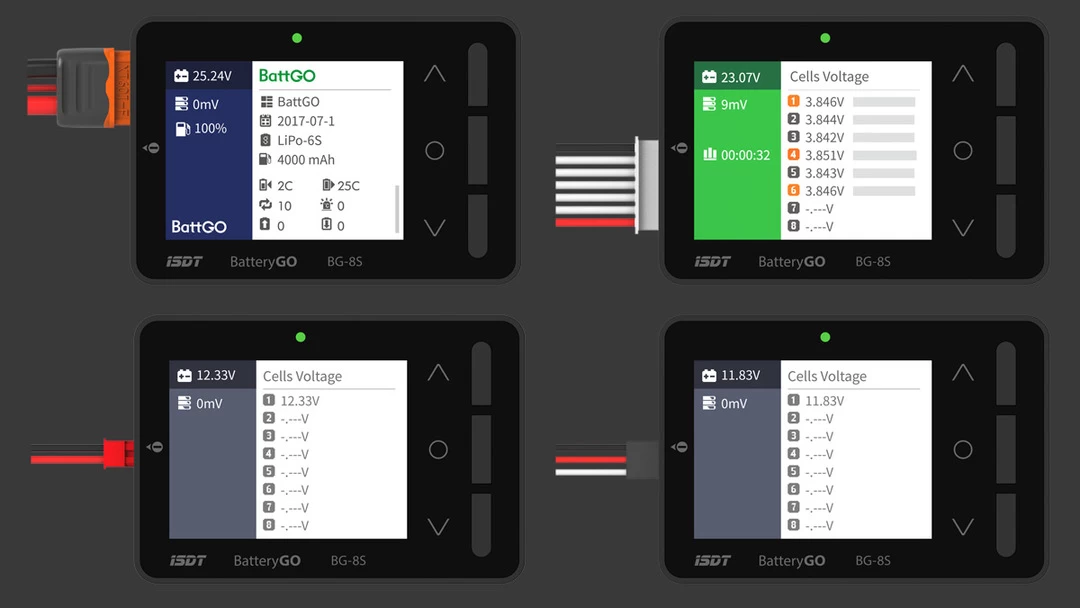

• Support XT60/XT60i, XH2.54 1-8S balance lead, XH 2.54 3pin, JST ETC to measure voltage.
• Support LiHv, LiPo, Lilon, LiFe, NiMh/Cd battery and BEC output measurements.

Specifications

• Working voltage :    5.0V-36V
• Input voltage 1s :    0.8V-15V
• Input voltage 2-8S :    0.8V-4.8V
• Battery cells :    1-8S
• Voltage measurement accuracy :    ±0.005V @ 4.2V
• Balancing cells accuracy :    < 0.005V
• Support USB charging :    QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A
• Support smart battery :    Charging and discharging setting
• read battery info and usage history.
• Supported Batt. Type :    LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S)
• Lilon (1-8S) / NiMH/Cd(1-10S)
• Display :    2.4〃320×240 260,000 color IPS LCD
• Dimension :    80 X 55 X 19 mm
• Weight :    59g
• Operating Temperature :    0-40℃
• Working Humidity :    10%-90%RH (noncondensing)
• Storage Temperature :    -20-60℃
• Storage Humidity :    5%-90%RH (noncondensing)
