ImmersionRC RapidFIRE W/ Analog PLUS Goggle Receiver Module

Could It Be the Best Diversity Module for Fatshark Goggles?

ImmersionRC set out to create the best diversity module that the Fat Shark module bay would ever see.
Not ‘just’ a diversity module, but a module that has intimate knowledge of analog video signals. A module that can repair the damage caused as the 5.8GHz analog signal bounces around the environment.
The rapidFIRE module fuses images together, predicts noise before it is visible, rebuilds analog signals to avoid tearing, rolling, and dropped DVR frames, all with zero added latency.
This is more than Analog, but not Digital, so they called it ‘Analog Plus’.
The ImmersionRC rapidFIRE offers the best-in-class 5.8GHz diversity FPV Racing receiver for FatShark Attitude, Dominator, and HDO Goggles with image fusion and AnalogPlus.

Special Deals Only Available at RMRC!

• Free shipping options available worldwide! (some restrictions apply)
• Multiple discounted receiver antenna packages available!

Yes, It Really IS the Best Diversity Module for FatShark Goggles.

The rapidFIRE technology ‘fuses’ together the images from two 5.8GHz A/V receiver modules into one beautiful, interference-free image. Tearing and rolling are eliminated making it easier to see the gates and win the race.
Optimized for use in environments with multipathing interference (indoor racing, bandos, etc. ) but with superb sensitivity for long range use.

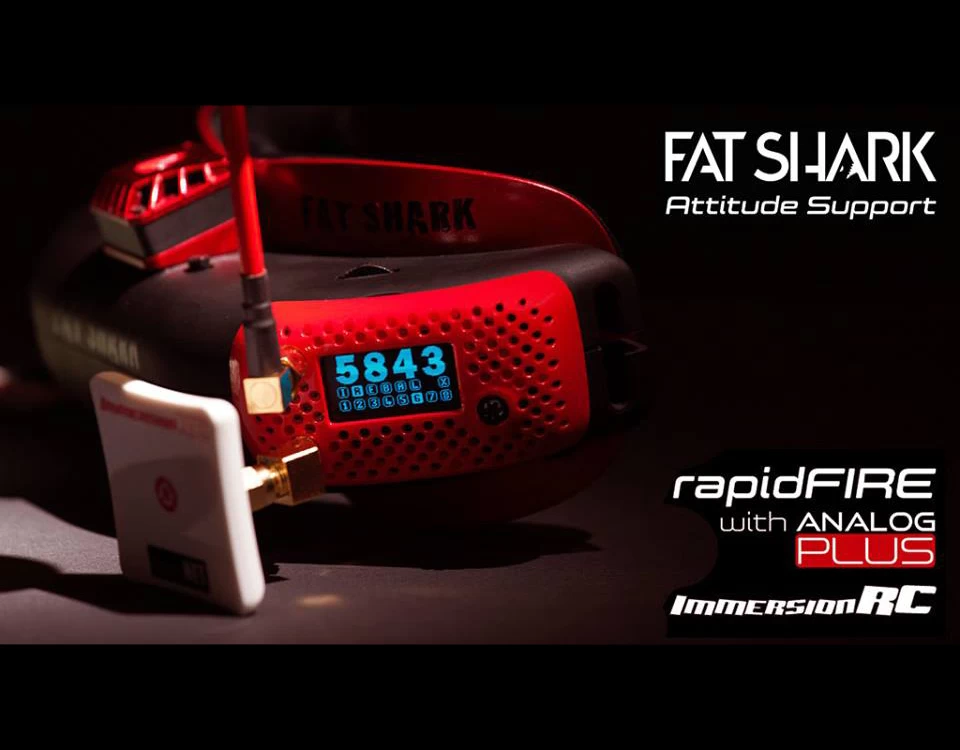

Working closely with FatShark, ImmersionRC ensured maximum compatibility with a wide range of goggles, including all Dominator LCD goggles including v1, v2, v3, SE, HD1, HD2, HD3, HDO, and Attitude v3/v4.

The module senses supply voltage and automatically adapts to headsets which cannot supply enough power through the module bay.

Injected and beautifully painted module bay doors for Dominator and Attitude are included in the package.

For Attitudes, and the Dominator HDO, the bay provides enough power for the module, and is truly plug-and-play. For other goggles, an included aux-power PCB, with a 0.2mm self-adhesive flat cable provides the necessary power and is hidden using an included sticker-set. For the adventurous, a simple, well documented modification to the goggles avoids the need for the cable.

A USB port is also included, allowing future firmware updates to make it future proof.

Built-in spectrum analyzer, favorites channels with live single-channel spectrum display for manual tuning, and band scanning.

When used to time races, the rapidFIRE technology eliminates dropped frames from the FatShark DVR. Finally DVR footage can be compared for photo-finishes.

Intuitive, Fluid User Interface

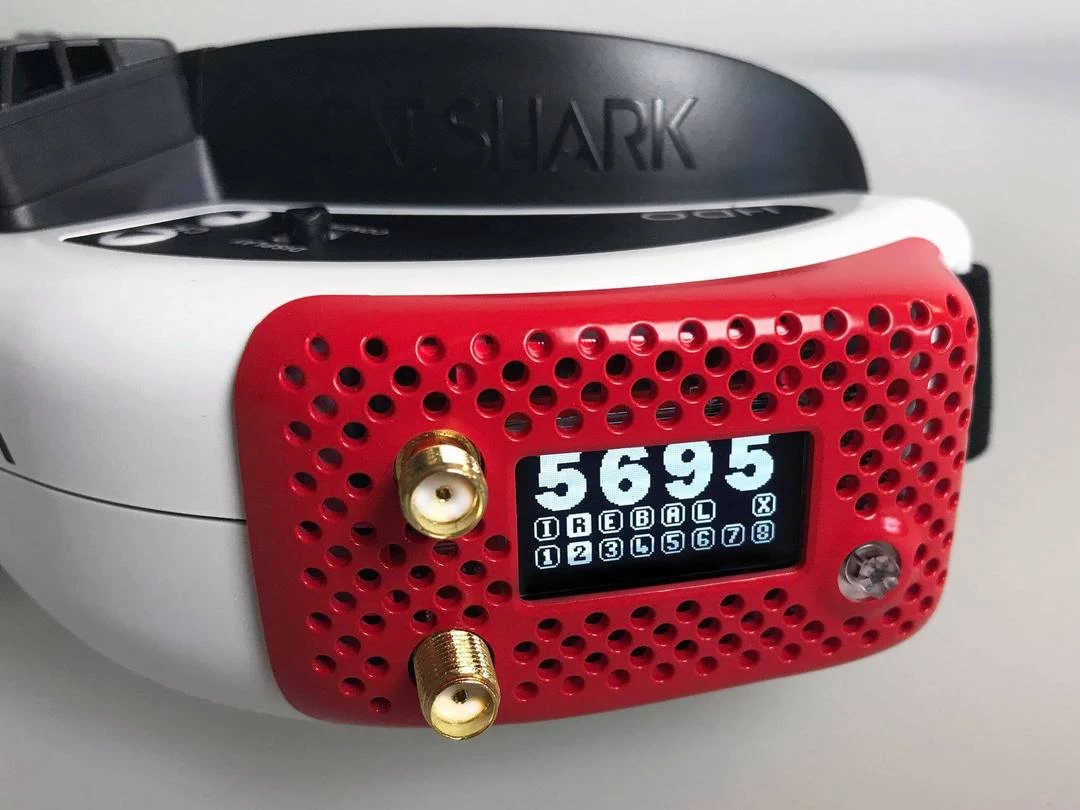

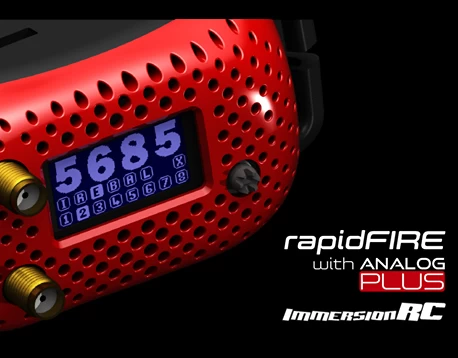

A bright OLED display, coupled with a 5-position joystick, ensures a friendly, simple user experience. Easy menu navigation… no ‘single button user interface here’, a 5-way joystick is used to scroll around the responsive OLED display, with feedback of critical parameters displayed on the OSD.
The goggle channel buttons can be used to change channel as well, ensuring that the user interface is child’s play for anyone who has used any of the stock goggle modules.
The OLED is backed by an on-screen display which shows critical parameters.

Unique Favorites Mode with Tuner

In addition to supporting the most popular FPV channel sets, the rapidFIRE module has an easy to use ‘favorites band’ (we call it ‘Band X’) with a unique tuning feature.
A narrow-band live spectrum shows the transmission from the transmitter, and allows the channels to be tuned with 1MHz resolution. For long range flight where subtle differences between Tx and Rx frequency can cost valuable range this is a must-have.
For race events, enter the channels used by the event and simply switch between them using the goggle channel buttons.

Single Rx Modes for High Gain Long Range

When flying longer distances, fusing together a high gain, directional antenna with an omni-directional antenna doesn’t help much. rapidFIRE is ready for this, with power-saving single-receiver modes, easily selected on the user-interface.
These modes still have all of the ‘Analog Plus’ signal regeneration features enabled, but don’t waste power on a second receiver.
Want to put two high gain antennas on the receiver and take advantage of all rapidFIRE features while blasting down a mountain ravine; no problem. The Rapidfire supports that as well.

Band Scanner

Quickly scan all common 5.8GHz bands for powered-up transmitters. A couple of clicks of the joystick and the channel is selected.
Click and hold the joystick from the main screen for quick access to the scanner without the need to traverse the menu

Model Finder

A dive down the wrong side of the island, an unexpected piece of scraggle in the basement of a bando, an over-excited buddy powering up on the same channel. Just some of the ways that FPV models are lost.
The rapidFIRE module includes a model finder that uses both visual, and audible feedback to help find lost models.
* v1.1.7 and later

UPC: 840630182222

Optional Bundles

• spiroNET diversity package (1x 8dBi patch + 1x headset antenna)
• STRIX Hoot-R with Right Angle Adapter and VAS 5.8 GHz Crosshair Diversity Combo

Package Includes

• 1X rapidFIRE Goggle Module for FatShark
• 1X Dominator Door
• 1X Attitude Door
• 1X Aux Power board for Dominator
• 1X Aux Power Flat Flex Cable

PRODUCT SPECIFICATIONS

• Coolness Factor: Extreme!
• Compatibility: All Dominator(tm) LCD goggles, including V1, V2, V3, SE, HD1, HD2, HD3, HDO. Plus Attitude V3, V4
• Auxiliary Power: Included kit + flat flex cable for goggles that cannot provide enough power (Attitude and Dom HDO do not require this)
• Accessories Included: Module doors for Dominator and Attitude, Aux power PCB for Headtracker slot, and flat flex cable.
• Sensitivity: Better than -96dBm
• Power: 5V @ ~350mA
• Alarms: Internal beeper to warn of marginal reception
• Modes: rapidFIRE, Classic Diversity, or Upper/Lower Rx options (single Rx modes increase battery life)
• The secret stuff… : Cool hidden feature to be announced
