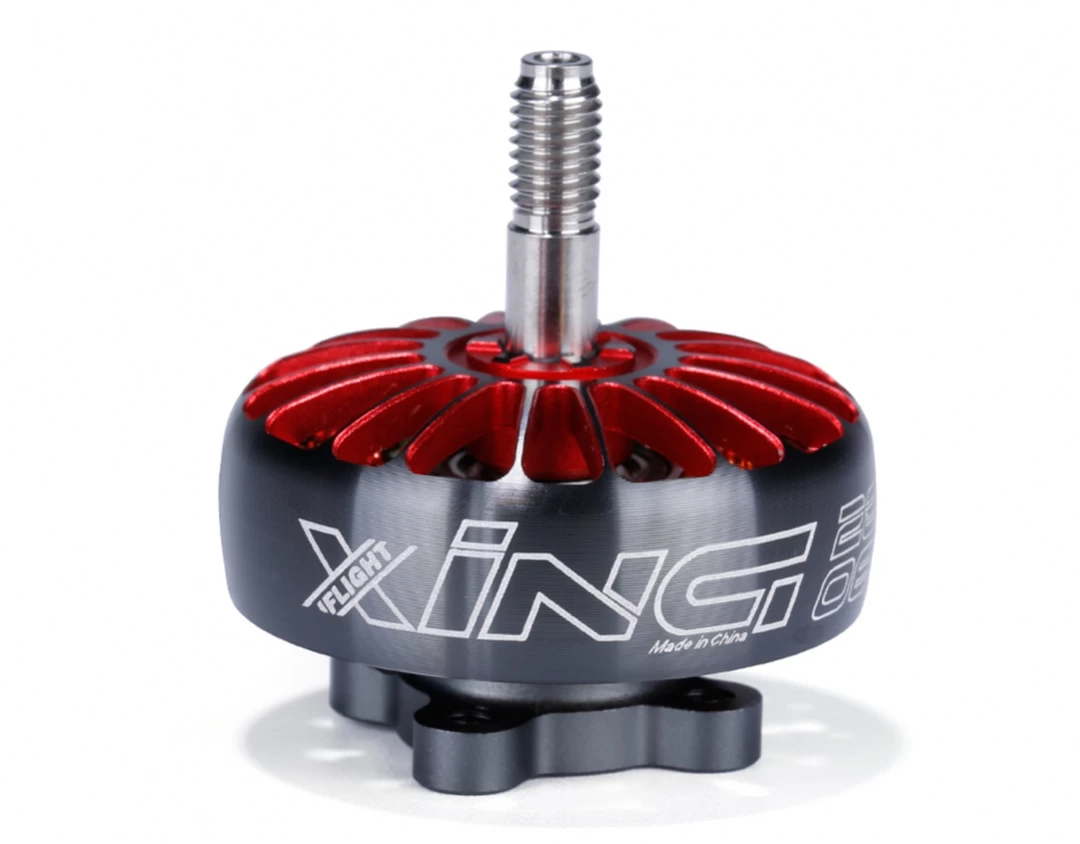

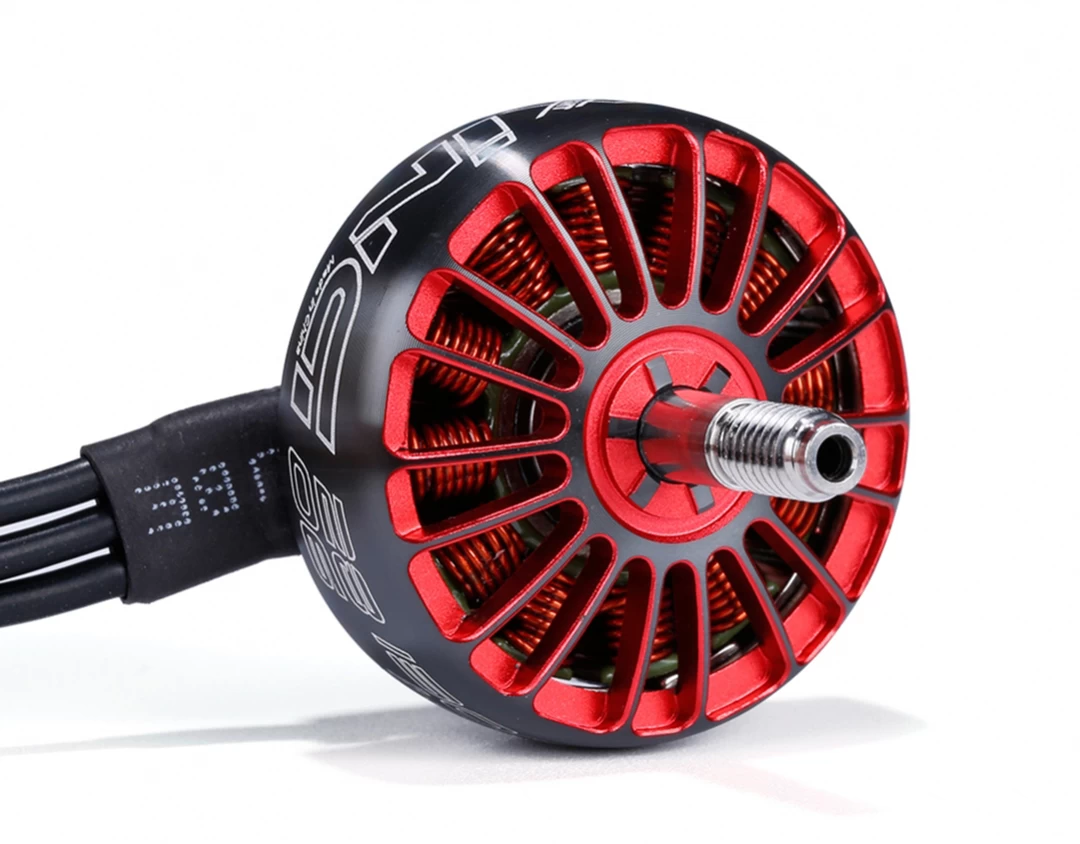

IFlight Xing 2806.5 1300KV UniBell Brushless Motor

Welcome the IFlight Xing brushless motor series! Designed in collaboration with FPV pilot Patrick Xing, the Xing series are some of the hottest motors on the market today with their unique high quality design and build quality you can guarantee you will stand out with a set of these motors. Not only do they cool but they are extremely durable, with a 4mm titanium alloy shaft and some of the best N52H magnets on the market expect the highest performance and efficiency from the IFlight Xing motors. Now featuring the all new UniBell Design for extra durability and strength. Get yours today!

Features

• High-strength 4mm Titanium alloy shaft
• Unibell design
• 7075 aluminum Bell and Base
• Electromagnetically matched magnets and stator
• Japanese NSK 11*5*5 bearings
• N52H Arc curve  magnets
• Motor wires protected
• Hex bolt shaft set screw
• Dynamically balanced

Specifications

• Voltage: 2-6S
• KV Option: 1300
• Configuration: 12N14P
• Bearing: NSK/11*5*5
• Stator Diameter: 28
• Stator Length: 6.5mm
• Shaft Diameter: M5
• No.of Cells(Lipo): 2-6S
• Weight: 49.5g(with a short cable)
• Motor mount hole: 19*19 φ3mm
• Prop size: 7” to 8”

Package includes

• 1X IFlight Xing 2806.5 1300KV Brushless Motor
• 1X Motor Screw Pack
