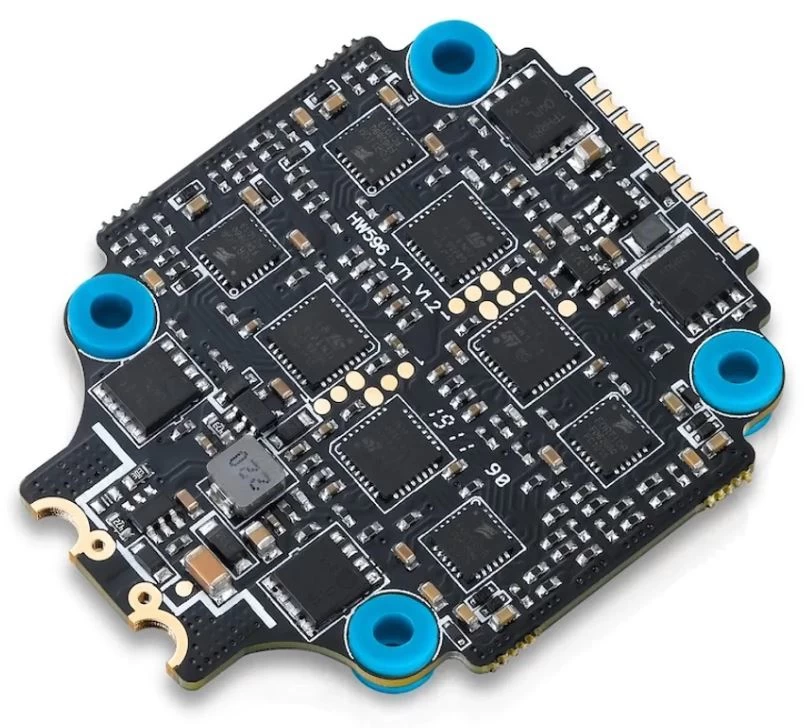

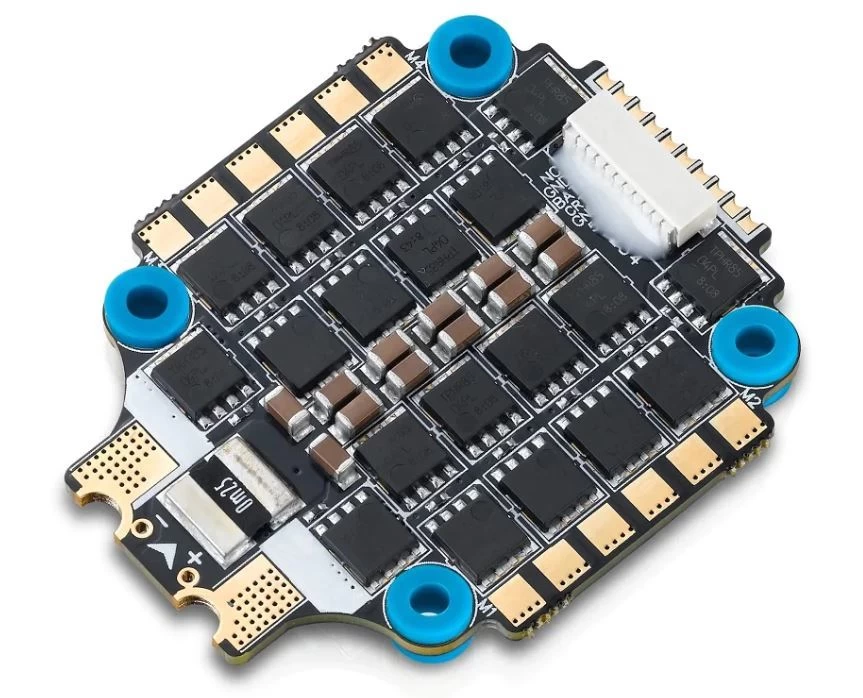

HobbyWing XRotor 4in1 Micro 65A ESC BLHeli32 (3-6S)

HobbyWing XRotor 4in1 Micro 65A ESC BLHeli32 (3-6S)

Features

• High-performance 32-bit microprocessor with a running frequency of up to 120MHz for excellent performance.
• The third generation BLHeli_32 code can support up to 128KHz PWM output frequency, which can be compatible with more motors.
• All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
• The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
• The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us), and Multishot (5-25us).
• D-shot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.
• The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding lost crafts.

Specifications

• LiPo Power input: 3S-6S
• Cont.Current: 65Ax4
• Burst Current: 80Ax4
• BEC Output: 5V@ 0.6A
• Input wires: 12AWG-130mm* (Red/Black)
• Output Wire: No wires but solder tabs
• Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no
• Weight / Size: 15.0g / 52x42x6.6mm
• Mounting holes: 30.5×30.5mm
• Throttle Calibration: Supported
• ESC Programming: BLHeliSuite32
• Manufacturer Part Number: 30902064

Includes

• 1x HobbyWing XROTOR 65A 3-6S BLHELI32 4IN1 ESC FOR FPV RACING –  30.5×30.5mm
