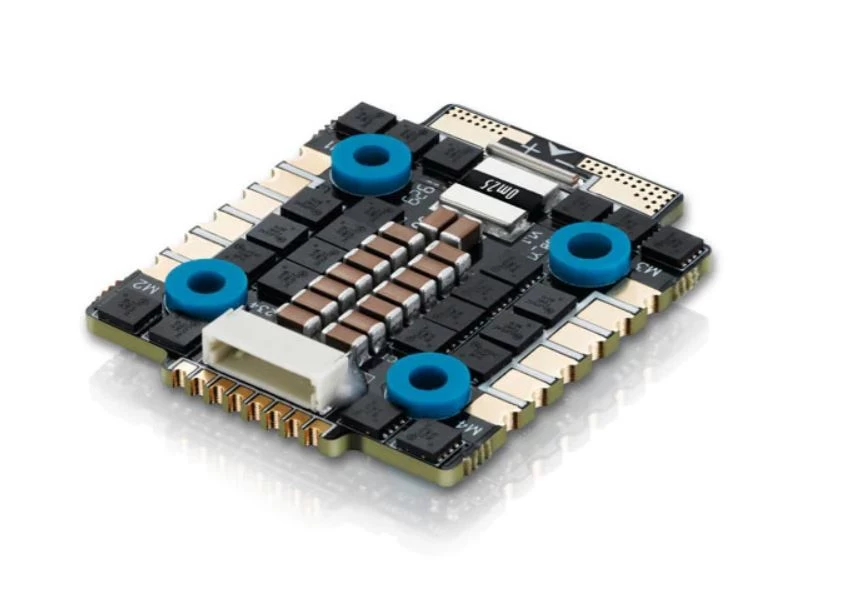

HobbyWing XRotor 45A FPV ESC (4in1)

HobbyWing XRotor 45A FPV ESC (4in1)

Specifications

• Part Number: 30902065
• Cont./Peak Current :  45Ax4/ 60Ax4
• Input Voltage :  3-6S Lipo
• BEC output :  NO

Wires & Connectors
Input Wires :  Red-14AWG-100mm/ Black-14AWG-100mm
Output Wires :  No wires but solder tabs
Input Connectors :  XT60(w/ Wires Soldered on)
Output Connectors : No

Size & Weight
Size :  40x33x5mm
Weight :  12g

Features

• Firmware : Hobbywing_XRotor_BLHeli_32_AT421 Firmware
• ESC Programming :  Supported
• Programming Tool : BLheliSuite32
• DEO : Supported
• Throttle Range Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• DShot150/300/600/1200 : Supported
• Timing : Supported
• Motor Rotation : Supported

Applications:  130-300mm FPVs
