HobbyWing UBEC-8A

Original price was: $18.49.Current price is: $12.94.

SKU: CMVHZ 86010030 Categories: Electronics & Wiring, Power Tag: HobbyWing

100% environmentally friendly material
The quality solution for all your needs.
No-Questions-Asked Returns
Quality Meets Affordability

Description
Reviews (0)

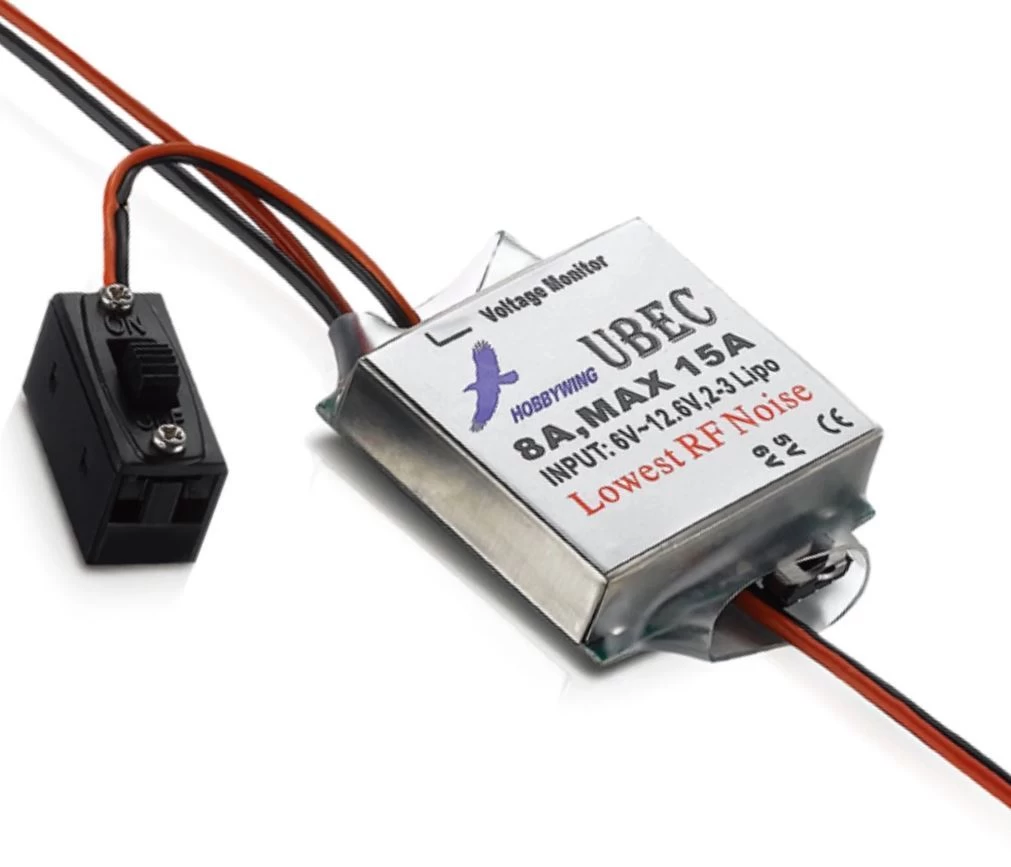

HobbyWing UBEC-8A

The 8A-UBEC is a switching-mode DC-DC regulator supplied with a 2-3 cells lithium battery pack and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for nitro powered RC helicopter (bigger than 30 class) and big fixed-wing aircraft.

Compared with the linear mode UBEC, the overall efficiency of the switching-mode BEC is much higher, so it can extend the working time of the receiver battery pack, and because a switch mode UBEC can significantly reduce the heat emission, it can avoid the loss of control caused by the over-heat problem which is frequently happened with the linear mode UBEC.

Specification

Output Voltage: 5V or 6V (Changeable with an output-voltage select switch )

Continuous output current: 8 Amps

Burst output current: 15 Amps

Input: 6V-12.6V (2-3 cells lithium battery pack)

Quiescent current: 60mA

Size: 42mm*39mm*9mm (length*width*height)

Weight: 36g

Features

Designed with an advanced switching-mode DC-DC regulator IC.

The output current is very large.

With the output short-circuit protection function.

A metal shield covers almost all the electronic components, and a filter ring is attached to the output wires to significantly reduce the electromagnetic interference.

Automatically detects the number of the lithium battery pack (2 cells or 3 cells).

Shows the battery capacity with 4 indicators (LEDs).

Shows the working status with an indicator (LED), lights when the output is in a normal range.

There is 2 output leads to reduce the resistance when connecting the UEBC to the receiver.

Download User Manual (PDF)
