Hobbywing Skywalker 12A Airplane ESC With BEC

Original price was: $9.99.Current price is: $6.99.

SKU: CMVHZ 80060170 Categories: Airplanes & Related, Electronics Tag: HobbyWing

100% environmentally friendly material
The quality solution for all your needs.
No-Questions-Asked Returns
Quality Meets Affordability

Description
Reviews (0)

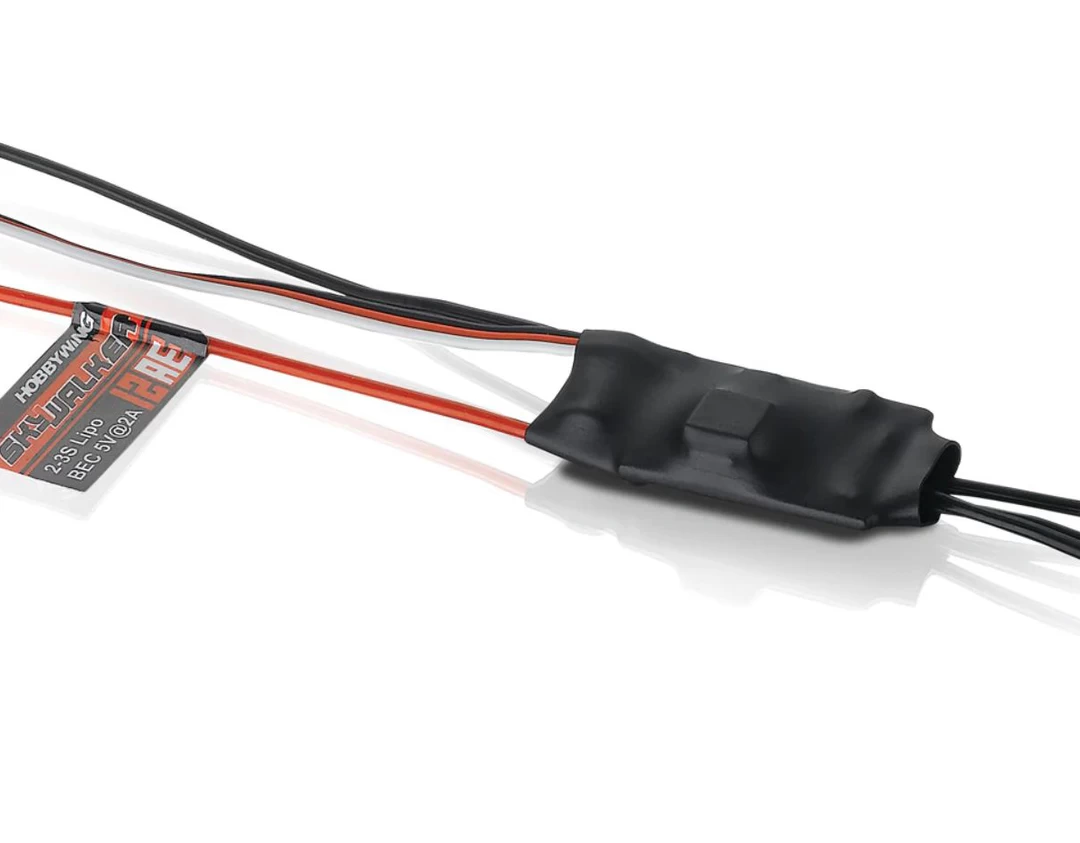

Hobbywing Skywalker 12A Airplane ESC with BEC

Specification

Output: Continuous 12A, Burst 15A up to 10 seconds
Input Voltage: 2-3S Lipo, 5-9 cells NiMH
BEC: 2A / 5V Linear mode BEC
Refresh rate of the throttle signal: 50Hz to 432Hz
Max Speed: 210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM
(BLM = BrushLess Motor)
Size: 38mm*18mm*7mm
Weight: 10g

Features

Safety arming feature: Regardless the throttle stick position, the motor will not spin after battery connected.
Throttle calibration function: Throttle range can be calibrated to be compatible with different transmitters.
User programmable.
Multiple program methods supported: transmitter stick, LED Program Card. Very easy to program the ESC at home or at the flying field.
Compatible with Lipo and NiMH battery.
Timing can be changed to be suitable for different brushless motors.
Full protection: Low voltage cutoff protection / Over-heat protection / Throttle signal loss protection
