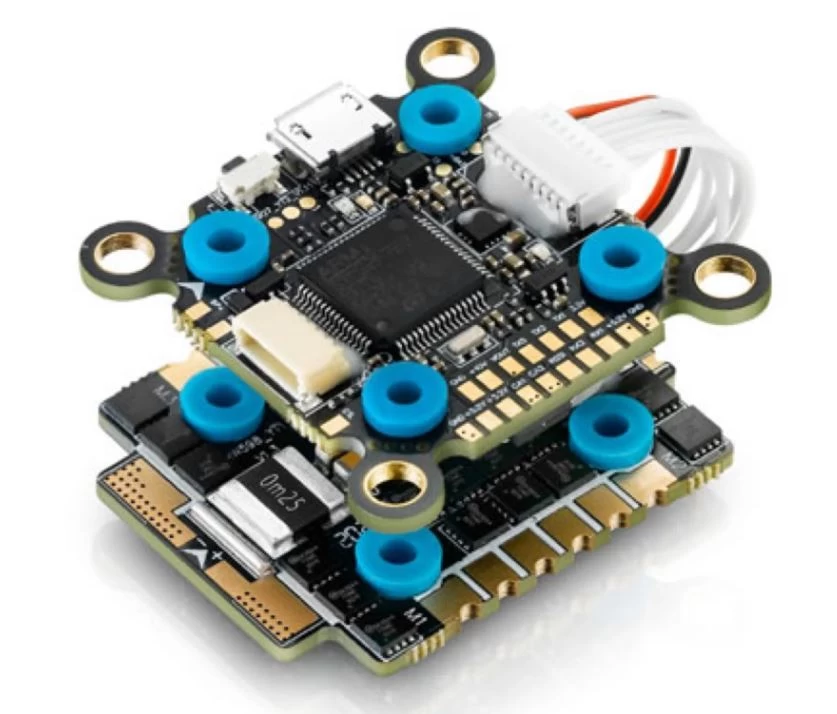

HobbyWing FPV Stack Micro 40A ESC + FC F7 Convertible

HobbyWing FPV Stack Micro 40A ESC + FC F7 Convertible Combo

Meet the HobbyWing XROTOR “FPV” Series 20×20 4 in 1 stack ESC

Specifications

• Protocol: BLHeli32 / DShot 1200
• Voltage: 3-6s
• Mount: Soft
• Constant power: 40A
• Burst Power: 60A
• BEC: No
• Weight: 12g
• Dimensions: 40x33x5mm
• Manual Download

XRotor F7 Flight Controller (Convertible)
Special interface for DJI image transmission system With DJI image transmission system port, equipped with corresponding flat cable (FC has been equipped), can avoid welding, realize plug and play.

Unique installation design and shock absorption structure The double hole distance mounting hole design (30 * 30MM & 20 * 20MM) can adapt to different frames. The unique flexible flat cable connection mode (The effect is better with hobbywing tower 4in1 ESC ), and the shock absorption mechanism of installation hole, can effectively reduce the impact of external vibration on FC high-sensitivity components, and make the flight more stable and accurate.

Super hardware and running speed Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional DShot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.

On-board 5V & 12V dual BEC circuit FMU integrates with 12V BEC circuit. It can supply super power output for image transmission and 12V LED devices.

On-board Pit Switch module FC integrated Pit Switch module can open or close VTX by radio after being adjusted on FC parameter software. Easy and convenient.
