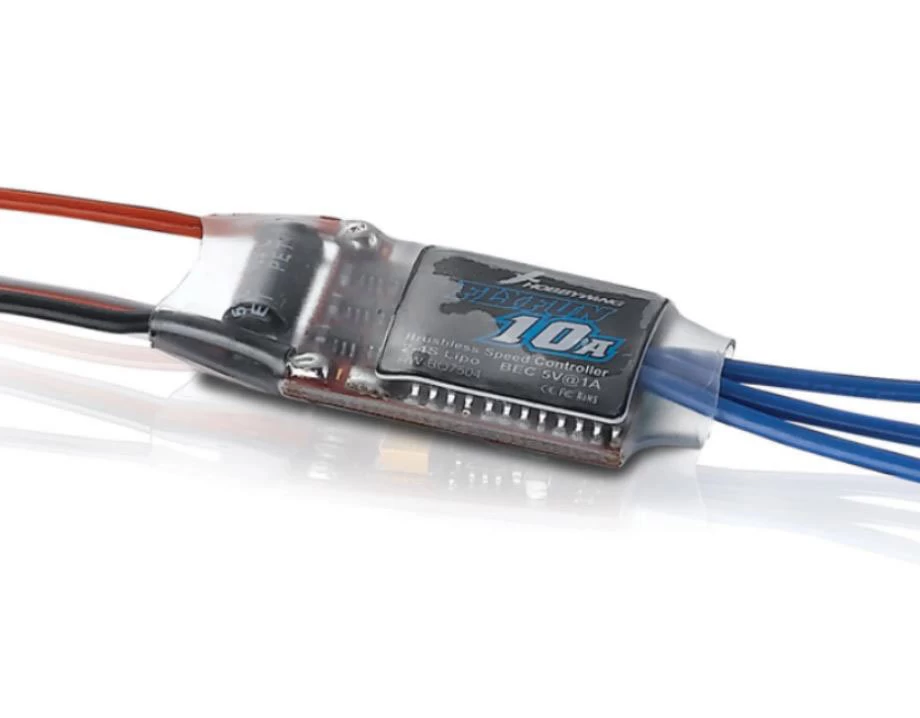

HobbyWing FLYFUN 10A ESC 2-4s

Specifications

• Output: Continuous 10A, Burst 12A up to 10 Secs. PWM is 16KHz
• Input Voltage: 2-4 cell lithium battery or 5-12 cell NiCd/NIMh battery.
• BEC: 1A / 5V (Linear mode).
• Max Speed: 210,000rpm for 2 Pole BLM, 70,000rpm for 6 pole BLM, 35,000rpm for 12 pole BLM.
  • (BLM: Brushless Motor)
• Size: 27mm (L) * 17mm (W) * 6mm (H).
• Weight: 9g.

• Safety Arming Feature: Regardless of the throttle stick position, the motor will not spin after battery is connected.
• Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all available transmitters.

  Programmable Items:

         Brake Setting: brake enabled / brake disabled.

         Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).

         Low Voltage Protection Mode (Cutoff Mode): Gradually reduce the output power / Cutoff the output power.

         Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.

         Start Mode: normal / soft / very soft.

         Timing: low / medium / high.

         Reset: reset all the programmable items to their default settings.

  Full Protection Features: Low voltage cutoff protection / Over-heating protection / Throttle signal lost protection.

  Advantages



  Military standard capacitor with extremely low resistance decreases unwanted RF noise during flying.

  Extreme low resistance PCB helps in producing super current endurance capability.

  Microprocessor uses a separate voltage regulator IC, with great anti-jamming capability.

  Compatible with Hobbywing’s Program Card  (purchase separately)
