Hitec HS-45HB Micro Servo

Original price was: $18.49.Current price is: $12.94.

SKU: HS-45 Categories: Airplanes & Related, Electronics Tag: HiTec

100% environmentally friendly material
The quality solution for all your needs.
No-Questions-Asked Returns
Quality Meets Affordability

Description
Reviews (0)

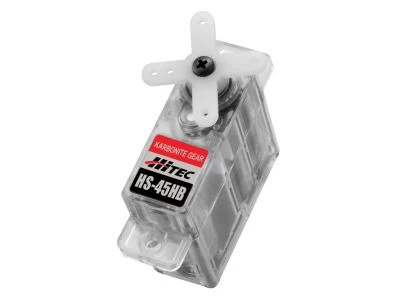

Hitec’s HS-45HB offers the economy and durability of our other famous micro servos, but now with a ball bearing supported output shaft and Karbonite gears.

Specifications

Motor Type:	3 Pole
Bearing Type:	Top Ball Bearing
Speed (4.8V/6.0V):	0.14 / 0.12 sec @ 60 deg.
Torque oz./in. (4.8V/6.0V):	14 / 17
Torque kg./cm. (4.8V/6.0V):	1.0 / 1.2

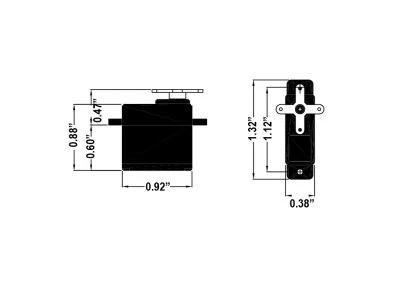

Size in Inches:	0.92 x 0.38 x 0.88
Size in Millimeters:	23.37 x 9.65 x 22.35
Weight ounces:	0.28
Weight grams:	7.94

Advanced Servo Specifications

Control System:	+Pulse Width Control 1500usec Neutral
Operating Voltage Range:	4.8V – 6V
Operating Temperature Range:	-20°C to +60°C (-4°F to +140°F)
Idle Current:	8mA
No Load Running Current (4.8V/6.0V):	100mA/60°
Stall Current (4.8V/6.0V):	440mA
Dead Band Width:	5usec
Potentiometer Type:	2 Slider/Direct Drive
Connector Wire Length:	250mm (9.84 in)
Connector Wire Gauge:	28AWG
