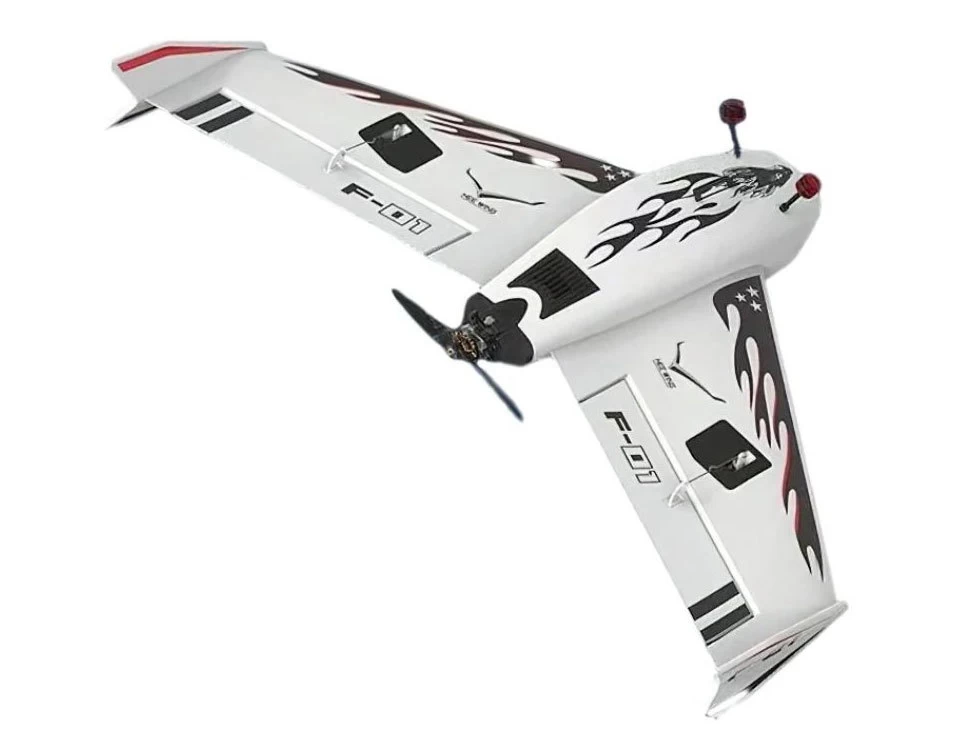

Hee Wing RC F-01 Ultra Delta Wing 690mm EPP – Kit

HeeWing RC F-01 Ultra Delta Wing 690mm EPP – Kit

Features

• Independent detachable lens socket for visual observation and FPV flights
• The wings have embedded carbon fiber rods with different angles
• Small wingspan with large space for electronic electronics.
• Four magnets are applied to the hatch for a better hold
• New wingtip design supports vertical takeoff mode
• Supports horizontal and vertical battery mounting
• Tailored lens ring for better protection.
• New propeller locking method.
• Designed for DJI Digital Air Unit

Specifications

• Version: PNP Professional
• Material: EPP / ABS / Carbon Fiber
• Wingspan: 690mm
• Height: 88mm
• Length: 415mm
• Maximum resistance:> 70 minutes
• Max Mileage: >45km
• Minimum flight speed: <27km/h
• Max Flight Speed: ≥220+km/h
• KIT weight: 150g (epp-30) / 190g (epp-20)
• Take off weight: 350g ~ 850g
• Battery Compartment: 175mm*175mm*55mm (maximum dimension)
• ESC compartment: 70mm * 38mm * 20mm (maximum dimension)
• Note: When the speed is ≥ 100km/h, you need to install the lens cover to prevent excessive intake air from blowing out the hatch.

VTX Fixed Seat Specifications

• Material: ABS
• Seat installation size: 47mm x 17mm
• Flight controller installation size: 30.5mm x 30.5mm / 20mm x 20mm

KIT version includes

• 1x Hee Wing Ultra Delta Wing EPP Body
• 2x VTX Fixed Seat
• 1x Hardware Kit
• 1x Lipo Strap 1x
• 6x4E Attachment
• 1x 5x5E Attachment
