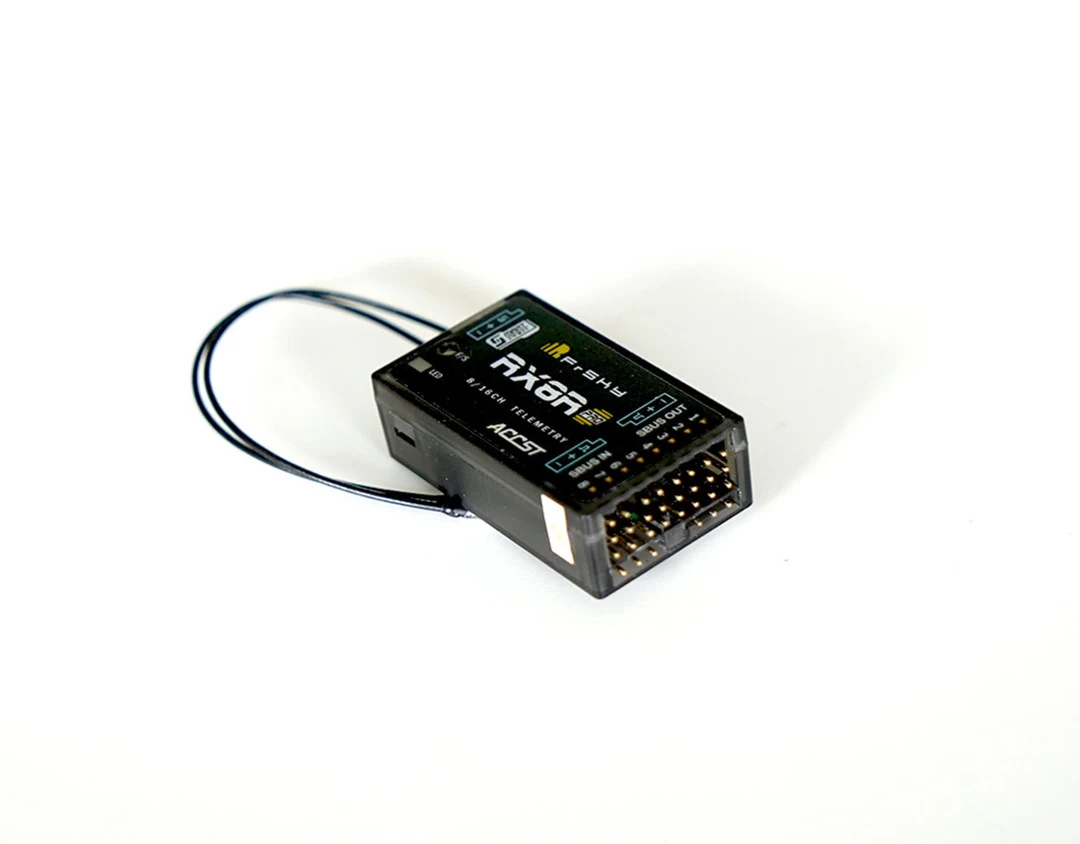

FrSky RX8R Pro 2.4GHz 8/16CH ACCST Telemetry Receiver

Overview

Because who doesn’t want another high quality receiver model to choose from, FrSky brings us the RX8R Pro Receiver! The FrSky RX8R Pro is a standalone receiver with all the functions of X8R, but with 9ms PWM output latency less than that of the original X6R in high speed mode. Add a backup receiver in case the first one fails with the supported redundancy function on the RX8R Pro.

This receiver has all the important features included such as telemetry, diversity with two antennas, Sbus, RSSI, and more!

Features

• 40% greater range than previous X-Series Receivers
• 8 Low Latency PWM (servo) outputs
• 16 channel support through sbux
• Redundancy function supported (dual receivers)
• Smart Port enabled and telemetry supported
• Battery Voltage Detection and Reporting through Telemetry
• 2 detachable and replaceable IPEX 4 connector antennas for diversity
• Conformal coating on PCB for protection

Specification

• Dimensions: 46.3mmX26.6mmX14.2mm
• Weight: 14.8g
• Number of Channels: 16CH SBUS, 8 PWM Outputs
• Input Voltage Range: 3.5V-10V DC
• Typical Operating Current: 100mA at 5V
• RC Range: Full range (1.5km)
• Servo Frame Rate: 9ms in High Speed Mode 18ms in Normal Speed Mode

Package Includes

• 1X FrSky RX8R Pro Receiver
• 2X Jumper Pins
• 1X Cable
