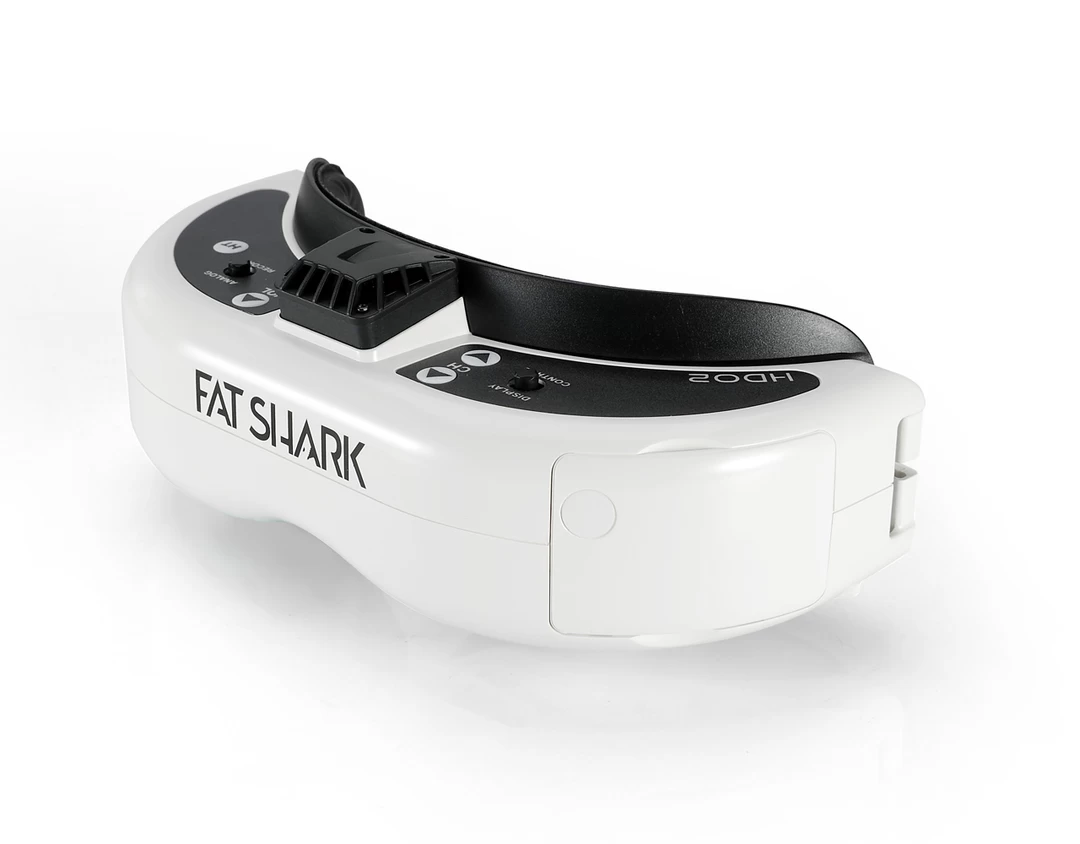

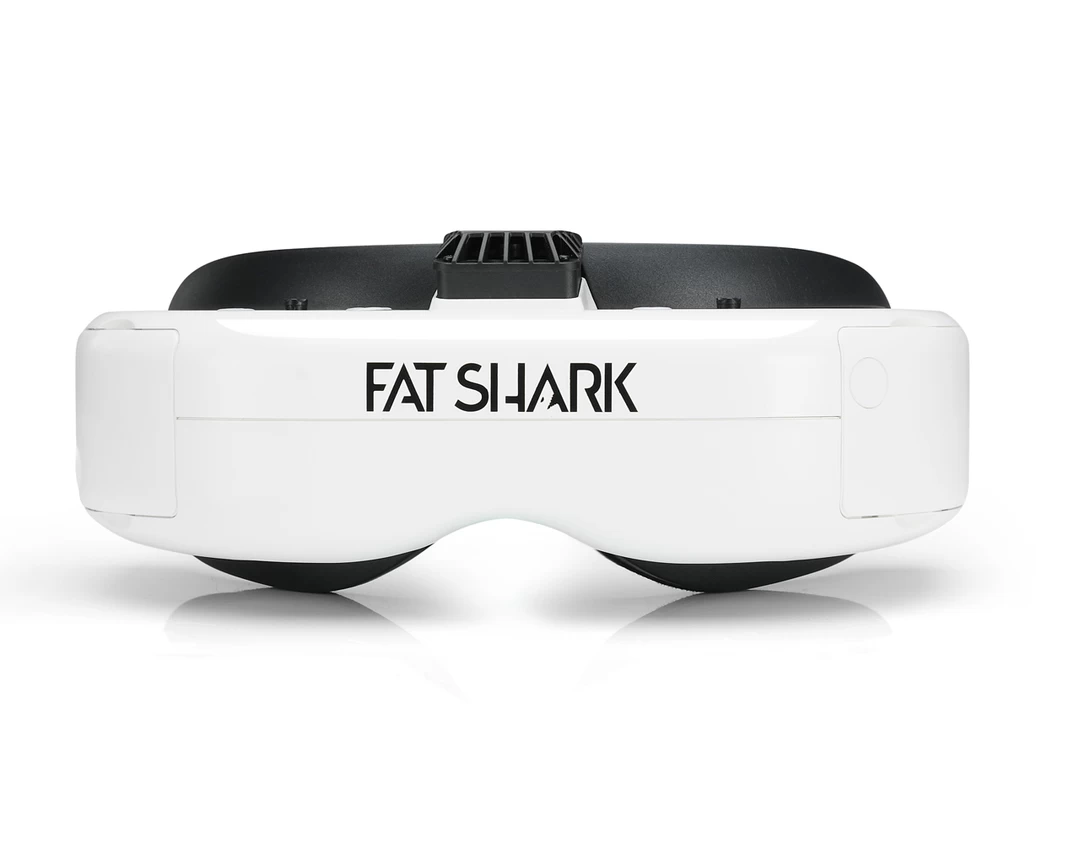

FatShark HDO2 OLED Video Glasses With DVR And Adjustable Focus

Things just got personal.

The Fatshark Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalizated with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.

Specifications

• Optics
  • FOV (field of view):46 degrees diagonal
  • IPD (interpupillary distance): 54 to 74mm (adjustable)
  • Focus:+2 to -6 diopters (adjustable)
• Display
  • Two Sony 0.5” OLED displays
  • Resolution: 1280X960
  • NTCS/PAL: Auto Selecting
  • AV Mode 4:3 or 16:9
  • HDMI Mode 16:9
• Audio
  • Stereo

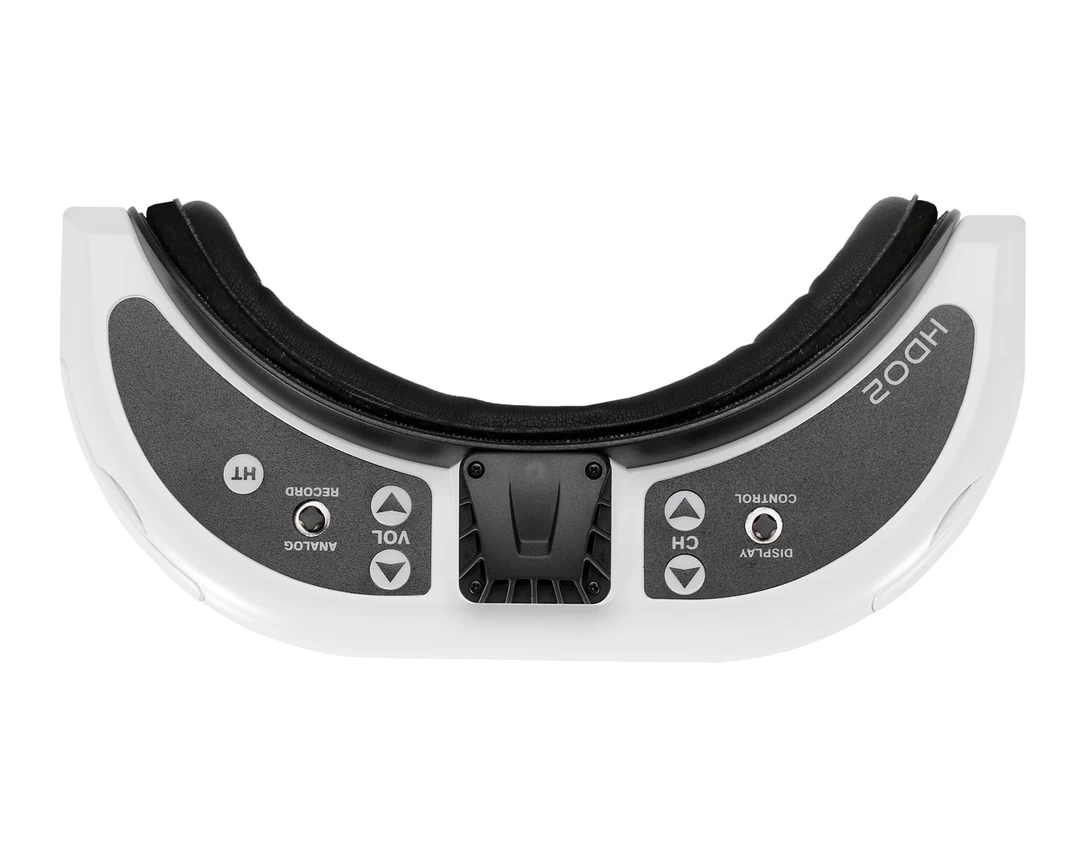

• User Controls
  • Channel Selection
  • Volume Control
  • Mode Selection
  • Display Control (Brightness and Contrast)
  • DVR Control
  • Power Button / Fan Control
• Electrical
  • Power Supply: 7–13V input voltage (2S-3S Supply)
  • Power Consumption:
    • 320mA @ 7.5V input power (no RX module)
    • 770mA @7.5V input power (Rapidfire)
  • Analog DVR: MicroSD support to 32GB
  • Record Rate: 6Mbps (MJPG compression, 30fps,AVI)
  • File playback (native recording, no codec support)
  • Upgrade via SD card
• Battery

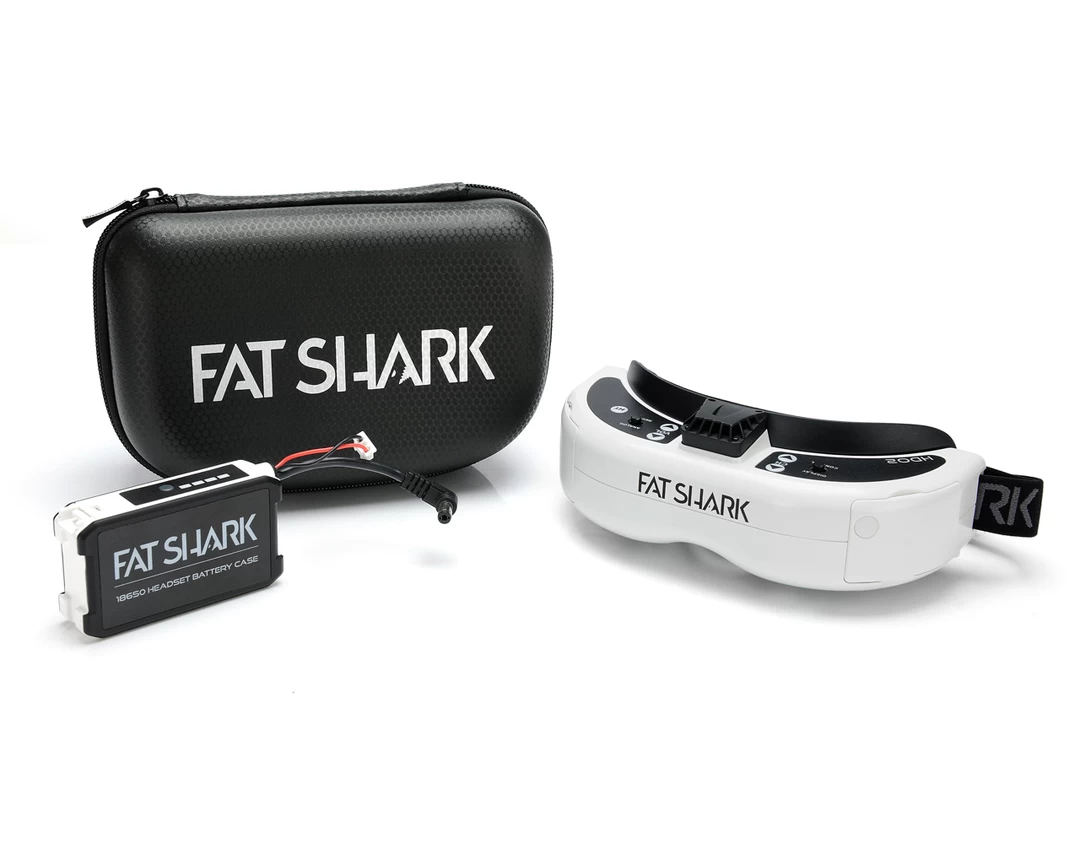

  • 7.4V, 1.8A 18650 Battery Case (optional)

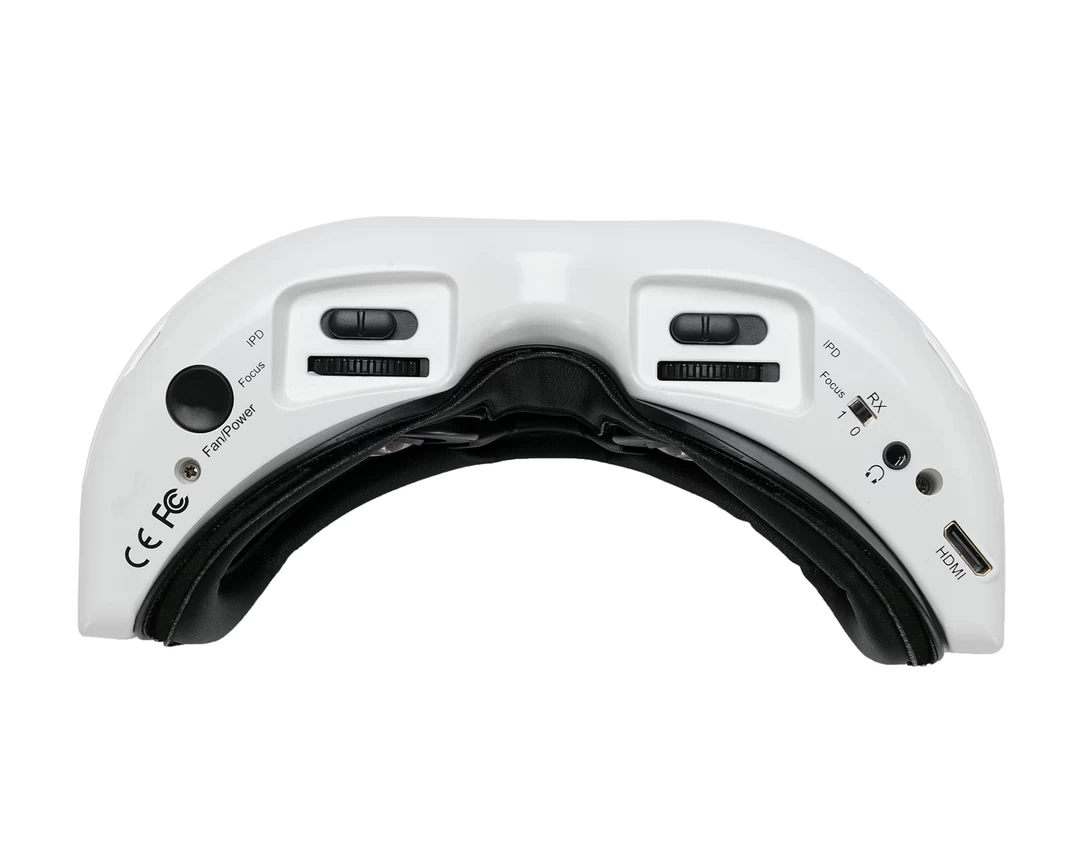

• Interface
  • 3.5mm AV in/out port
  • Power input port
  • 3.5mm 3p earphone port
  • MicroSD
  • RF Module Bay
  • HT connector 3 pin internal connection
  • Power Button
• Mechanical
  • Ergonomic molded headset w/ adjustable headband
  • Dimensions: 169.2 x 80 x 45.5mm
  • Weight: 206.8g
