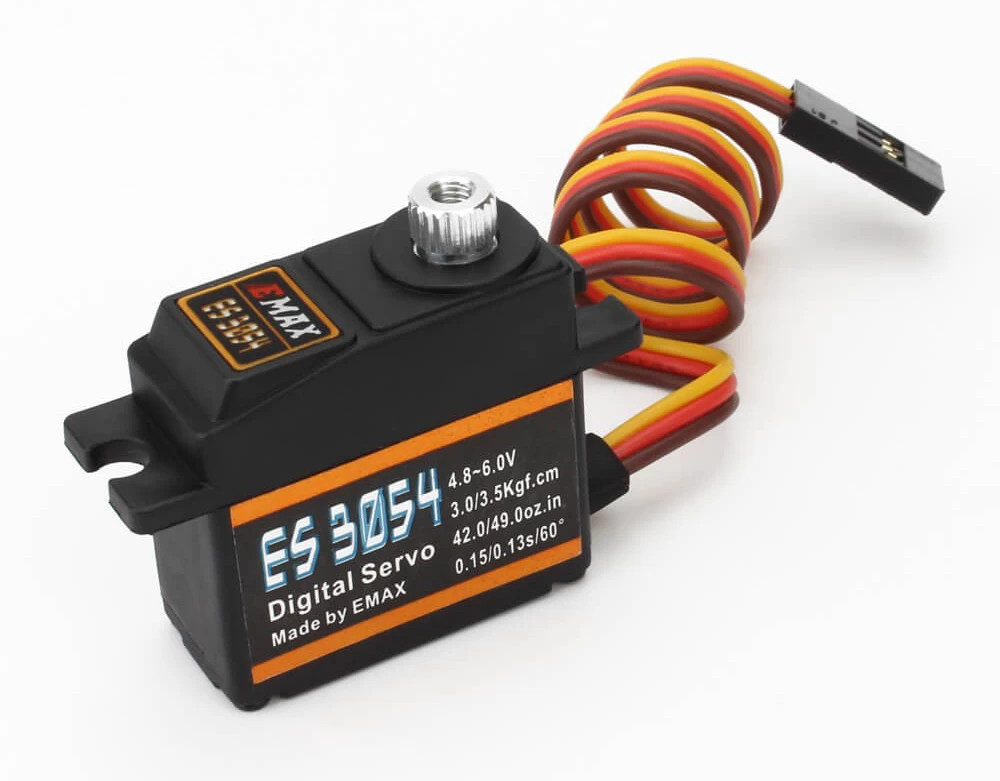

EMAX ES3054 17g Metal Gear Digital Servo

Get a high quality EMAX metal gear servo for your next build for the ultimate reliability in rough conditions. The ES 3054 is powerful and fast for it’s size. Get this quality servo from E-MAX to build your next FPV project!

Features

• Metal Gears for ultimate reliability
• Digital for the smoothest operation

Specifications

• Operations Voltage: 4.8-6.0C
• Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
• Stall Torque at 4.8V: 3kg/cm max
• Stall Torque at 6.0V: 3.5kg/cm max
• Speed at 4.8V: 0.15 sec/60* (zero load)
• Speed at 6.0V: 0.13 sec/60* (zero load)

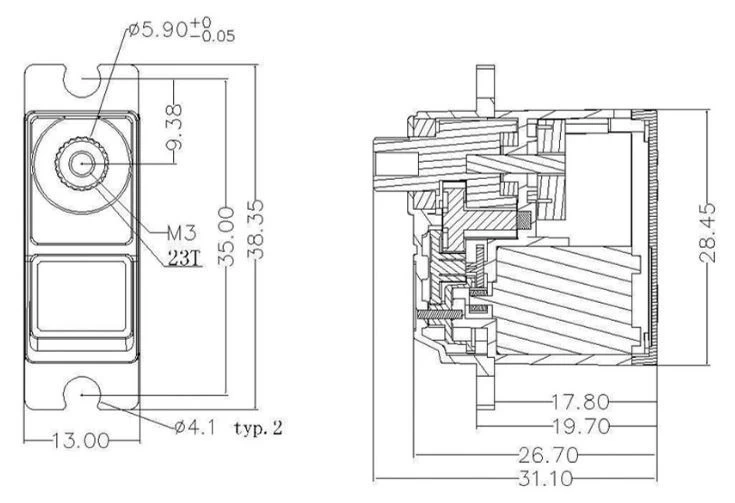

• Size: ~28.5x13x31mm
• Weight: 17g class, 20.1g actual
• Plug: JR
• Cable Length: ~240mm
• Head Splines: 23T
• Maximum Travel: ~145*
• Gears: Metal
• Operation: Digital

Includes

• 1x EMAX ES3054 Servo
• Mounting Hardware
• 3x Plastic Servo Horns
