Dragon Link Micro Receiver – Next Gen Firmware – 12" Antenna

One of the most popular long range UHF R/C systems, now with the legendary Ready Made RC, LLC support to back it up!

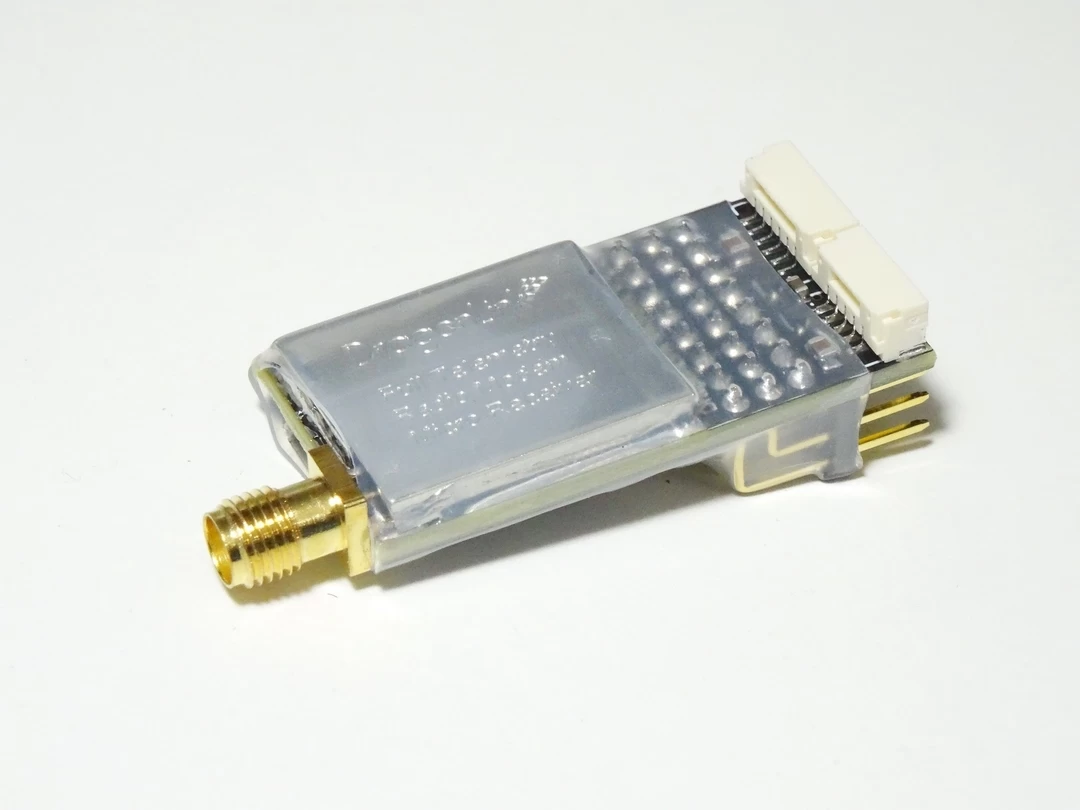

The new Dragon Link 12 channel Micro receiver.

This is no ordinary Micro Receiver, it is the best performing, most advanced RC receiver ever made.   The new Micro receiver is a MAJOR improvement over the V2 receiver, with better range, better resistance to interference, S-Bus for copters, logging of many parameters, spectrum analyzer, emergency plane locater beacon mode, and many other features you do not even know you need yet.  The other great thing about this receiver is that each pin has an assignable output to anything you want, so you can use 4 channels through PPM or S-Bus to your OSD or flight controllers, and then assign the remaining pins to higher channels.  This way you can use all 12 channels even though this receiver has only 7 servo connectors.   For complete information on this new receiver, download the .PDF manual and configuration software at www.DragonLinkRC.com/V2/Download

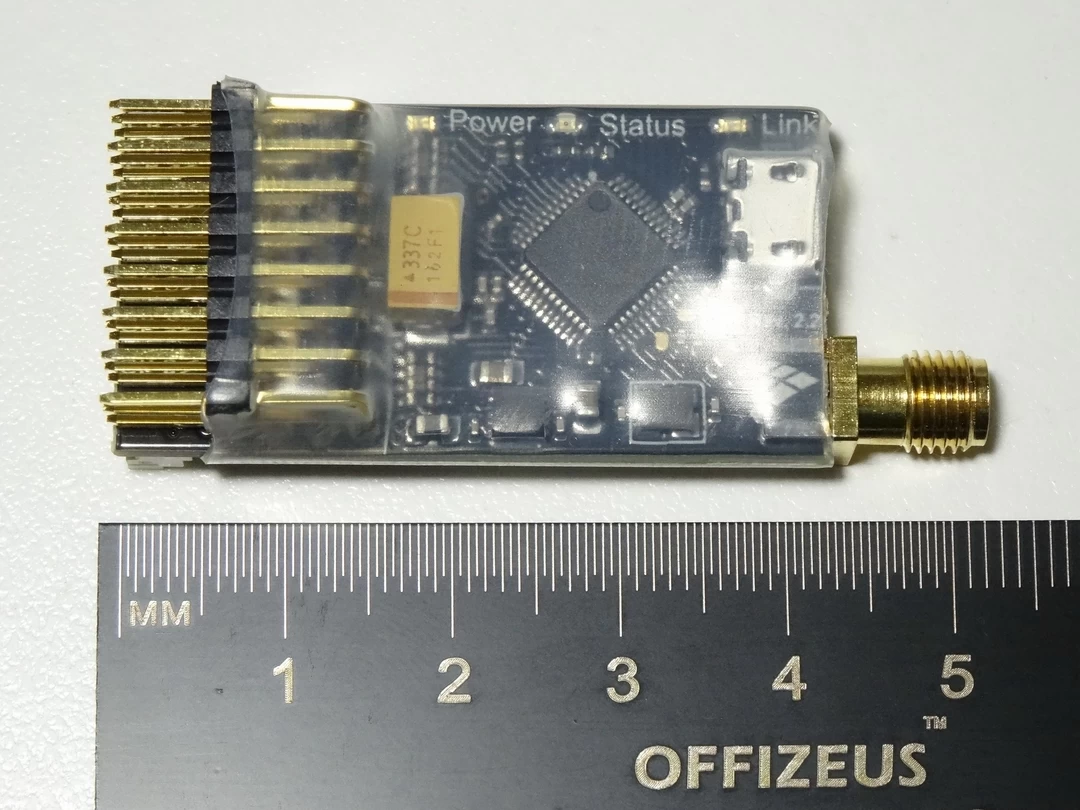

Perfect for Multirotor and small planes, this reciever only weighs 10 grams and measures 5.5 X 2.2 X 1.2 Centimeters.  We spared no expense on these receivers, and designed them to be the best performing, and most adaptable RC receivers ever made.  Built in Micro USB connector allows this receiver to be connected directly to a computer without the need for an updater device.

This is a receiver for the newest Dragonlink version 2 system with upgradeable firmware, improved electronics (still backwards compatible with older systems when using correct firmware), plug and play with Futaba radios using mini square trainer plugs.

Forum thread

Manufacturer page

Includes:

• 1 Long Range Receiver with 12″ (30cm) Antenna

---

Notice: The use and operation of this product in the USA and many other countries requires an amateur/ham radio license, and some countries may forbid its use entirely. It is the responsibility of the purchaser to ensure that the use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them.  Ready Made RC, LLC cannot be held responsible for your actions if you purchase and/or use this product in violation of your government’s regulations.

---
