DJI Zenmuse H20T Radiometric Thermal Camera For Matrice 300 RTK

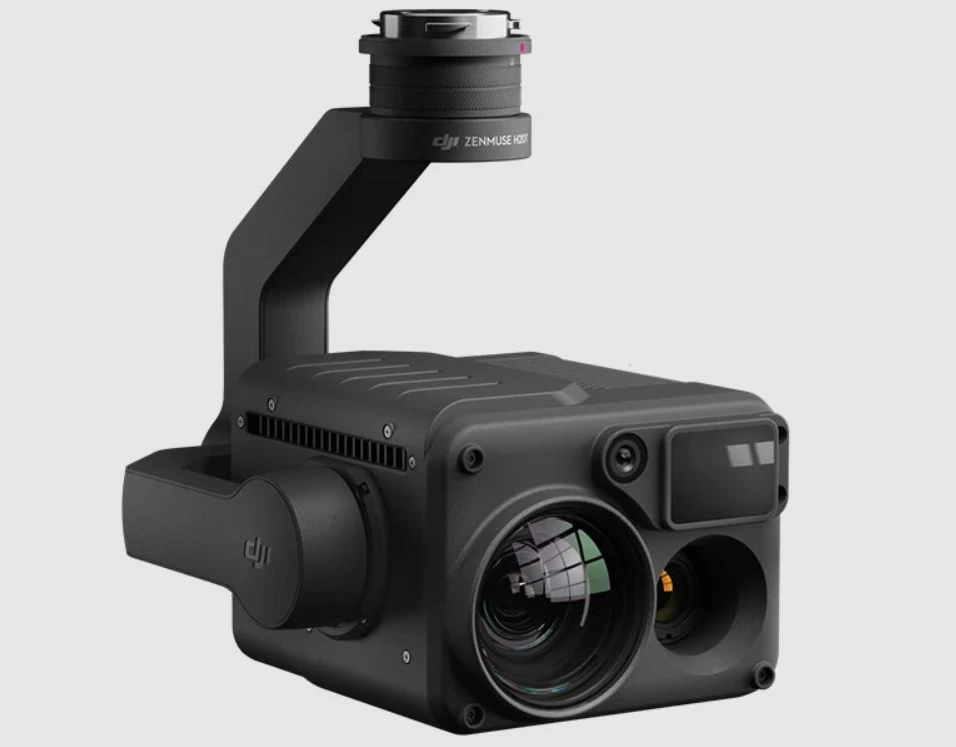

DJI Zenmuse H20T Camera

“H” For Hybrid
Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications. Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

All The Sensors You Need – In One
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

Note: This ships separately from other products and is not eligible for the 2:30 EST same day shipping cutoff policy. Will typically ship 1-2 business days of order being placed. Can only ship to US addresses, and unless you are a customer with a long history of working with us we ask that you purchase using PayPal or wire transfer.

H20 – Quad-Sensor Solution
• 20 MP Zoom Camera
• 12 MP Wide Camera
• 1200 m LRF
• 640×512 px Radiometric Thermal Camera

Powerful Zoom Camera
   • 23× Hybrid Optical Zoom, 200× Max Zoom
   • 20 MP 1/1.7” CMOS Sensor
   • Video Resolution: 4K/30fps

Everything in View – Wide Camera
   • Equivalent Focal Length: 24mm, DFOV: 82.9°
   • 12 MP 1/2.3” CMOS Sensor

Precise Distance Data – Laser Rangefinder
   • Range: 3 m – 1200 m
   • Accuracy: ± (0.2 m + D×0.15%)

See the Unseen – Radiometric Thermal Camera
   • DFOV: 40.6°
   • Resolution: 640×512, Frame Rate: 30fps
   • Thermal Sensitivity: = [email protected] (NEDT)

Multi-Sensor Payloads
See the full picture without missing any details wherever, whenever your mission takes place.

Seamless User Interface
A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

Intelligent Ways to Collect Data

• AI Spot-Check
  Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

• High-Res Grid Photo
  Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

• PinPoint
  A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track
Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
