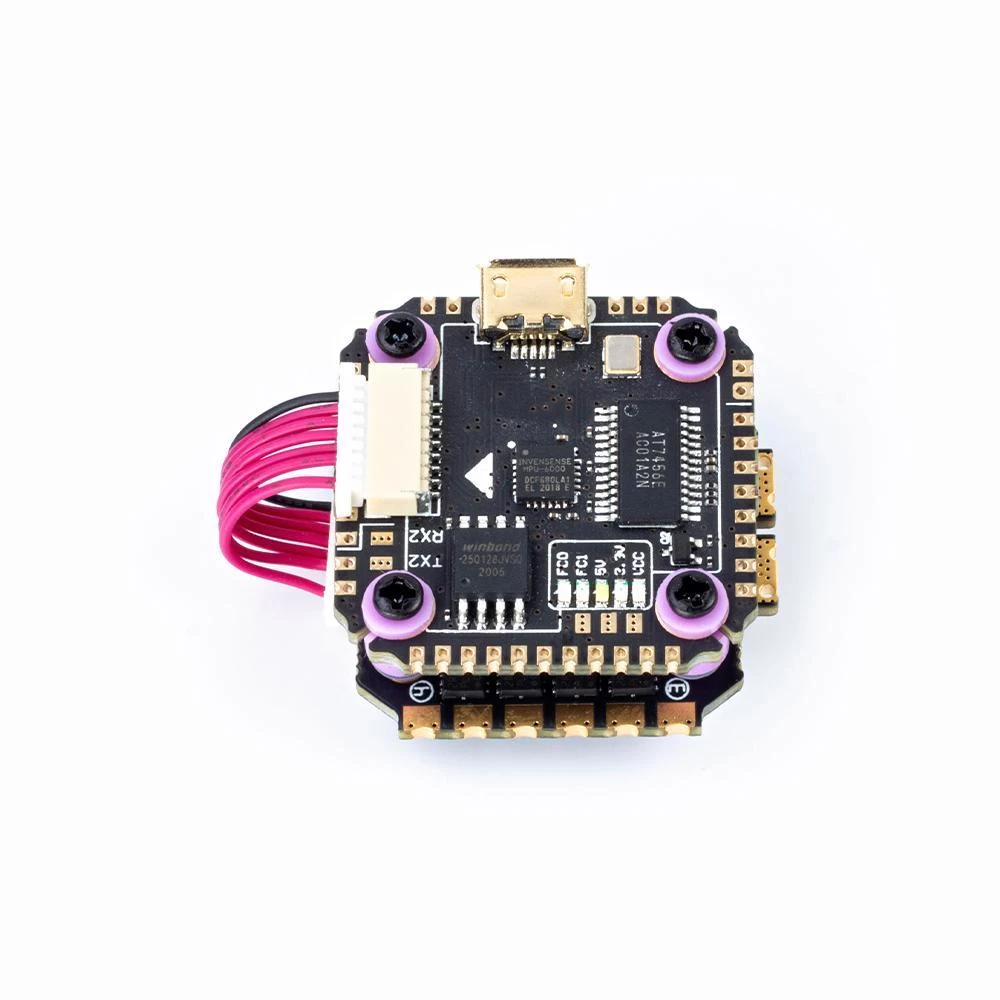

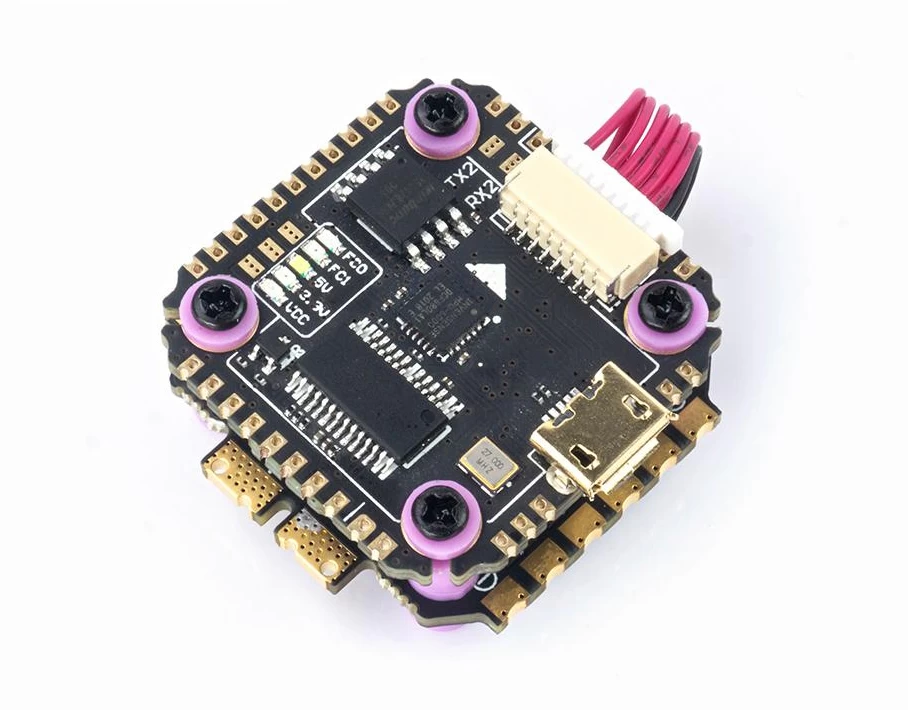

Diatone Mamba F722 Mini 20×20 Stack

Note：Because STM32F722 heat large ， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.



FC Specifications



MCU: 216MHz STM32F722RET6 32BIT

IMU: MPU6000

Baro: No

OSD: BF OSD

Blacbox: 16M Flash Memory

Uarts: 6Set

ESC Soft: Dshot300/600/1200

ESC Telemetry: RX2

LED: Blue&Orange for FC Status,,White 5V,Red 3.3V



WS2812 LED Control: BF LED Control

Smartaudio: Yes

RSSI: Yes

Buzz: Yes





Input: 2~6S Lipo (8.4~25V)

VTS Protection: Yes

BEC: 5V 2A (Max 3A)

ESC Specifications

INPUT VOLTAGE: 2~6S Lipo (7.4V~25V)

CONTINUE CURRENT: 30A×4

BURST CURRENT: 35A (10S)

BEC: NO SOFT: Dshot300/600/1200

MOUNTING: 20mm/M2

Supply : Panasonic High Frequency 470uF/35V



FC Firmware

BetaFlight

Target: MAMBA F722 （uploading…..）

Download Link



Mounting: 20×20mm,Φ2

Dimensions: 30×36.5×13.5mm

Weight: 11g





Including

1×FC MAMBA F722MINI Stack
